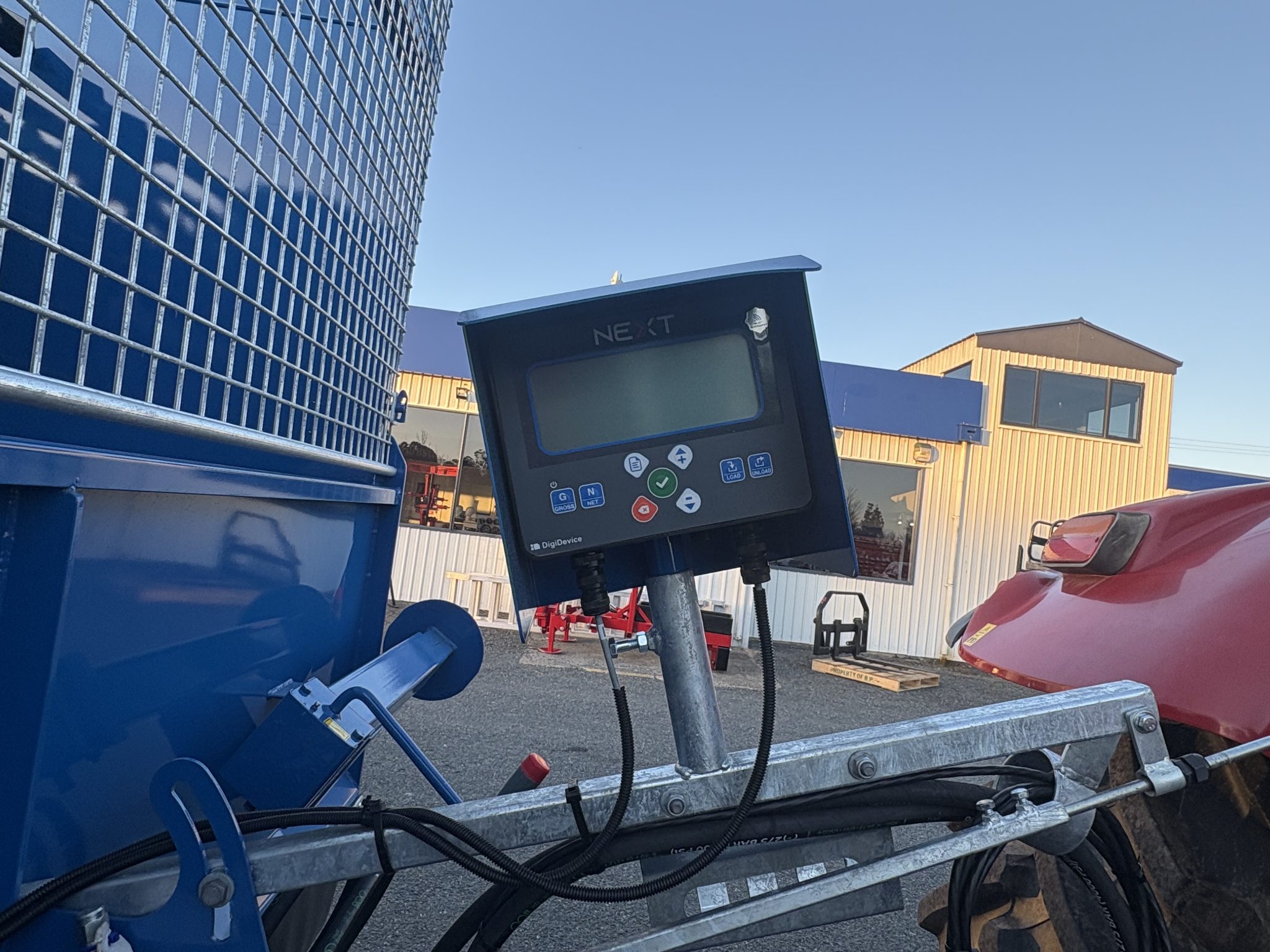

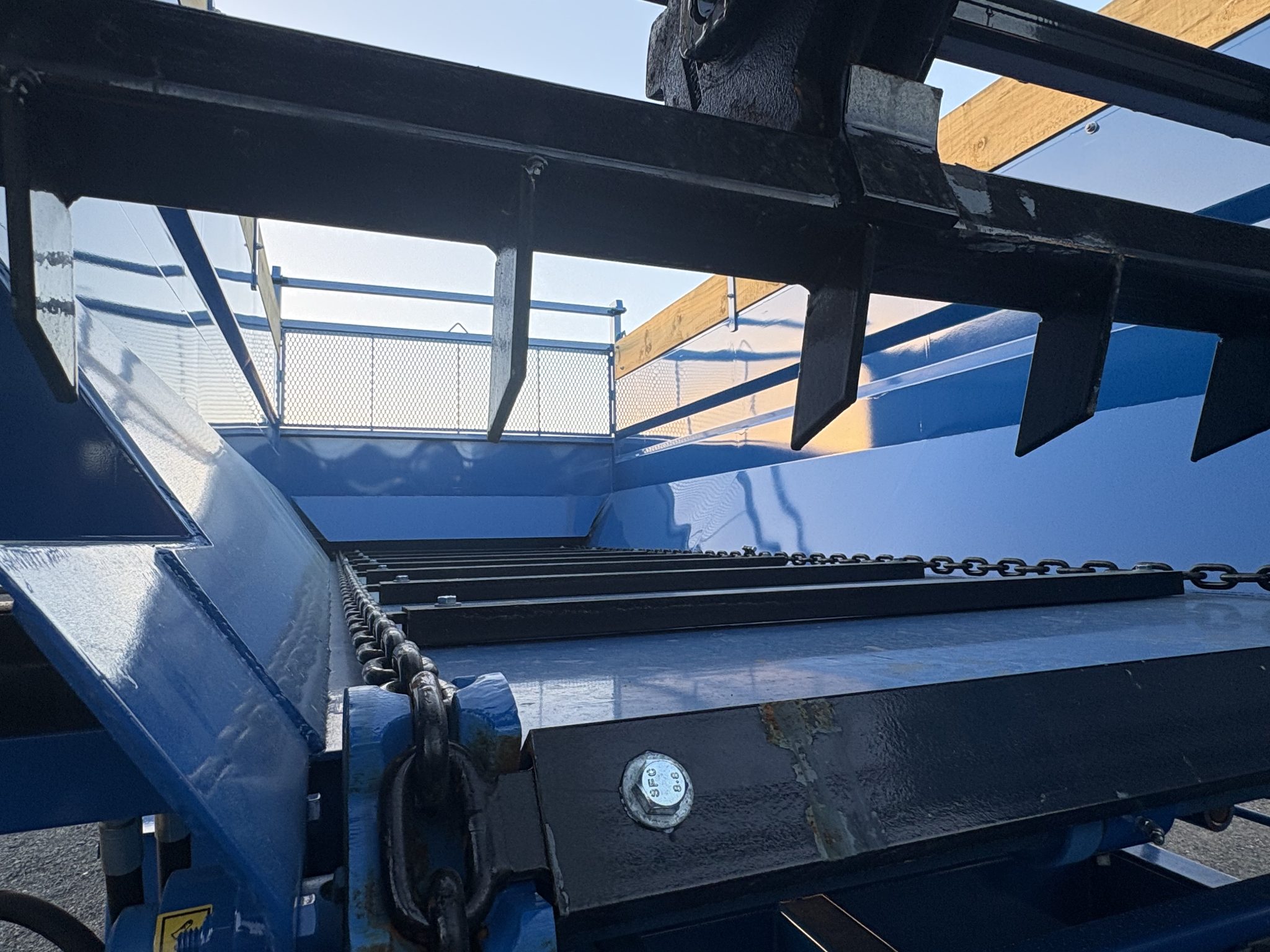

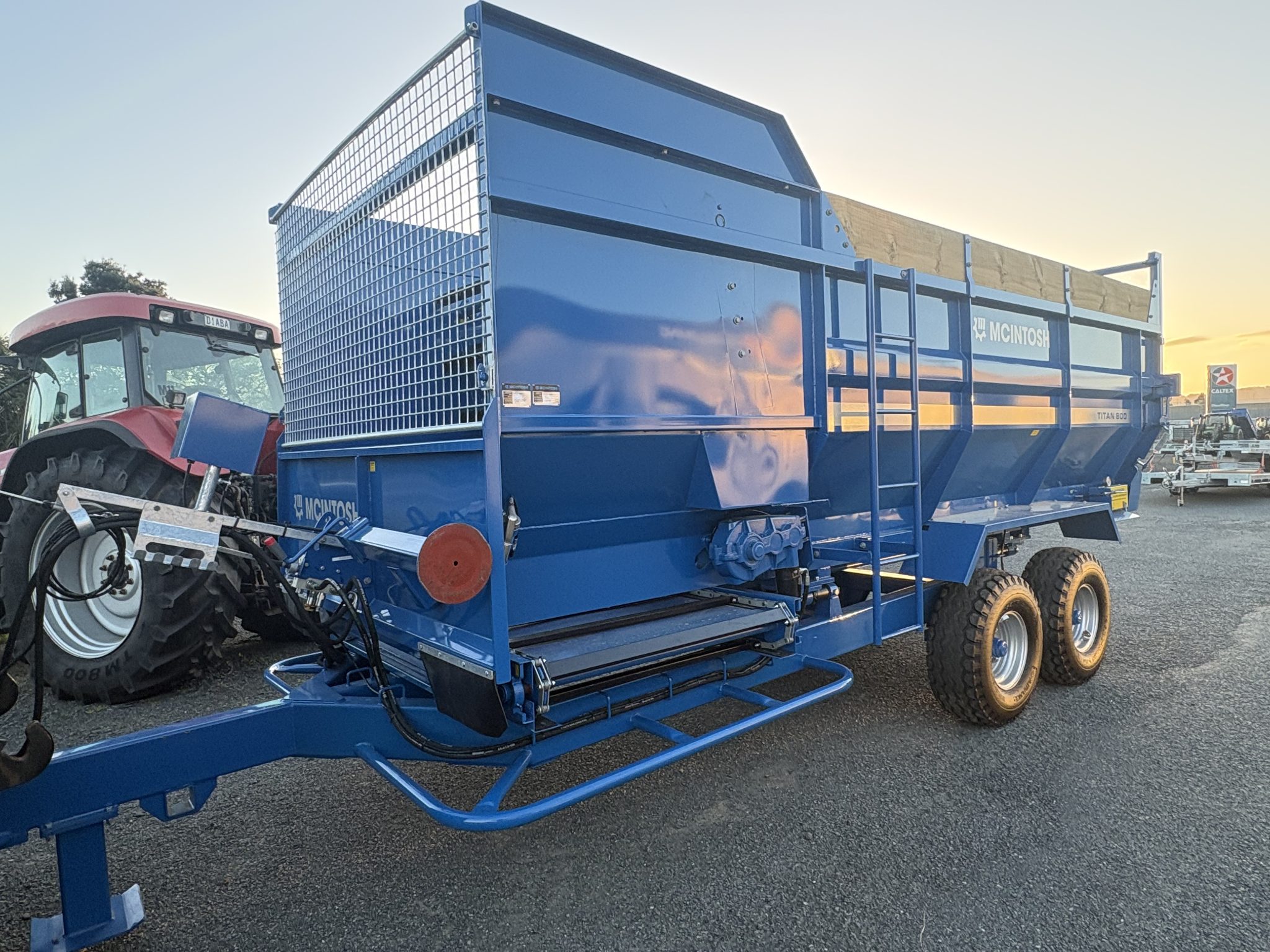

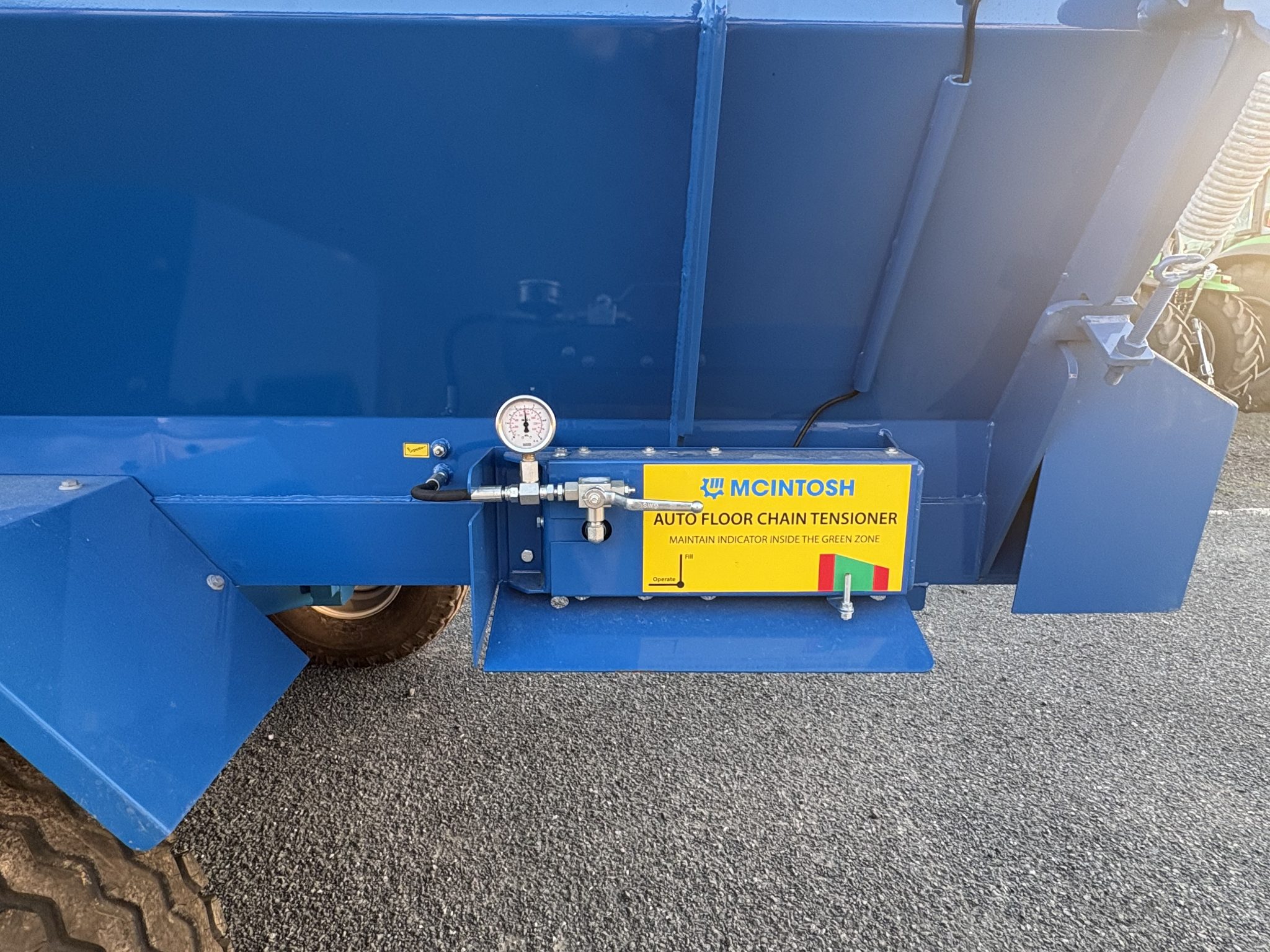

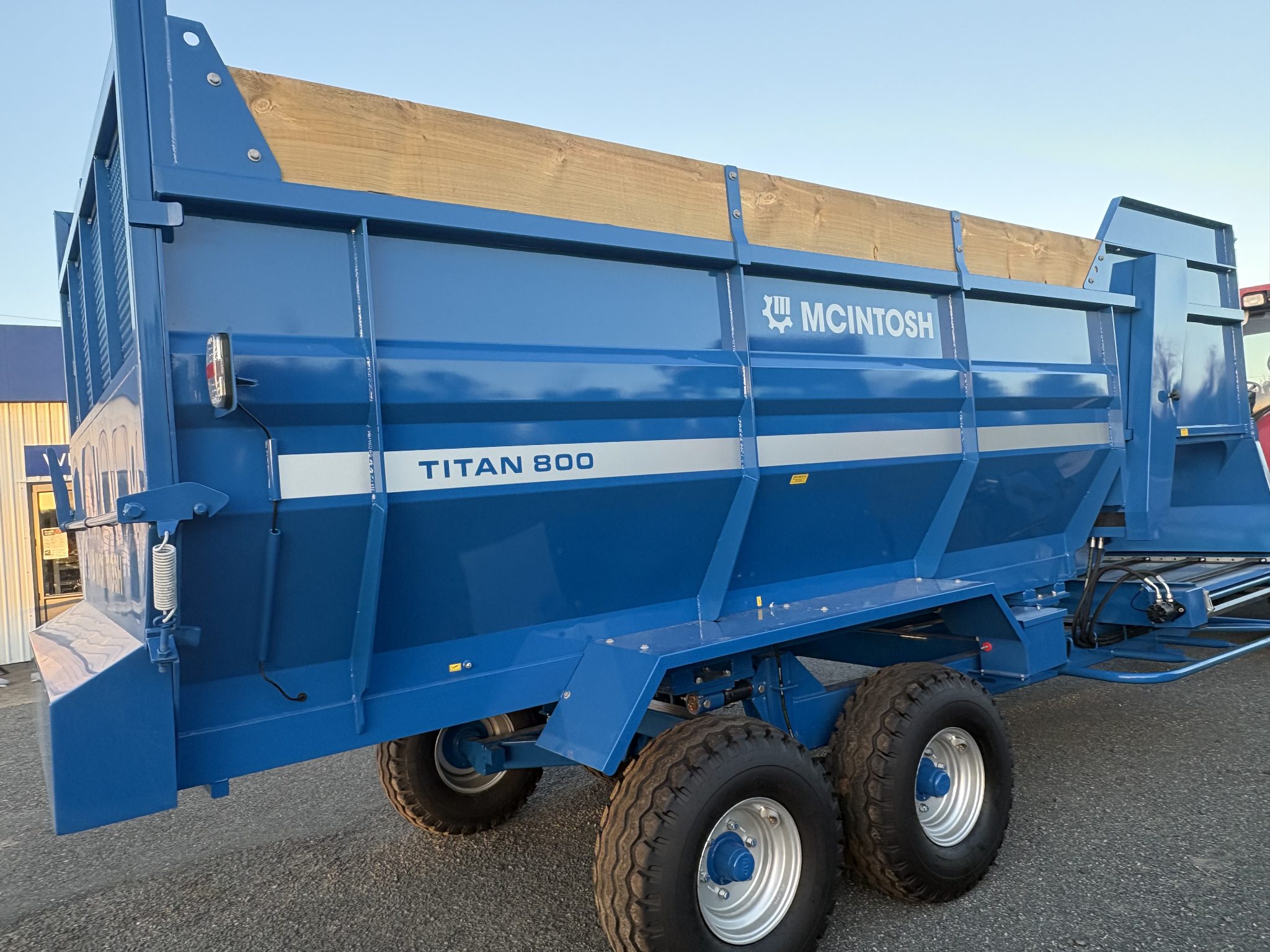

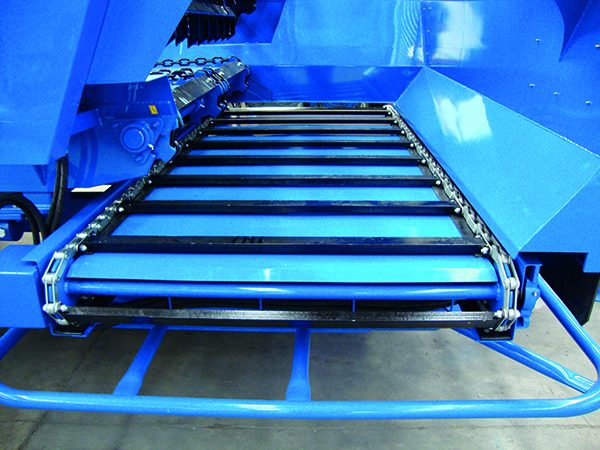

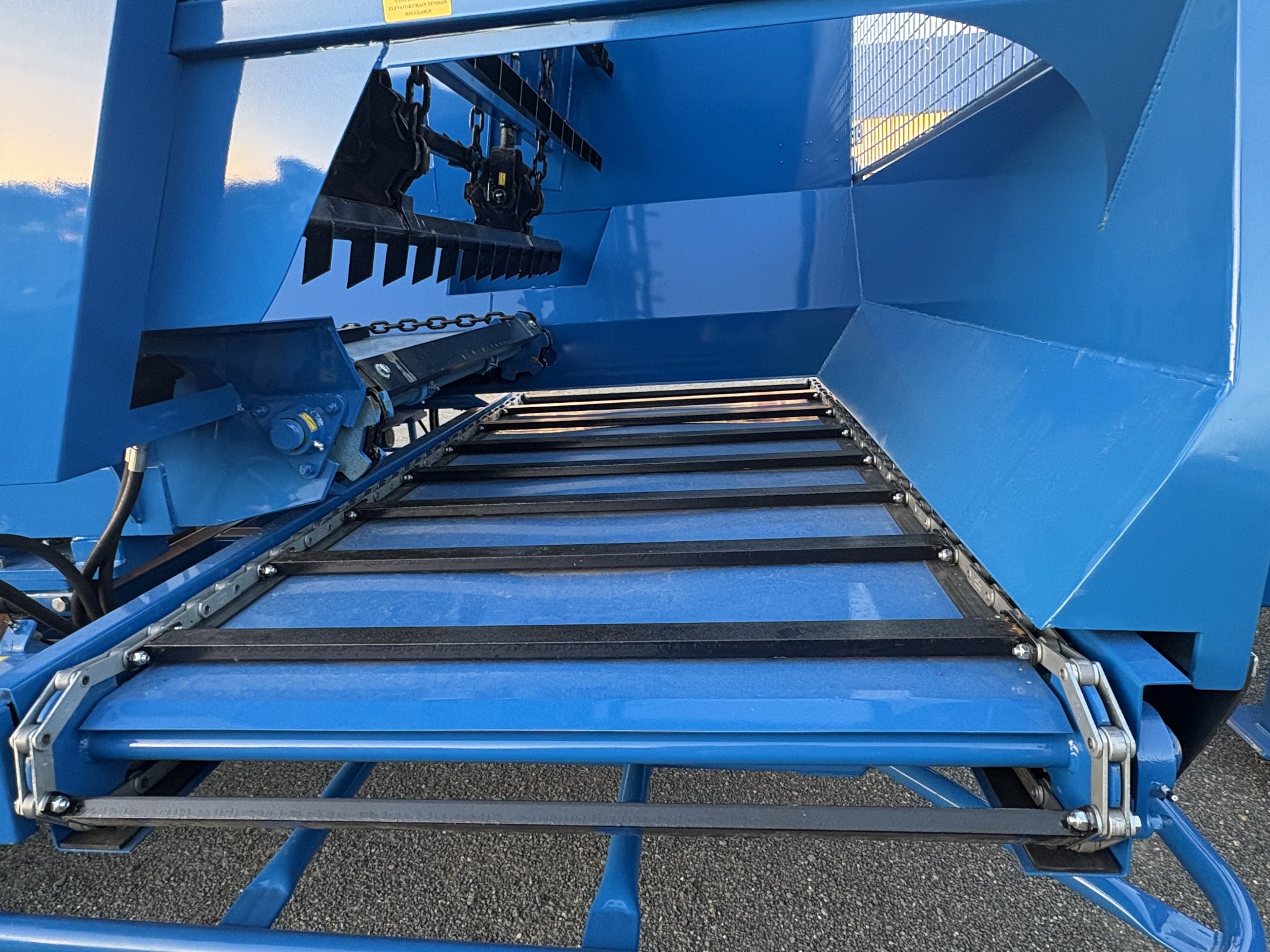

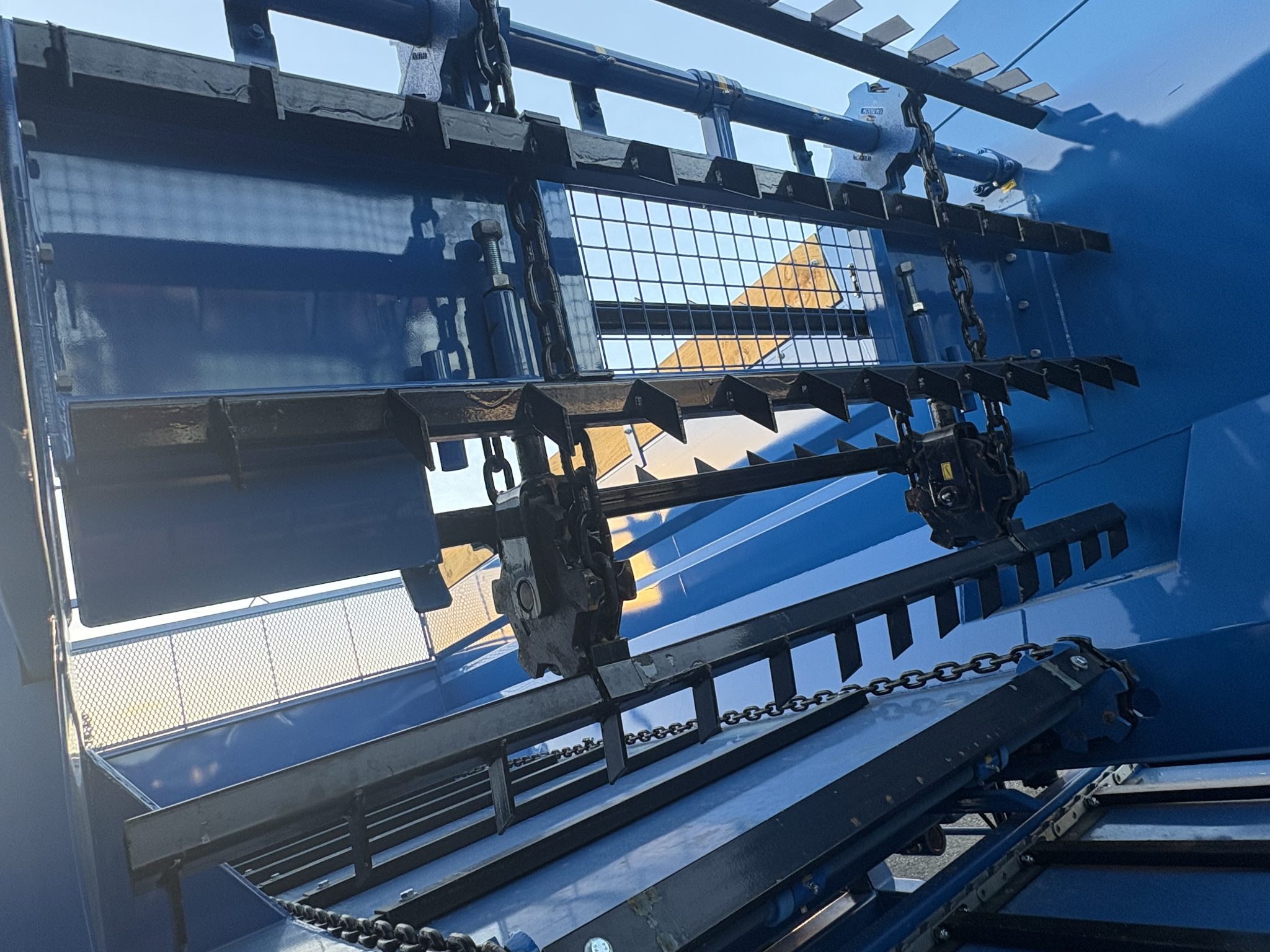

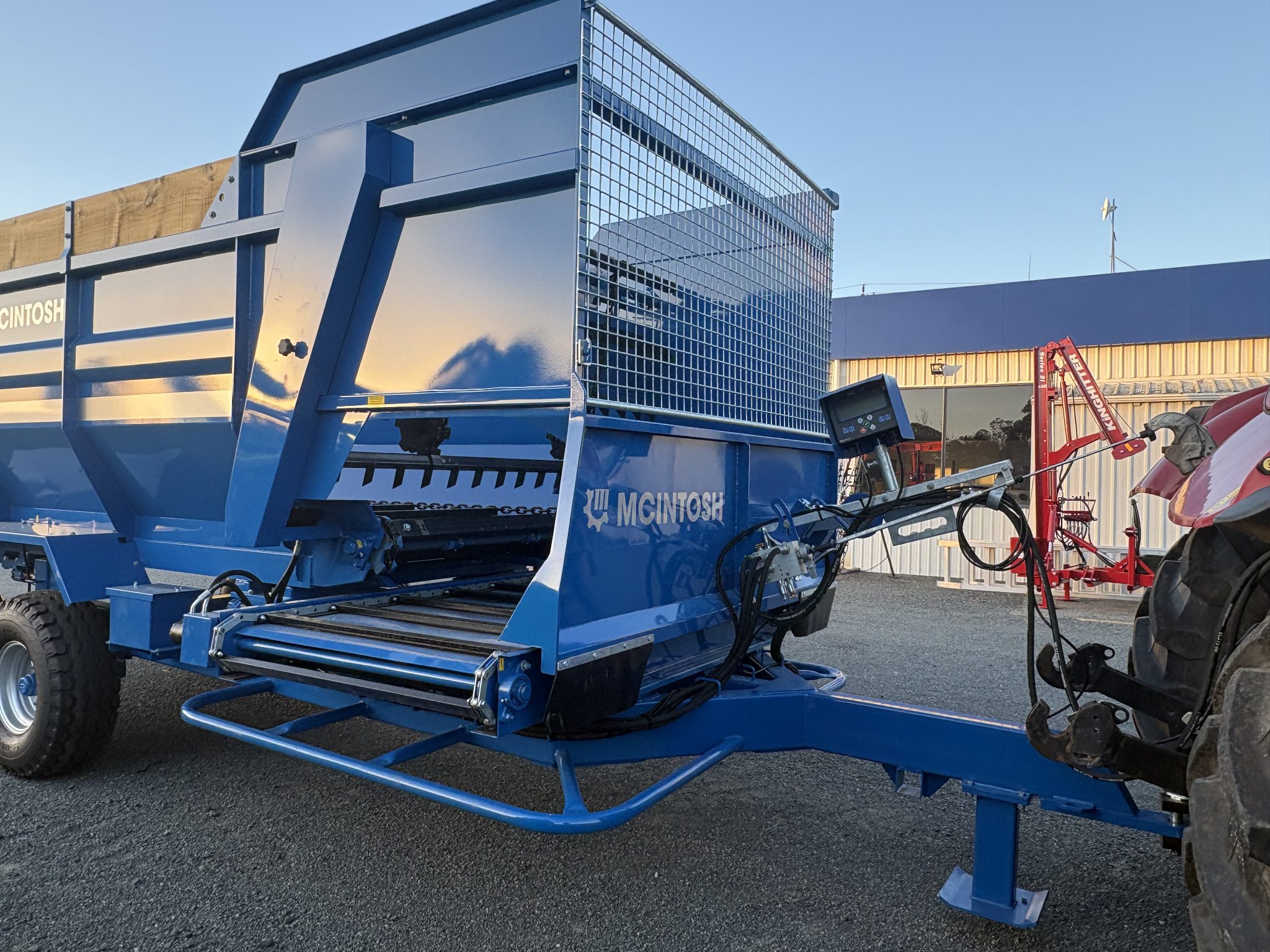

The Titan Wagon features heavy duty 13mm floor and elevator chains and larger diameter sprockets which are designed to handle large and heavier volumes of material with ease. Larger floor and elevator shafts and bigger gearboxes are all designed to give trouble free operation and extended service life, with less time needed adjusting chains. With chain conveyor/ loadcells 12.4m3 with a level load 75 x 40 channel floor slats Gearbox on floor drive with 50mm high tensile floor shaft 2 x 13mm floor chains with a breaking point is 23 Tonne 2 elevator chains 3mm pressed steel sides 5mm steel floor Optional chain conveyor fitted Bolt on floor slats, elevator slats welded Bolt on mudguards Cast iron bearing bronze bushes for longer life Fully welded construction Rear idler remote grease lines LED rear lights Grease hose from walking beam to mudguard High quality paint system Ladder Dummy load cells 140mm diameter conveyor roller Plate towing eye 32mm thick 40mm eye Proven vertical elevator system with adjustable angle Tandem oscillating axle with 70mm 6 stud hubs Tracking strips on cross conveyor Tyre size 12.5/80-15.3 6 stud Extras included Auto adjusting floor chains Chain conveyor fitted load cells
