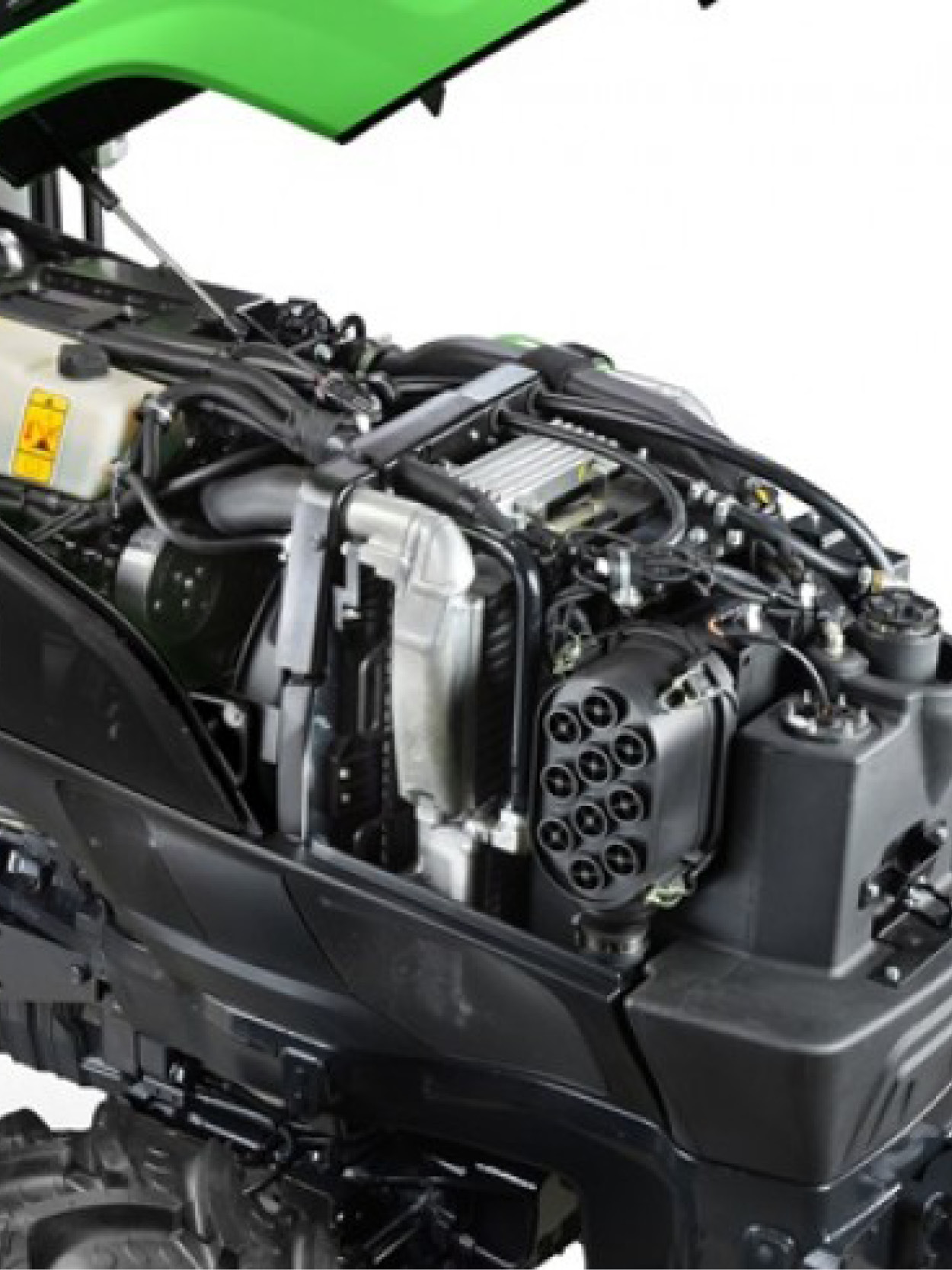

The advanced FARMotion engines were designed specifically for agricultural use, delivering strong torque, maximum power, and low fuel consumption. Customers can choose 3-cylinder or 4-cylinder common rail turbo diesel engines from 88 to 113 HP, featuring charge air cooling, DOC exhaust treatment, and a visco fan.

These engines are built for demanding specialist tractor work while remaining highly fuel efficient. Their compact design allows a narrow bonnet for excellent forward visibility and manoeuvrability. Maximum power is achieved at 2200 RPM.

Maintenance is simplified with compact components, a two-stage PowerCore air filter, easy-clean aluminium radiator, and an 85 L fuel tank for long working hours.

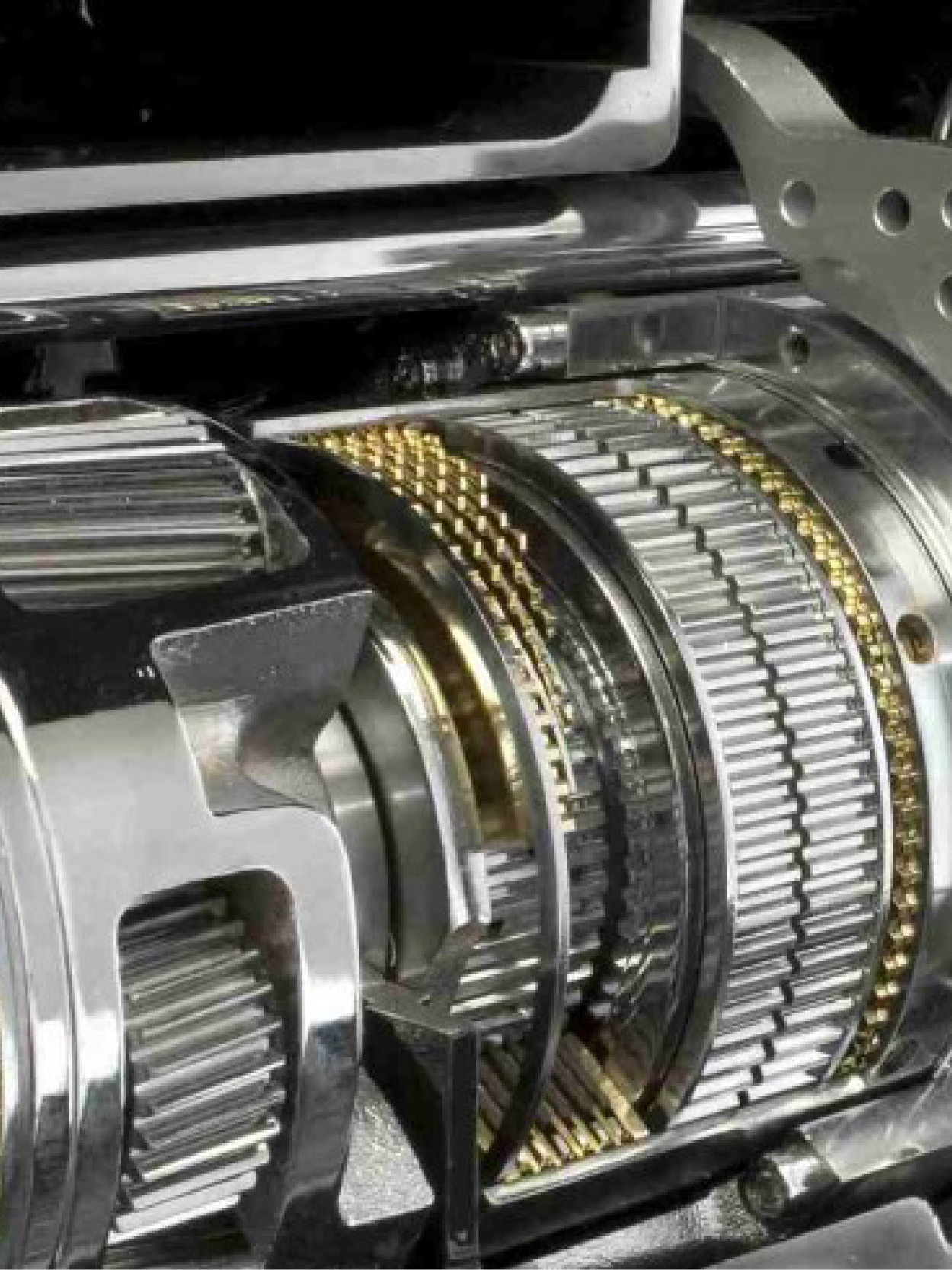

The advanced TTV transmission ensures efficient power delivery on flat ground and slopes, combining mechanical efficiency with hydrostatic comfort. Power is transferred continuously with low losses, helping reduce fuel use. Top speed of 40 km/h is reached at an economical 1650 RPM.

Operation is simple and intuitive. The driver selects the desired speed, and the tractor accelerates smoothly while engine and transmission automatically synchronise for maximum efficiency under load.

Cruise control allows working speeds to be saved and recalled at the push of a button. The ergonomic MaxCom joystick places key controls at hand, with programmable buttons and selectable ECO2 or Power modes.

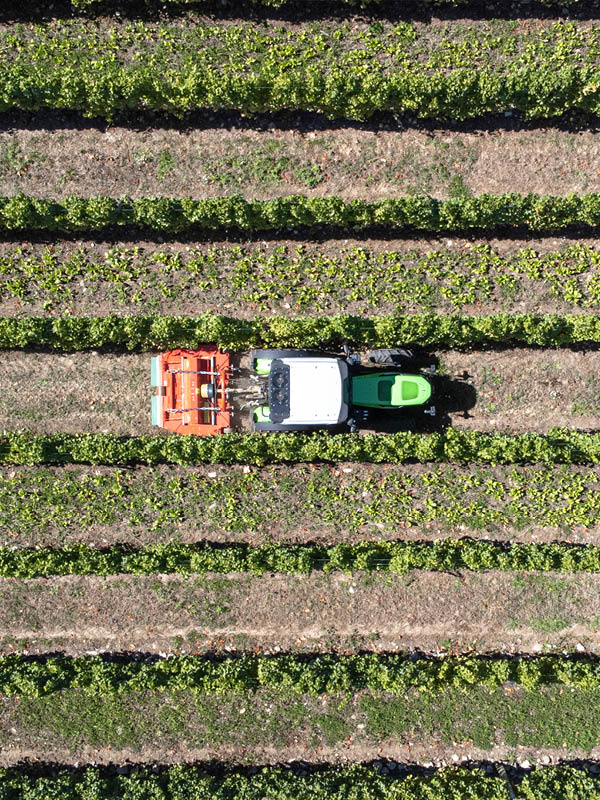

The new DEUTZ-FAHR Series 5DV/DS/DF TTV also shows great versatility in the PTO equipment. As a standard, it is equipped with three PTO speeds: 540 rpm, 540ECO and 1,000 rpm with modulated electronic activation. Automatic activation and deactivation of the PTO depending on the attachment position is also a standard feature. A synchronised version, a detachable PTO stub and a front PTO with 1,000 rpm are available as optional extras.

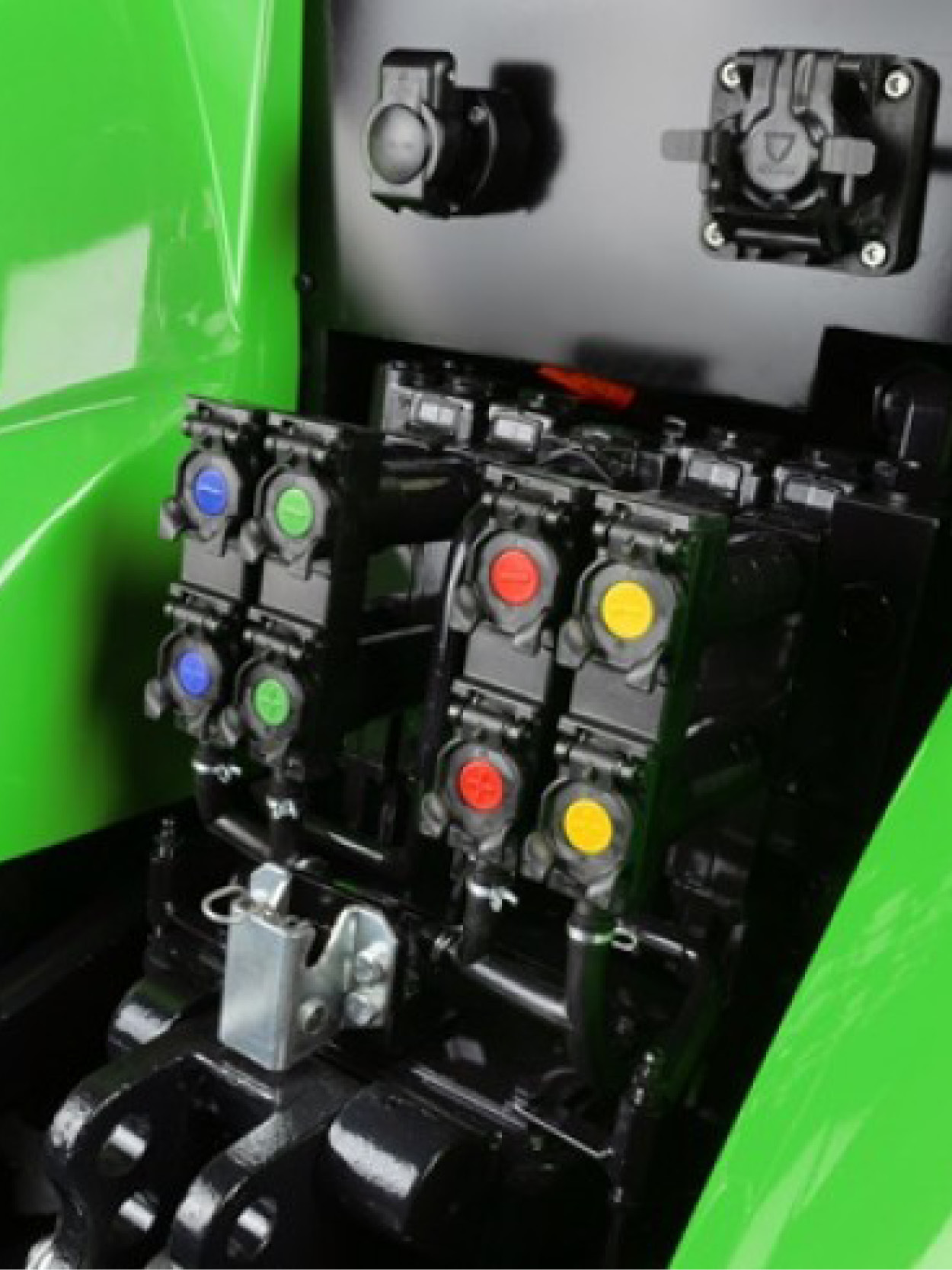

Modern vineyard and orchard implements demand higher hydraulic power and more complex control systems. DEUTZ-FAHR has fully redesigned the hydraulic system of the 5DV, DS, and DF TTV to meet these needs.

Up to five rear electro-hydraulic double-acting valves with flow and timer control can be fitted, along with four front double-acting valves with flow control. Additional duplicated rear valve functions are also available.

The electronically controlled rear linkage lifts 2600 kg on 5DV and DS models, and 3800 kg on the 5DF. An optional front linkage lifts 1500 kg.

All configurations use a 100 l/min load sensing pump, supported by a separate 42 l/min steering pump.

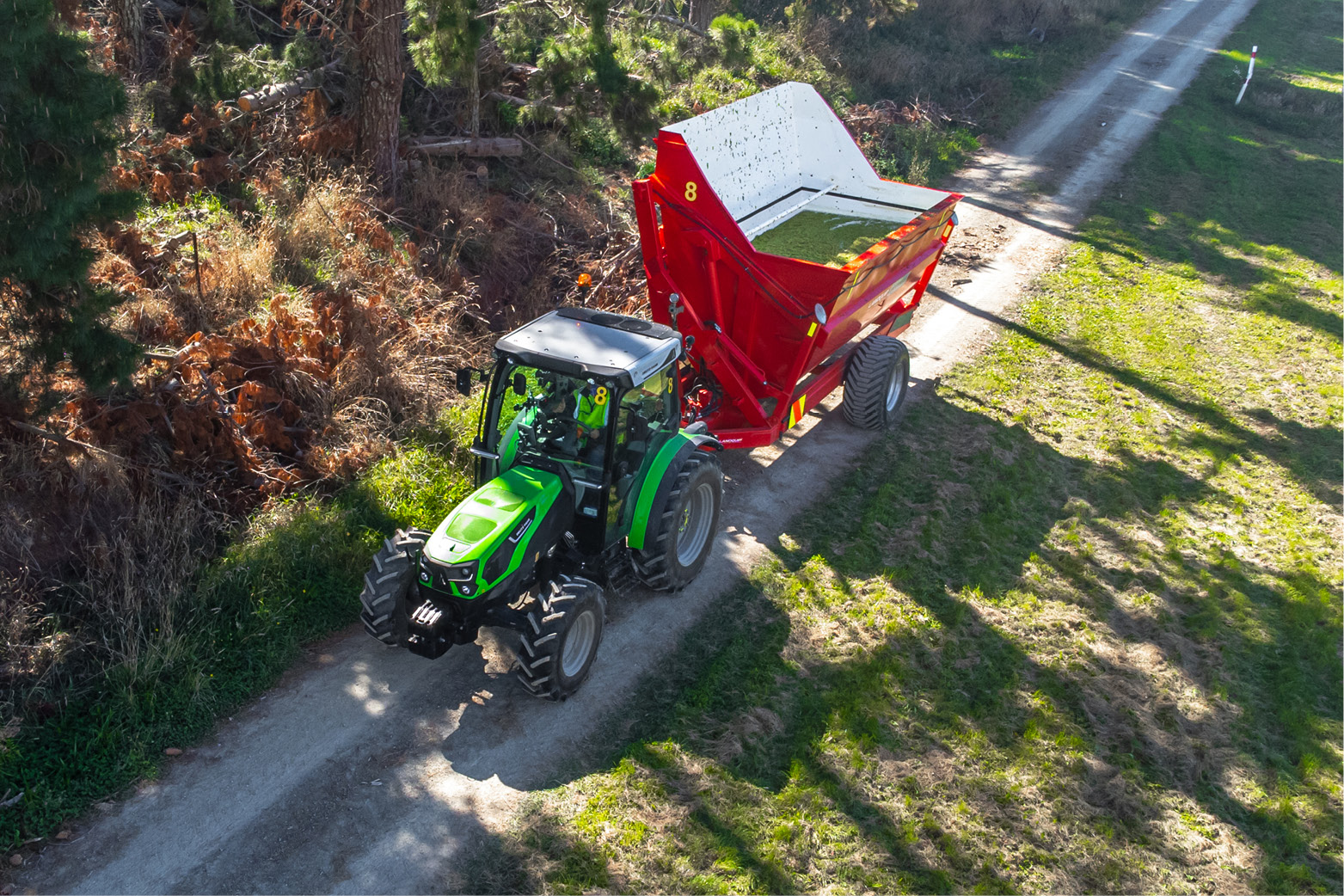

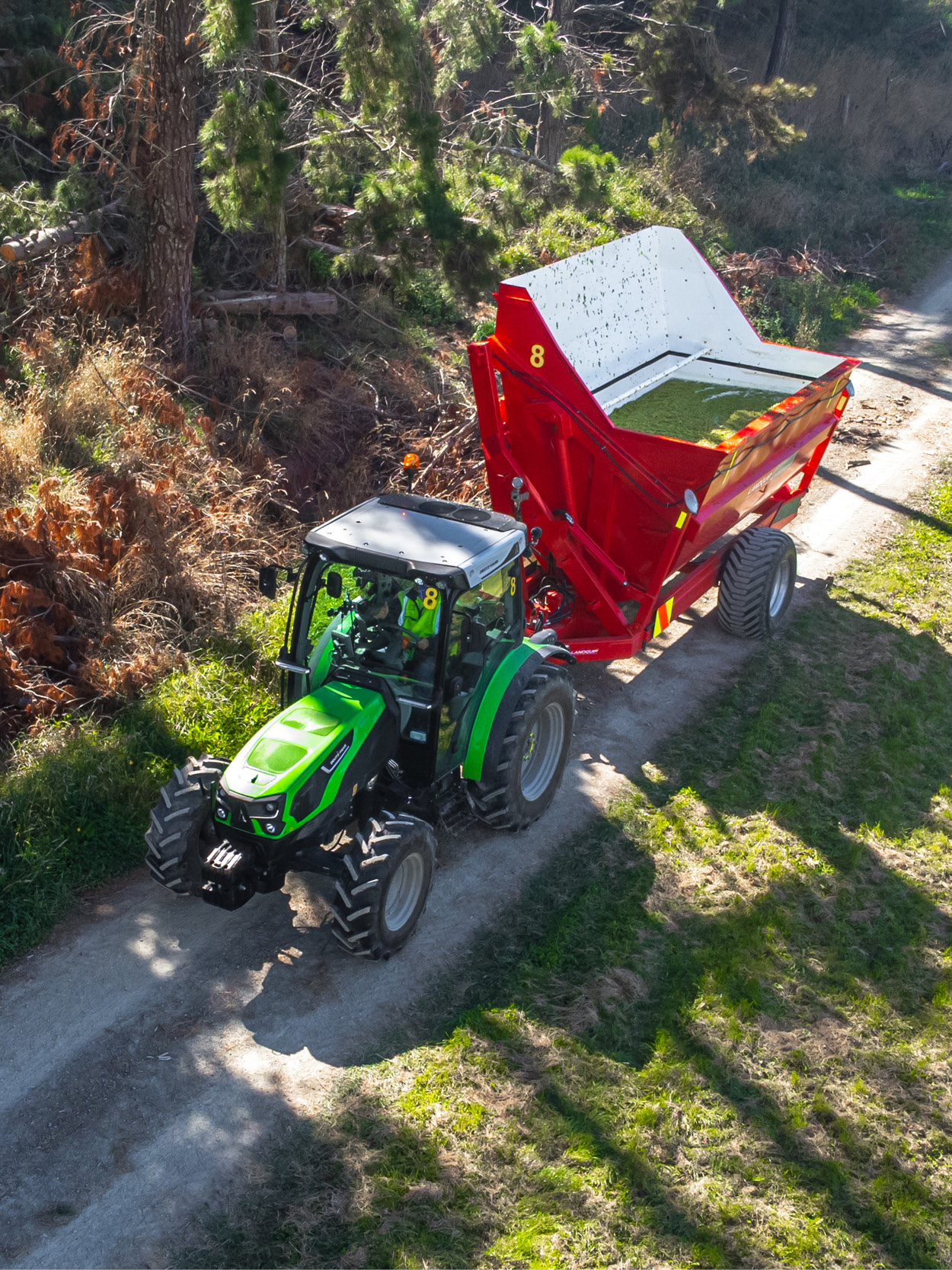

Deutz_Fahr 5D TTV tractors feature premium axle, brake, and safety systems, including all-wheel braking for stronger stopping performance, especially on corners and slopes. The SDD function halves steering wheel turns for faster headland manoeuvres, then automatically deactivates at higher speeds for better road precision.

Alongside a conventional front axle, an optional double wishbone independent suspension system improves comfort, traction, grip, and stability in field and road conditions.

Adaptive electrohydraulic control includes self-levelling, Anti-Dive, Anti-Roll, and traction management for precise work. Suspension height can be adjusted from the cab, while electrohydraulic 4WD and differential lock are standard.

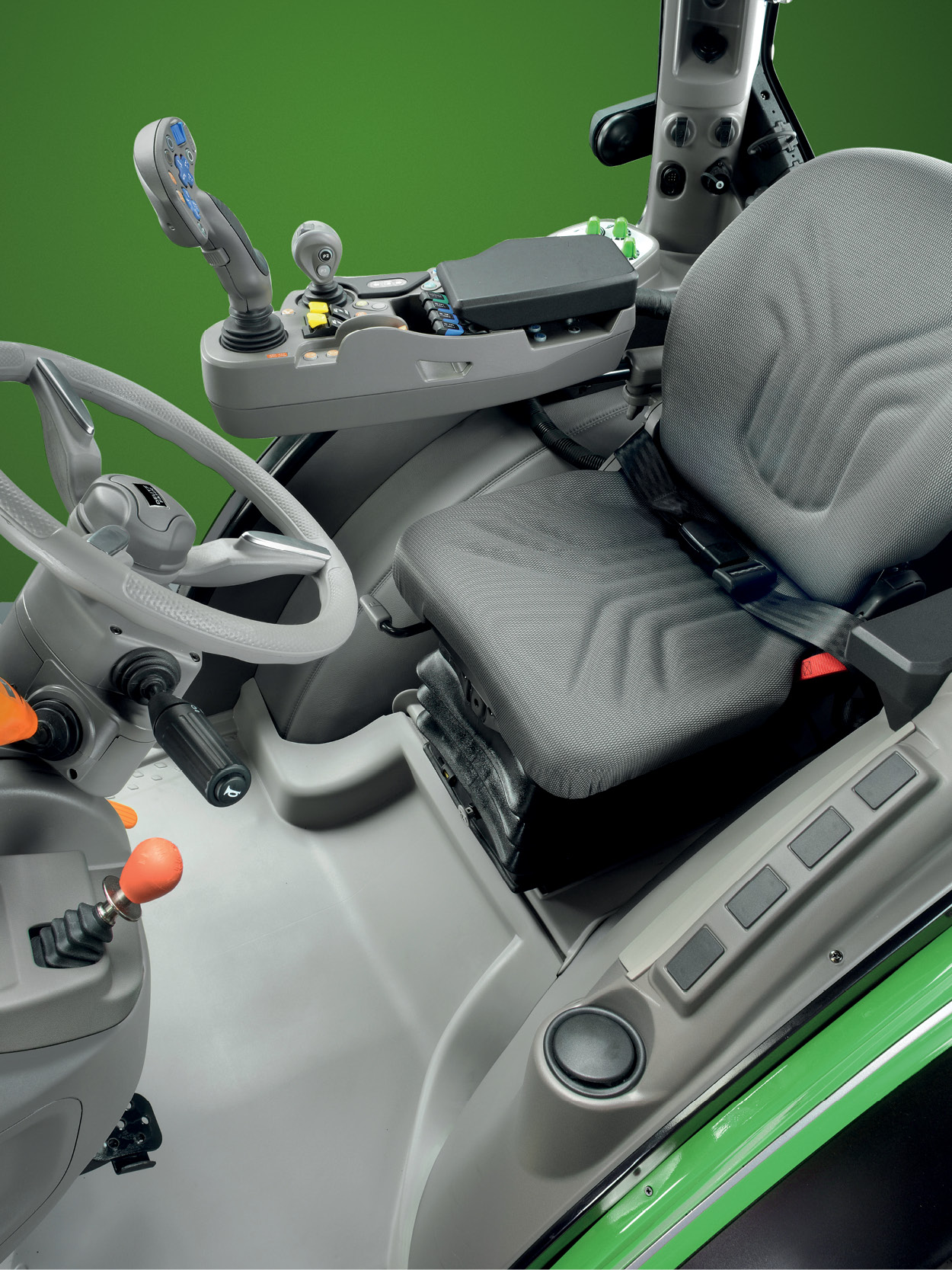

Spacious inside and compact outside, the 4-post cab of the 5DV, DS, and DF TTV Series is designed for comfort and visibility in narrow rows. Rounded frame profiles improve all-round vision and are gentle on vegetation. The low-mounted TTV transmission creates a flat floor for easier entry, more legroom, and better pedal positioning.

An adjustable steering wheel and column-mounted dashboard ensure clear visibility for all operators. The 5-inch InfoCenterPro display provides real-time operating data and control functions.

An air-suspended seat and optional multimedia radio improve comfort, while the panoramic windscreen offers excellent visibility. Optional Cat.4 filtration provides certified protection during spraying work.
