Deutz-Fahr 6 Series TTV tractors are built for New Zealand farmers needing premium performance, efficiency and operator comfort in demanding applications. With strong six-cylinder power, high torque and proven German engineering, they deliver reliable performance with low operating costs. The smooth TTV continuously variable transmission provides stepless speed control for precise operation and reduced fatigue. Comfortable, efficient and easy to operate, the 6 Series TTV is ideal for cultivation, transport and high-output NZ farming.
2 Models Horsepower
6190 TTV Warrior
192
6230 TTV Warrior
230
Stepless TTV Transmission Efficiency
Fuel efficient engine
160 l/min Load Sensing pump

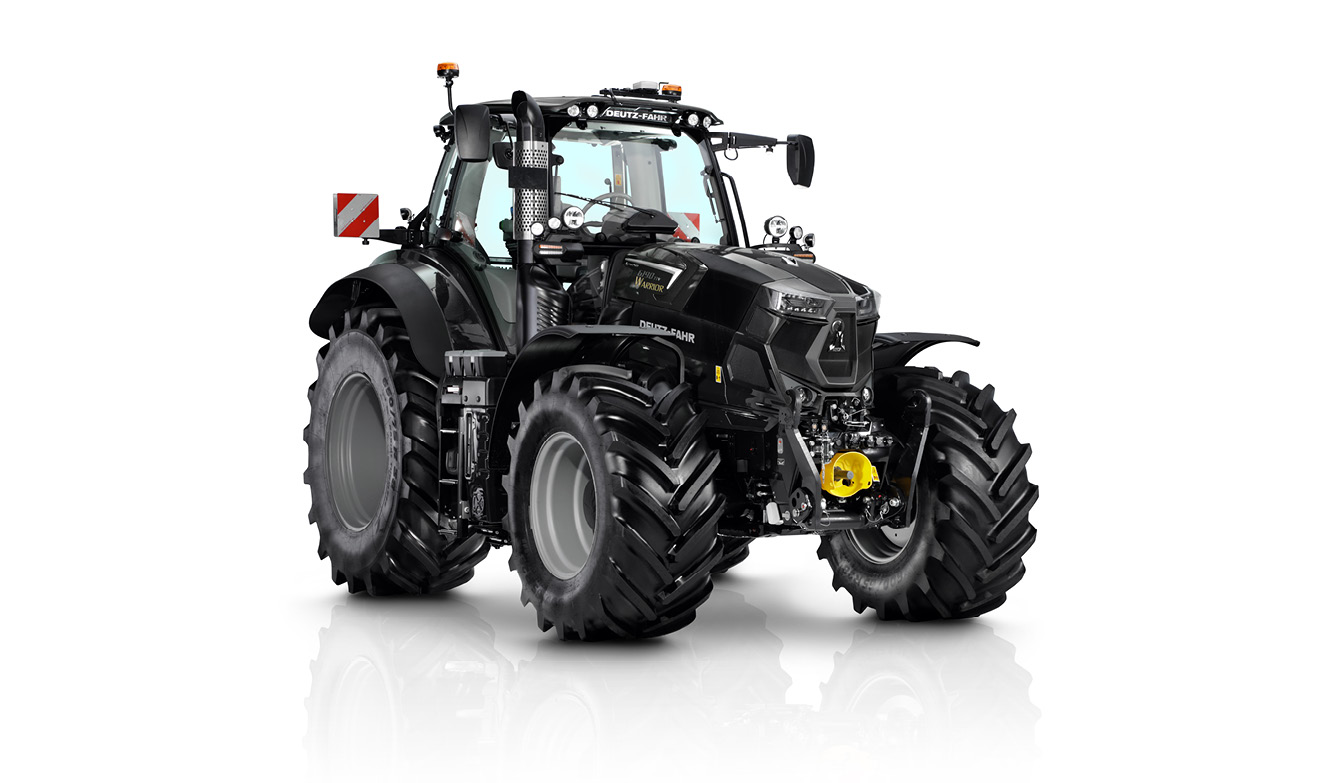

Deutz-Fahr 6 Pro-Series TTV Warrior

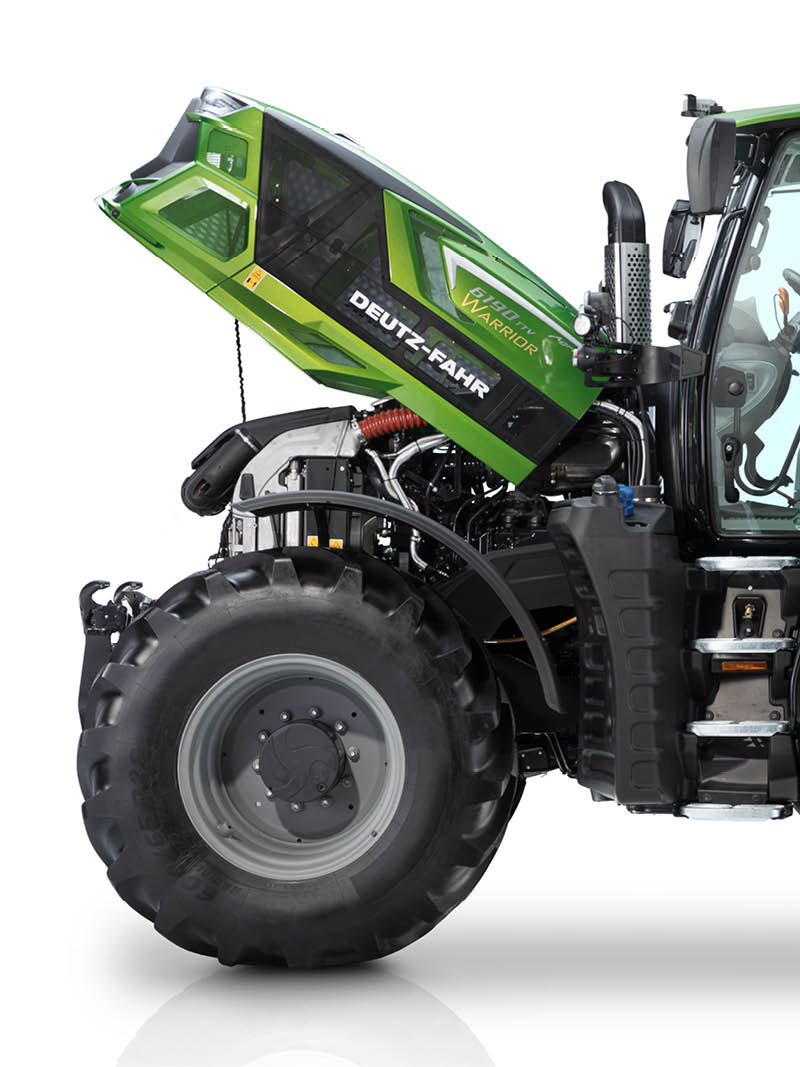

The Deutz-Fahr 6 Series, with power outputs from 170 hp to 230 hp and up to 970 Nm of torque, delivers outstanding reliability, comfort, and low operating costs for demanding farming applications. Built in Germany, the range is powered by the latest Deutz TCD 6.1 L 6-cylinder engines, meeting Stage IIIA emissions standards without the need for AdBlue or DPF systems.

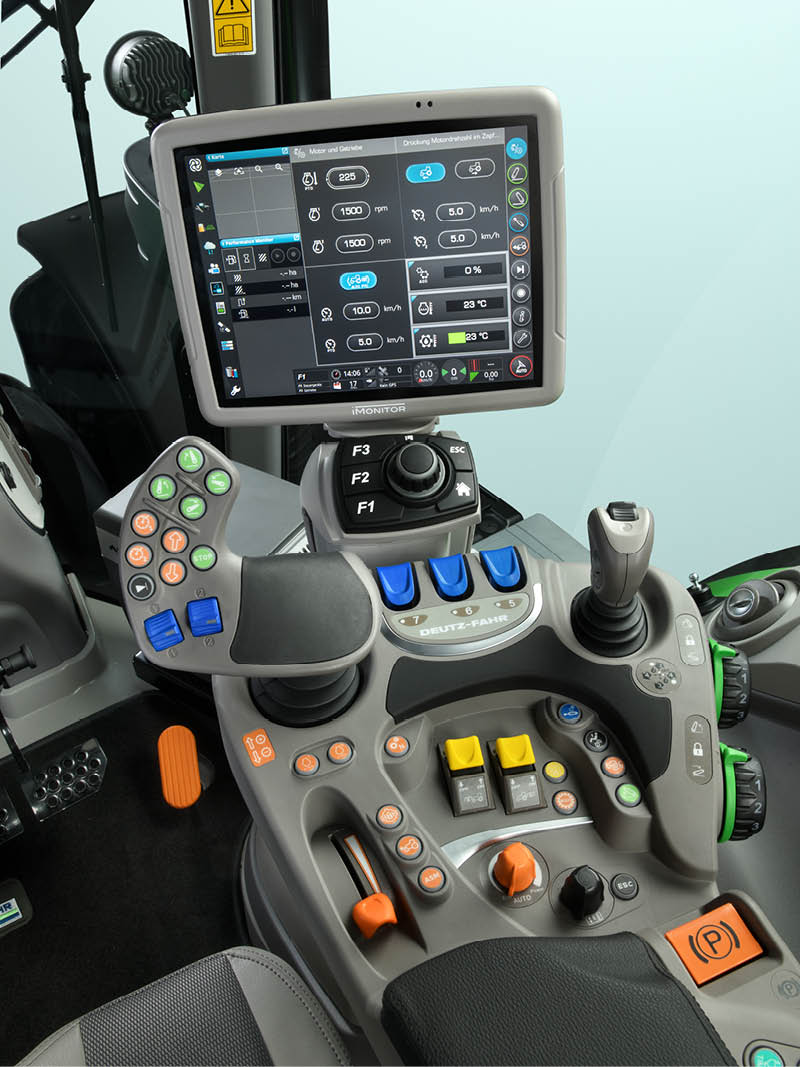

The TTV continuously variable transmission, available on models such as the 6190 and 6230, provides smooth, stepless speed control for maximum efficiency and operator comfort. Designed and built in-house, the TTV transmission is ideal for professional users seeking precise control, reduced operator fatigue, and optimal performance across a wide range of applications.

Talk to an Expert
Video background
DEUTZ-FAHR 6 Series TTV - Walkaround

Brochure

Specifications

Compare specifications below, to find out what will best suit your operations

Models 6190 TTV Warrior 6230 TTV Warrior
Horsepower192230
EngineDeutz TCD 6.1 LO6 Tier 5 Diesel Engine (Stripped back to T3A), 6 Cyl/6057cc Turbocharger/IntercooledDeutz TCD 6.1 LO6 Tier 5 Diesel Engine (Re-Homologated back to T3A), 6 Cyl/6057cc Turbocharger/Intercooled
TransmissionSDF T7340 TTV Compound Transmission.SDF T7540 TTV Compound Transmission

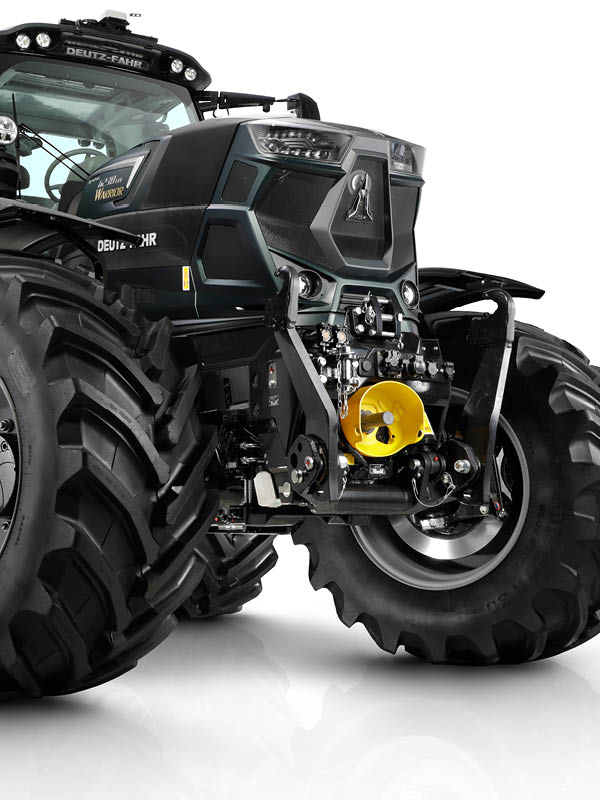

BrakesFour High Efficiency Rear Disc Brakes (2 Each Side)
Hydraulic Config.160 L/min Hyd Flow at Rear Remotes, Load Sensing Hyd Pump System. Hydrostatic Steering -Pump Separate — 58 litres/Min
Weight8,680—9,875 kg8,830—10,025 kg
Height3,250—3,300 mm
Width (mm)2,350—2,790 mm
Rear Lifting Capacity9200 kg
PTO Speed2 Speed PTO 1000/1000E (Optional 540E/1000)
