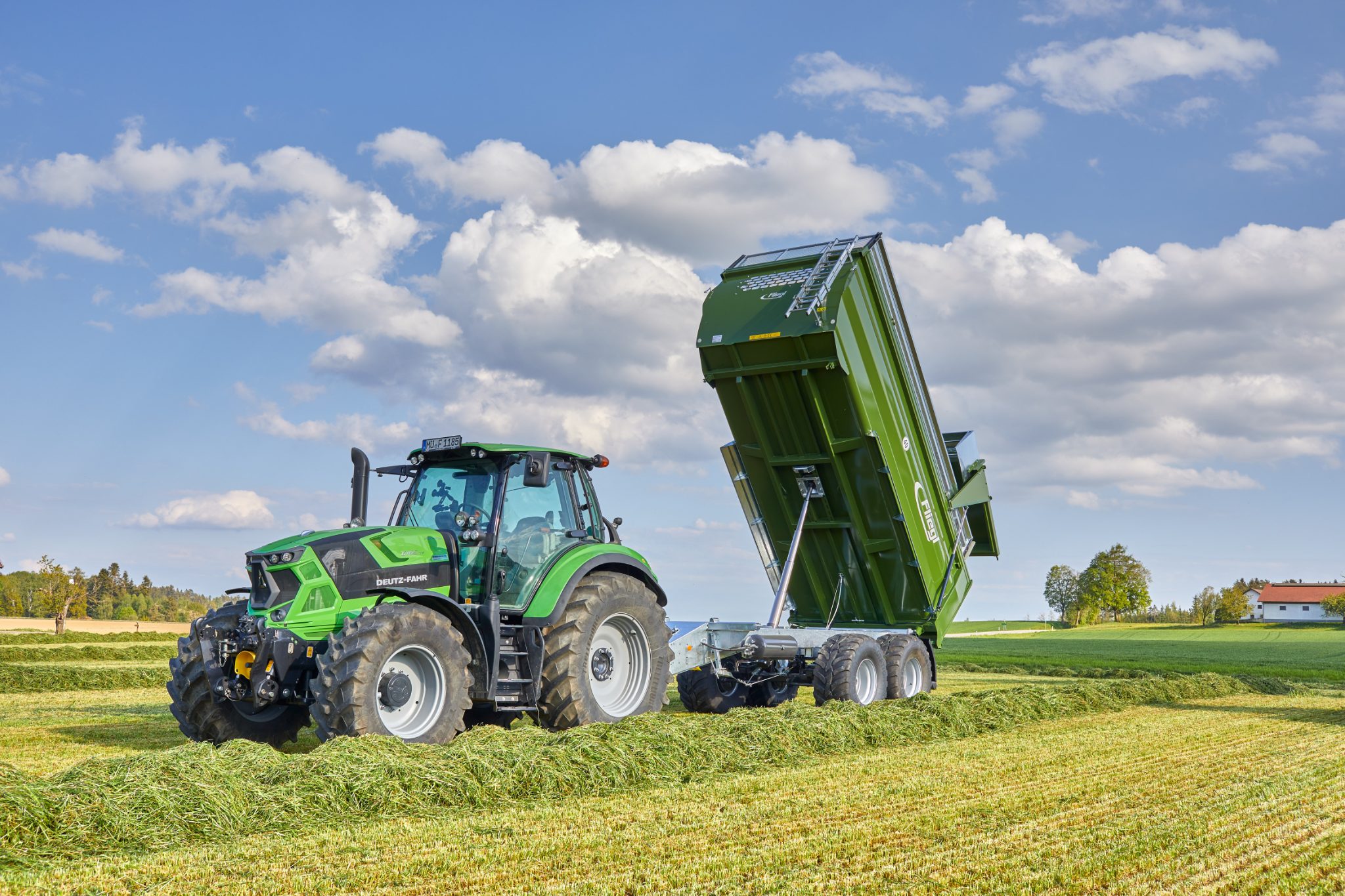

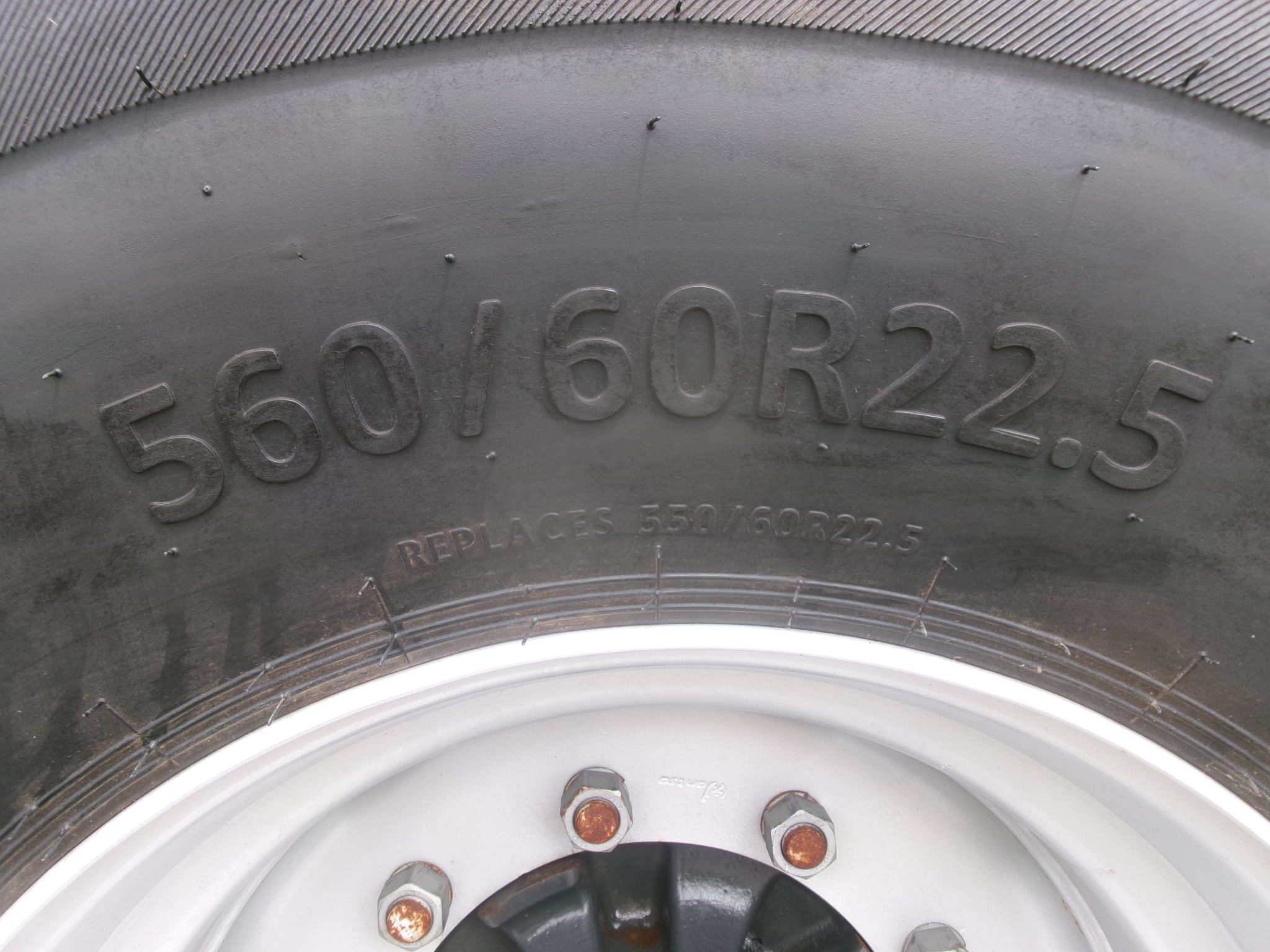

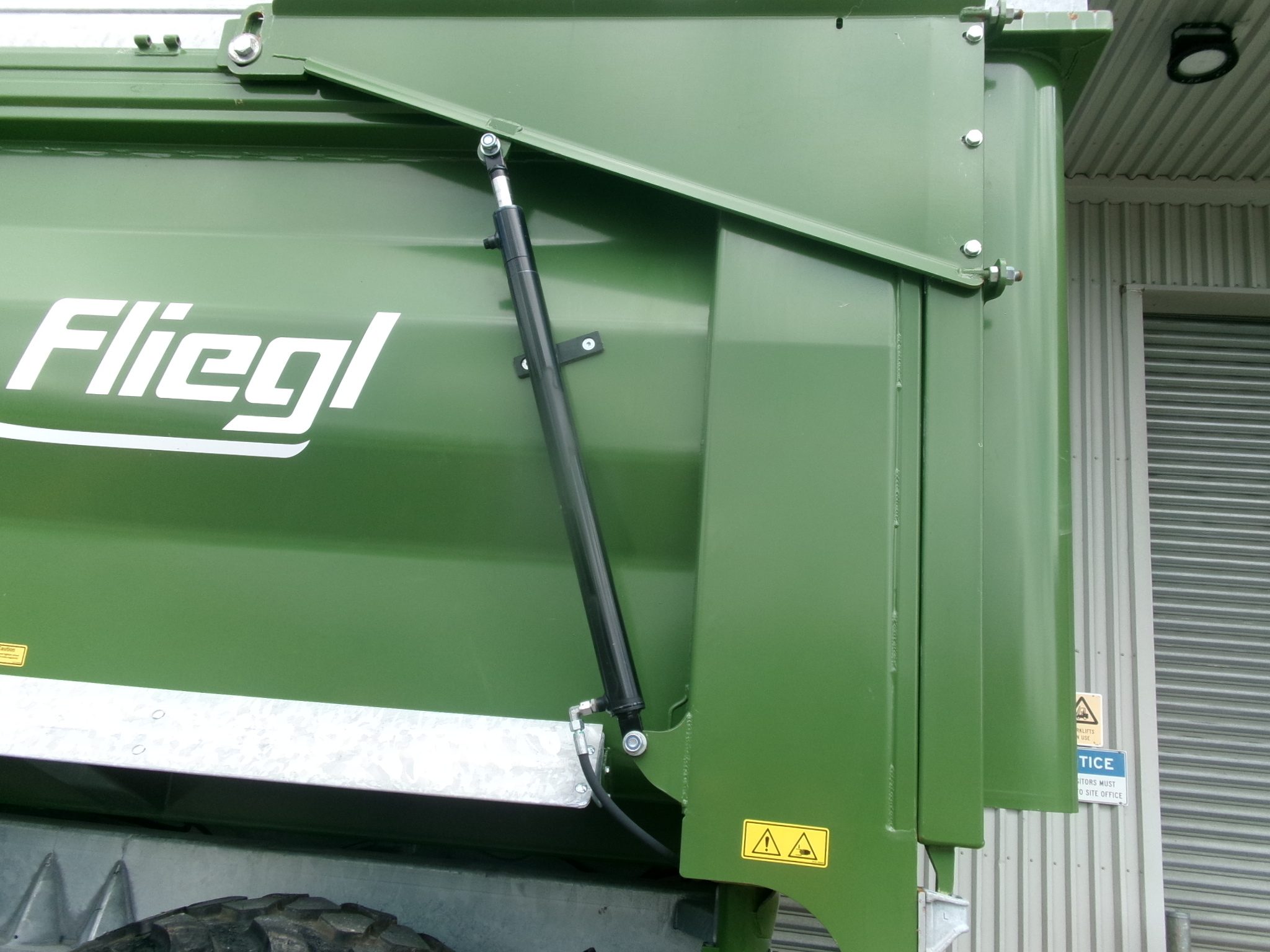

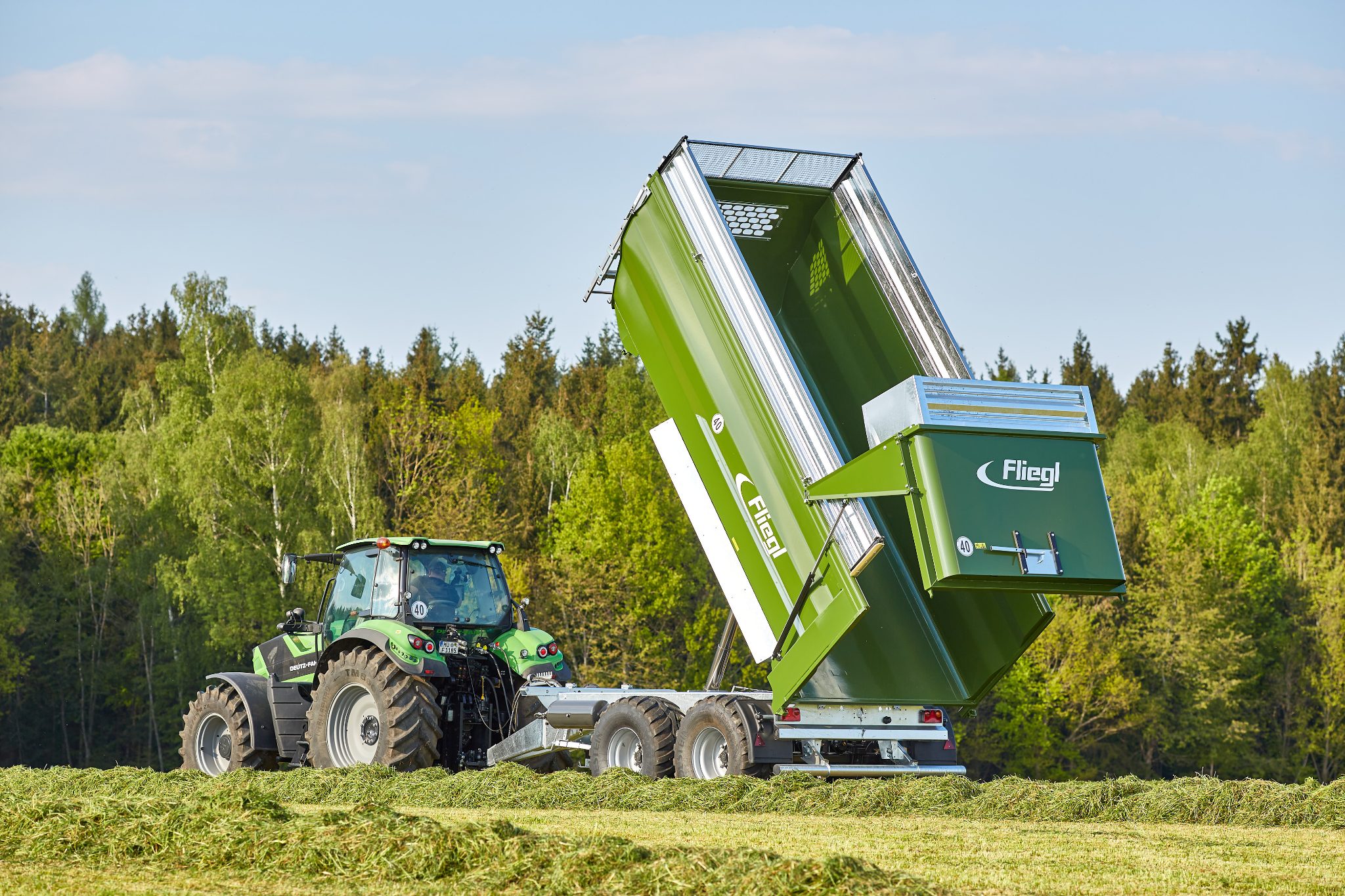

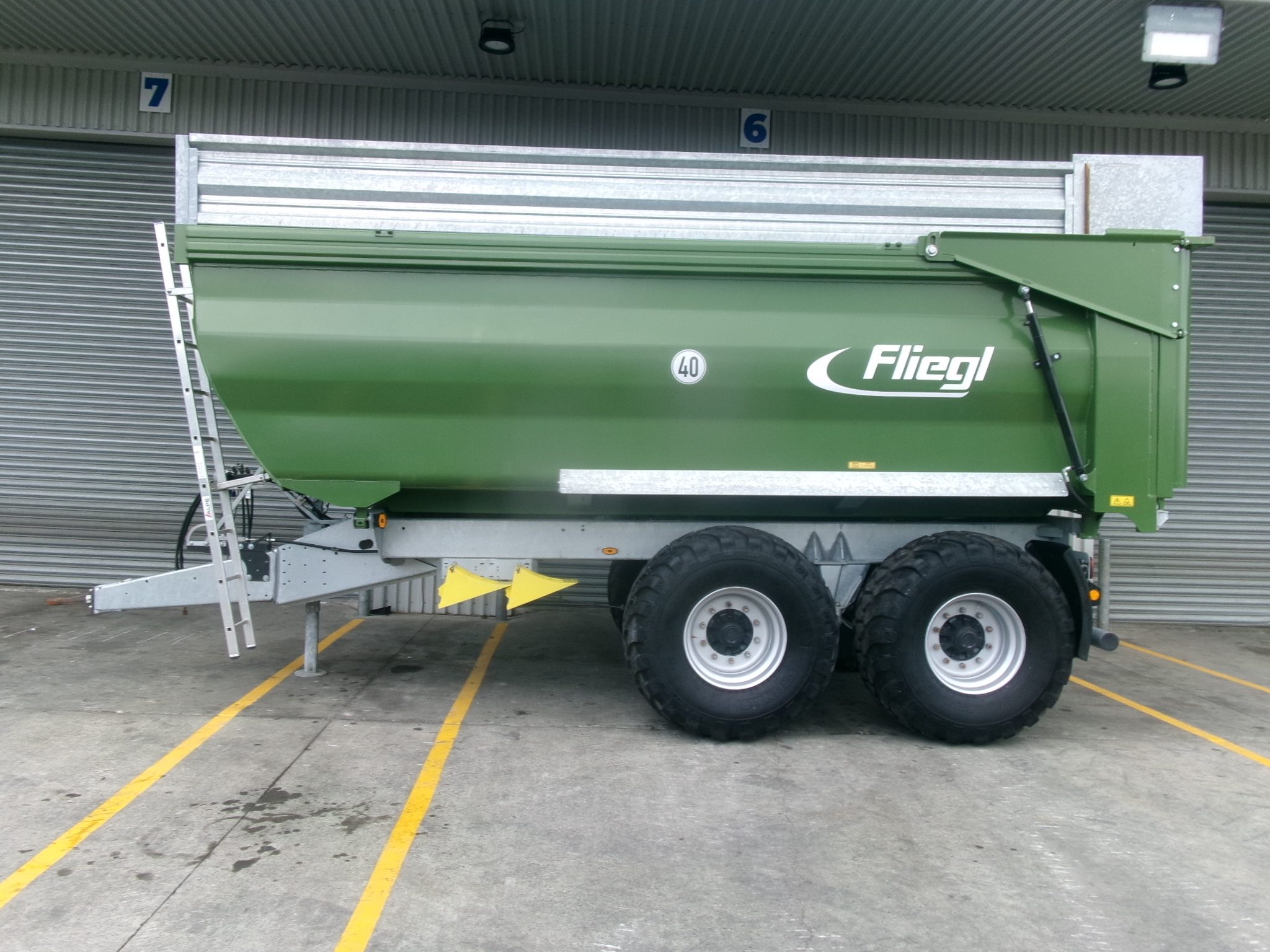

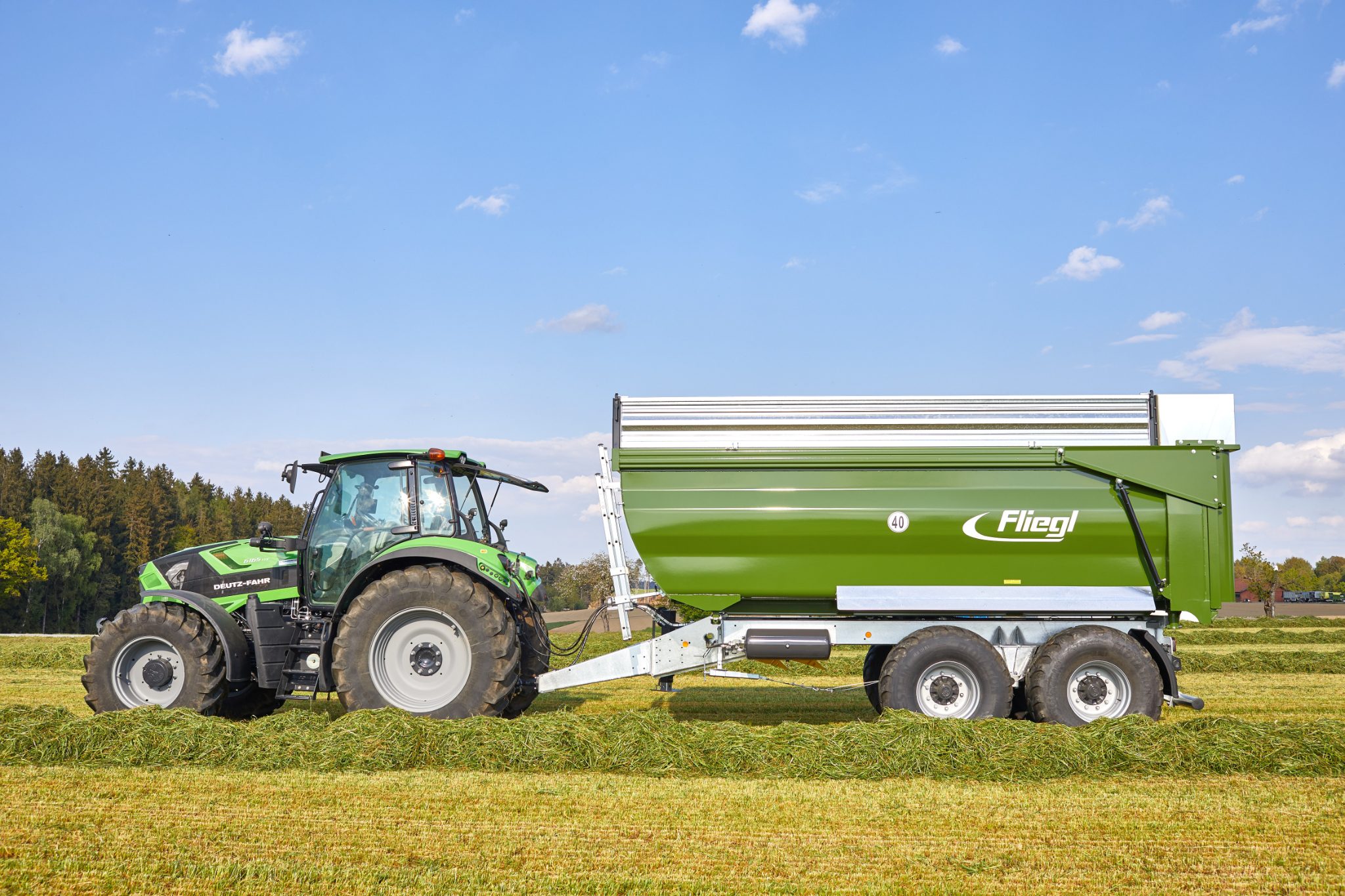

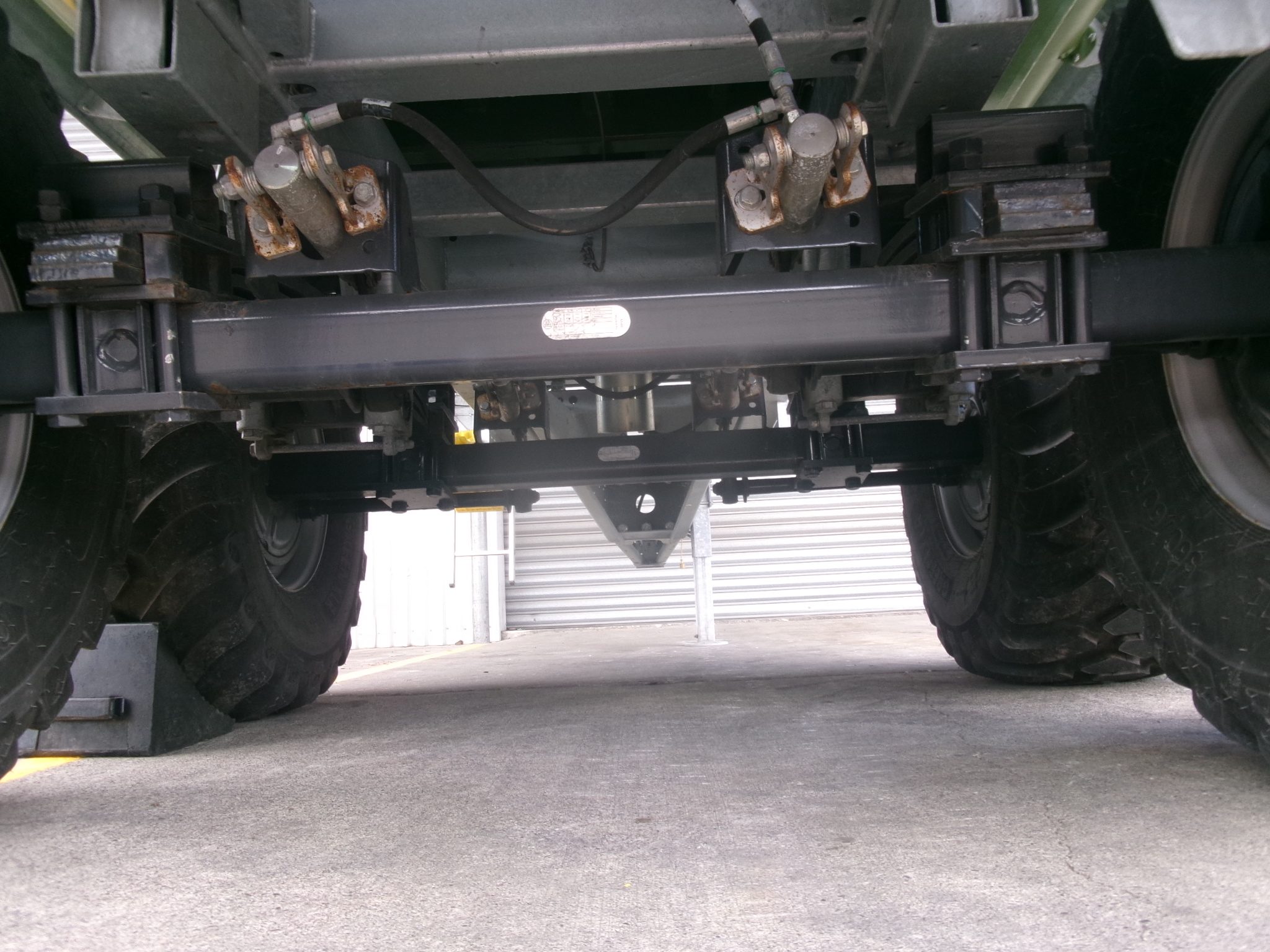

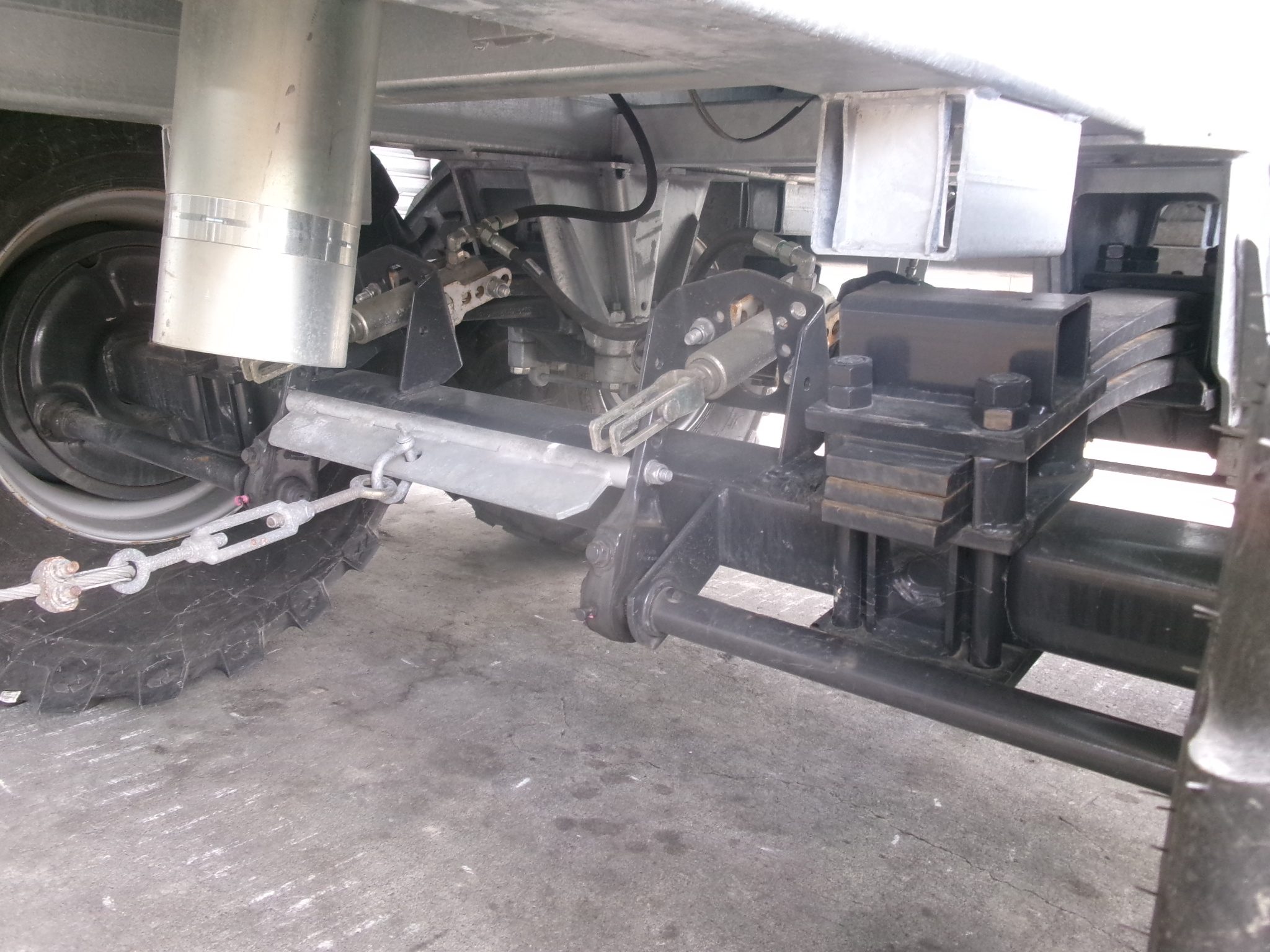

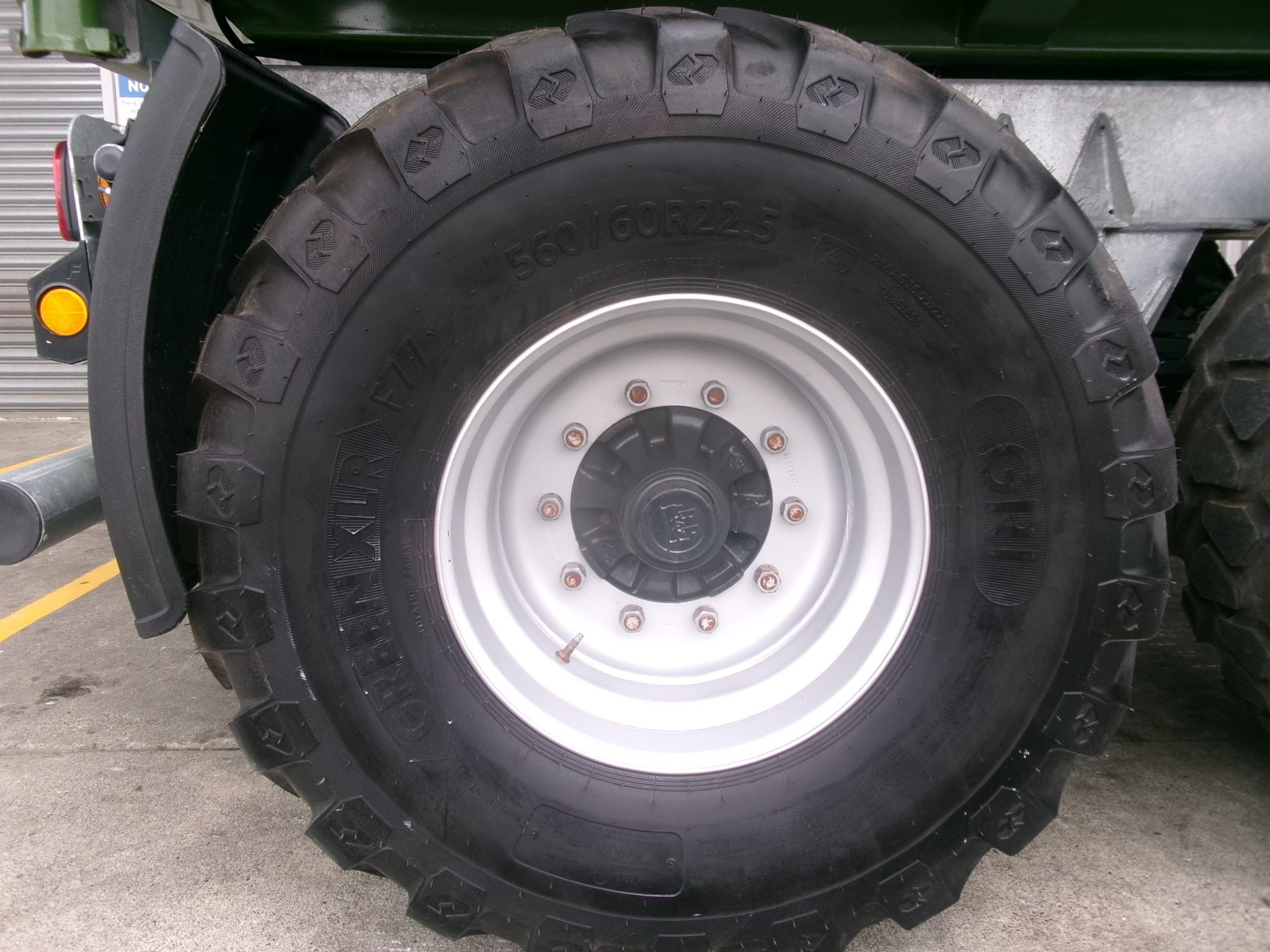

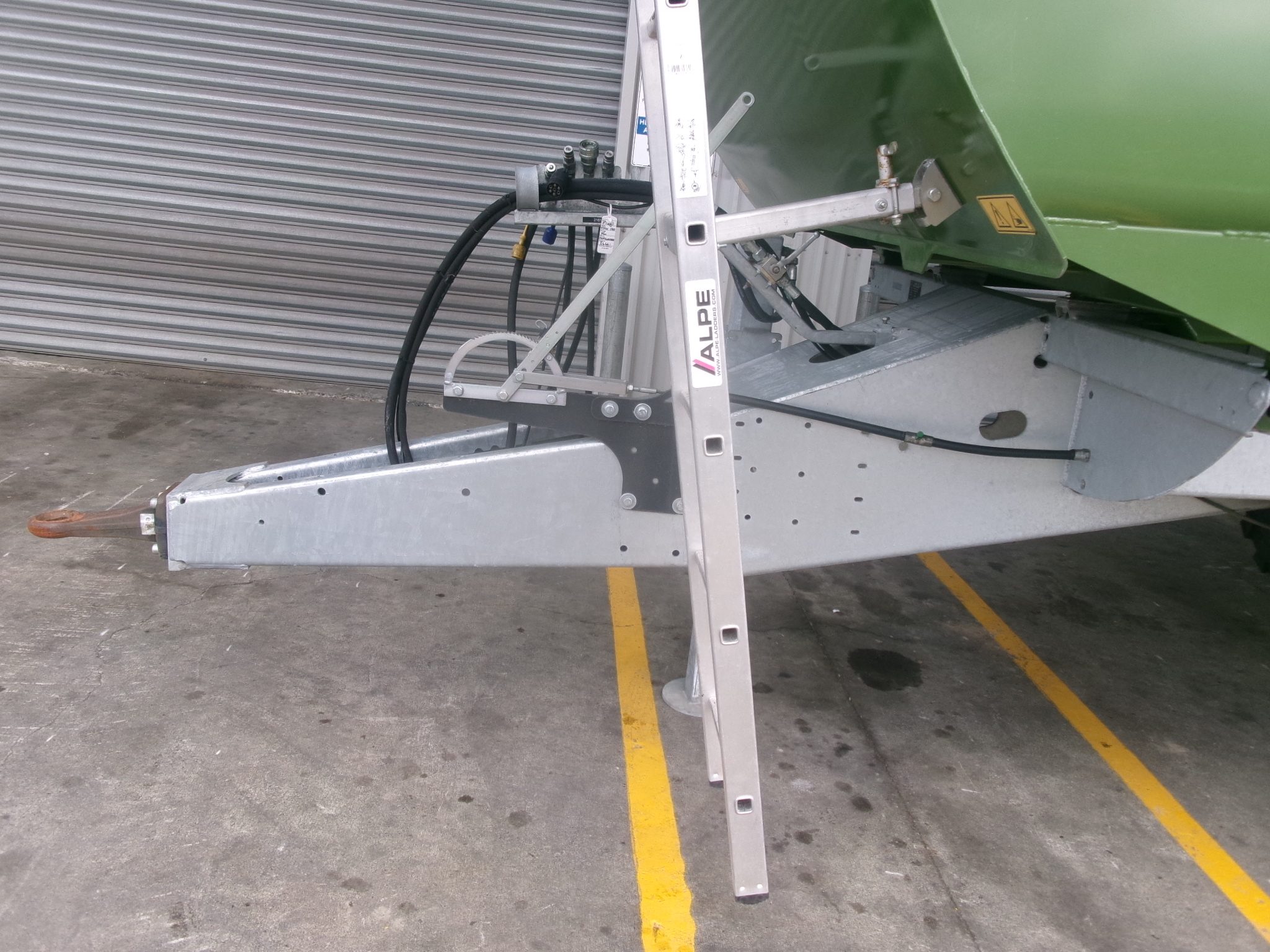

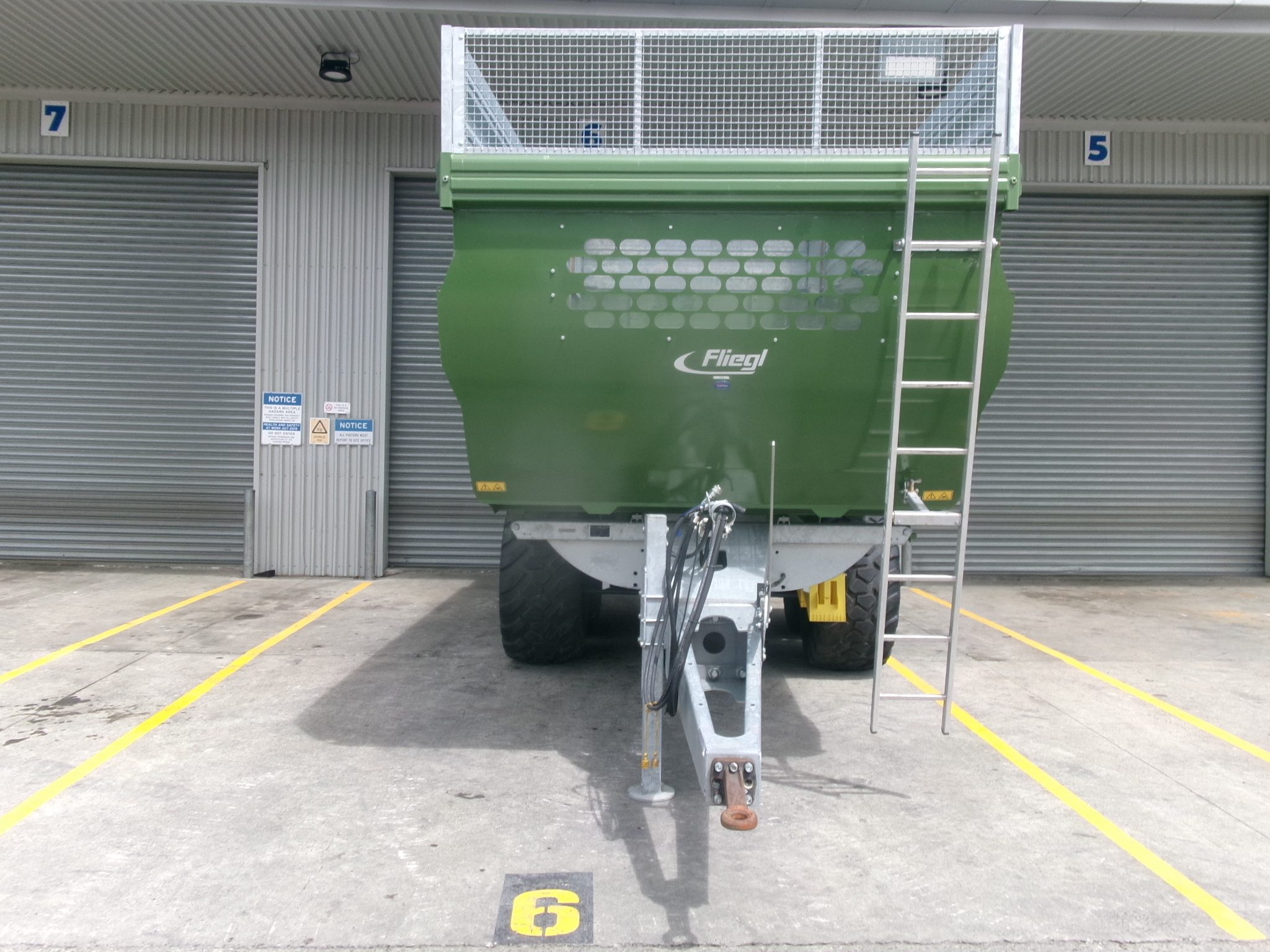

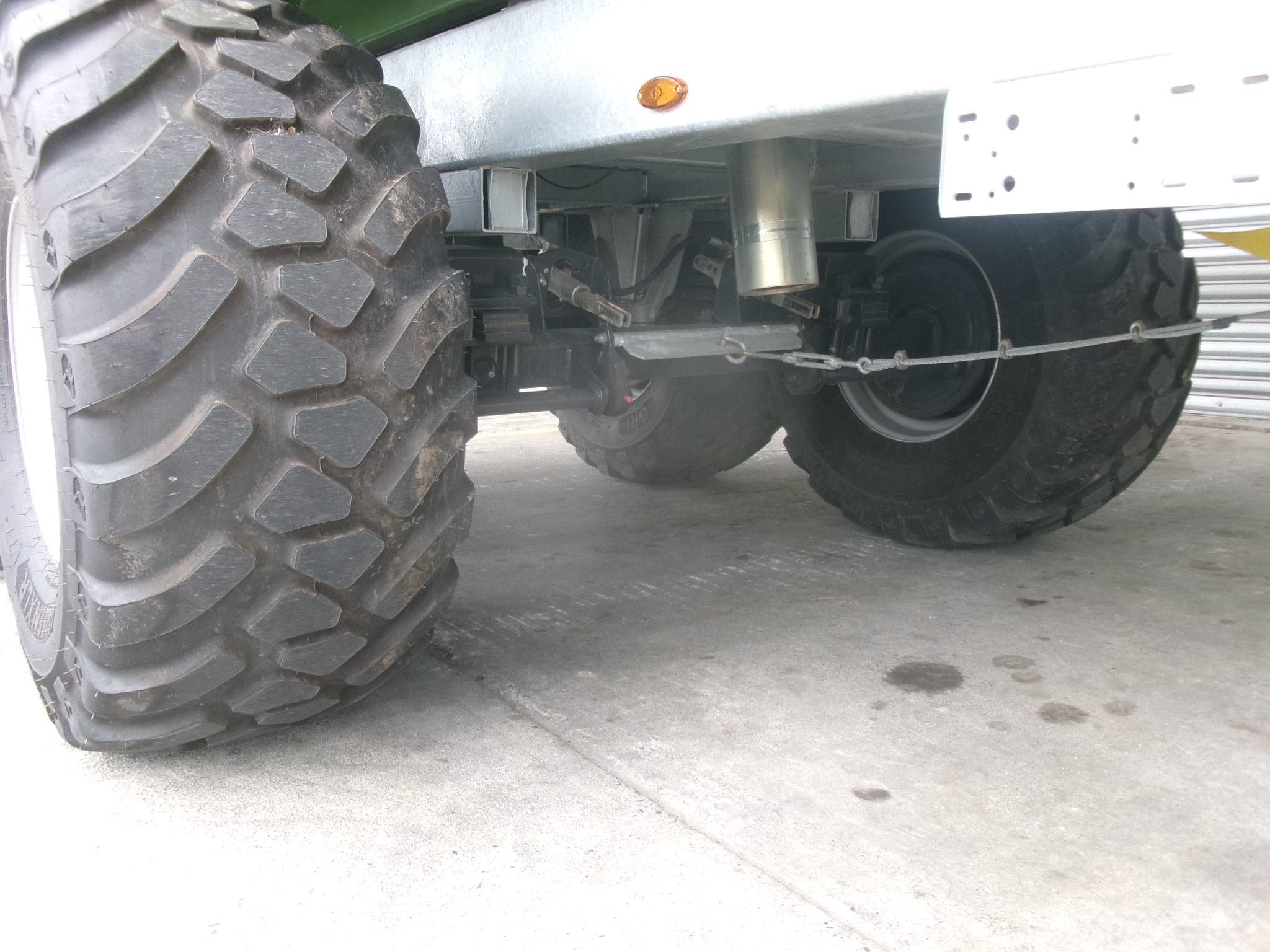

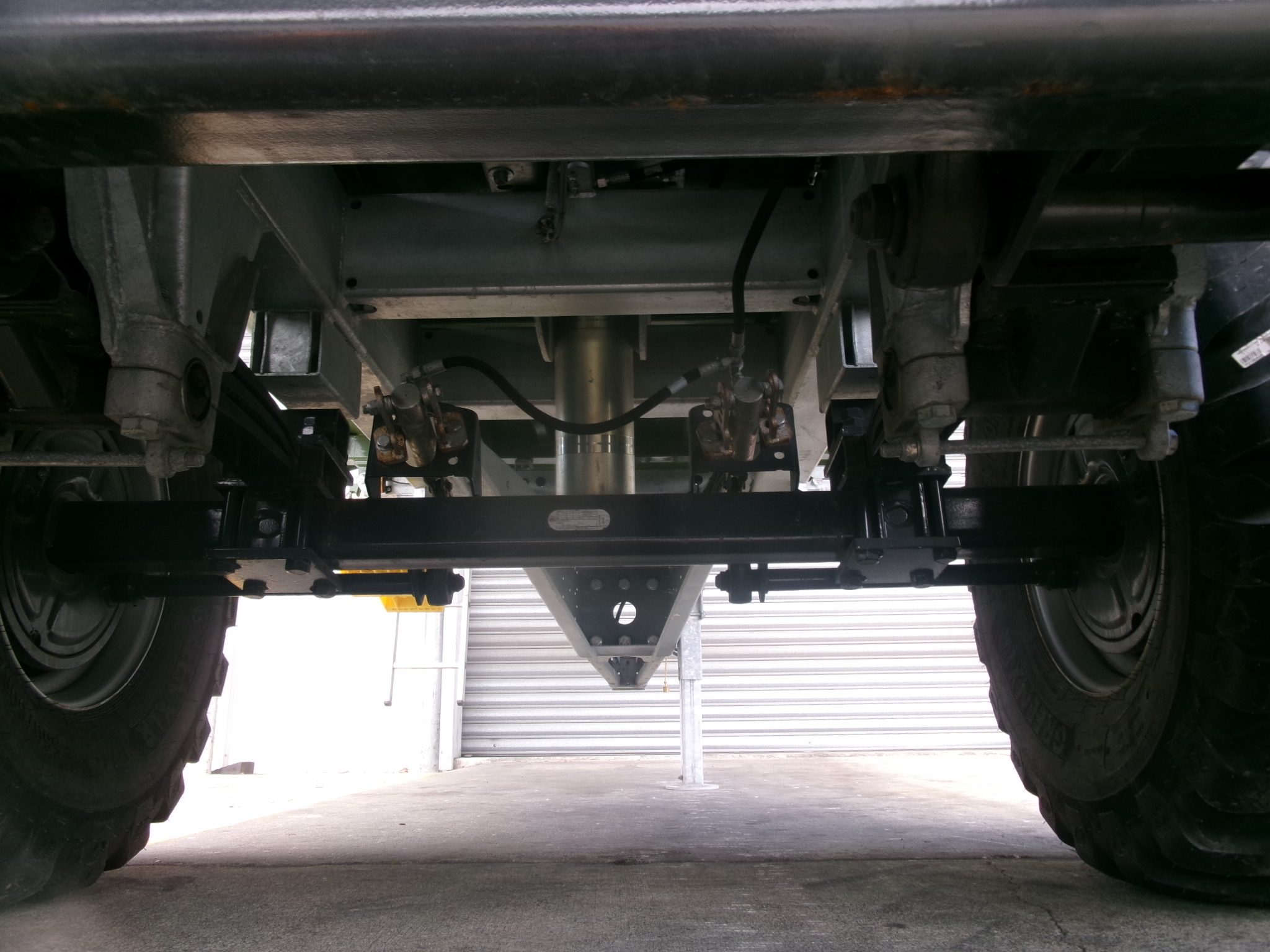

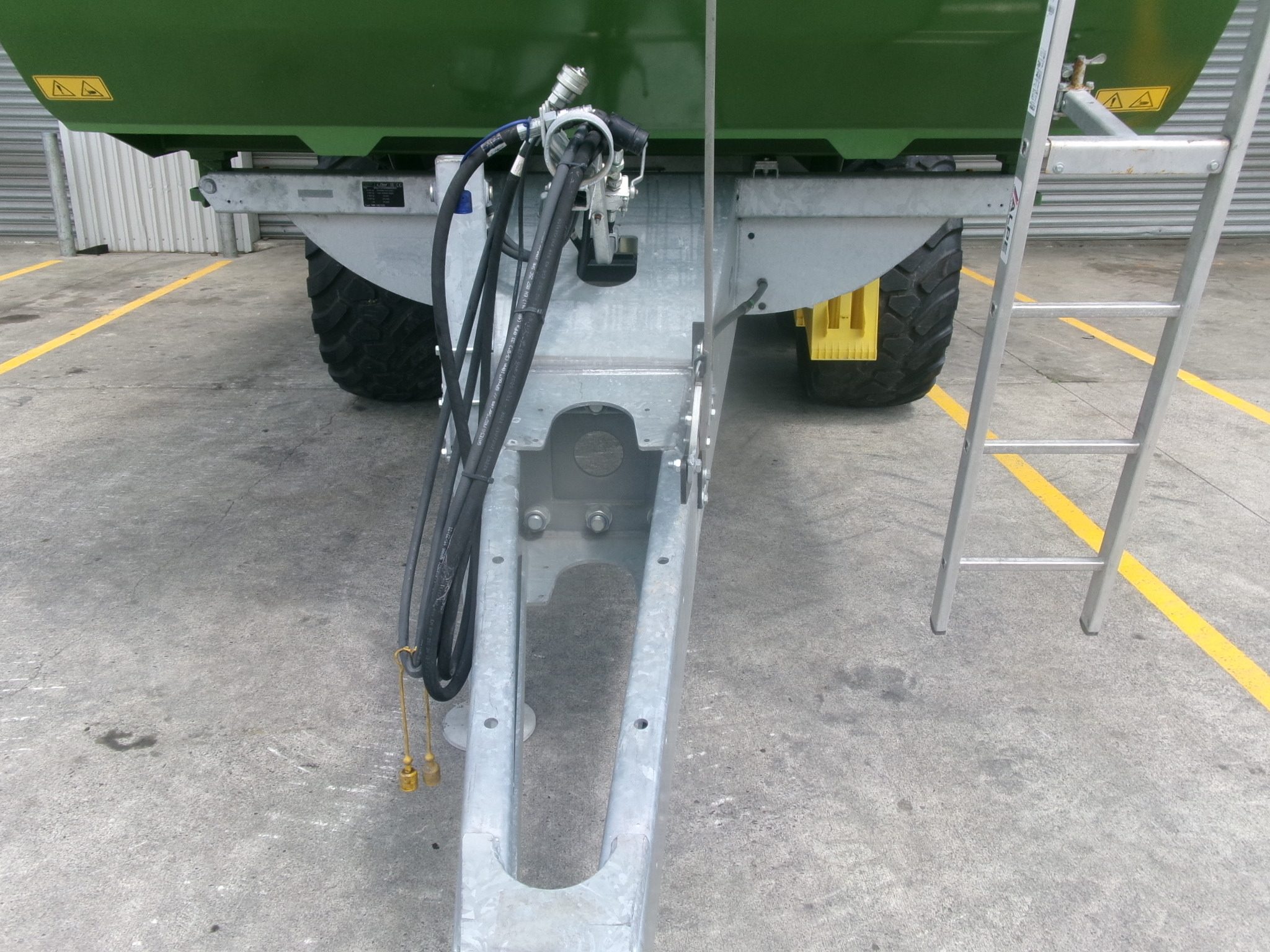

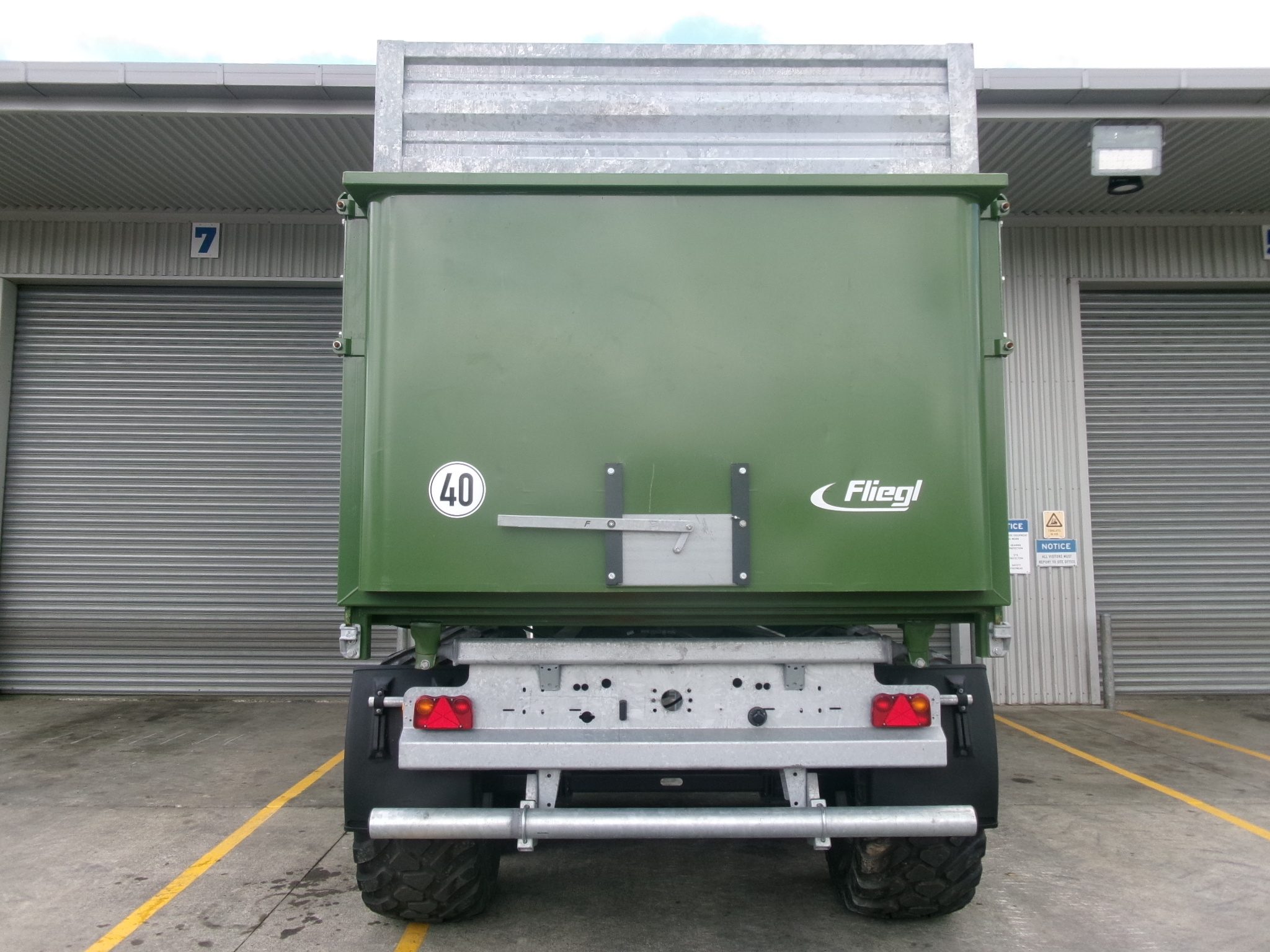

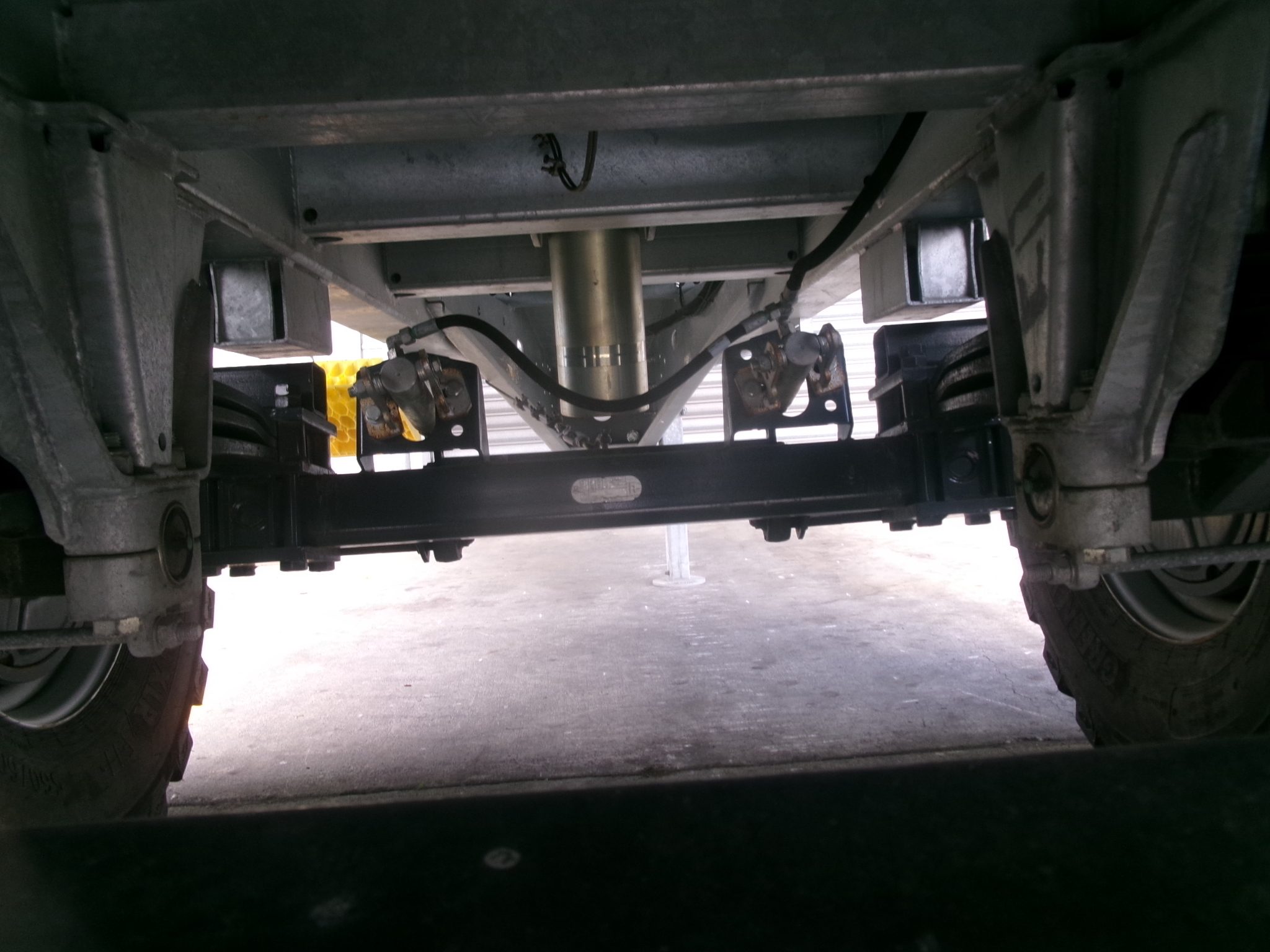

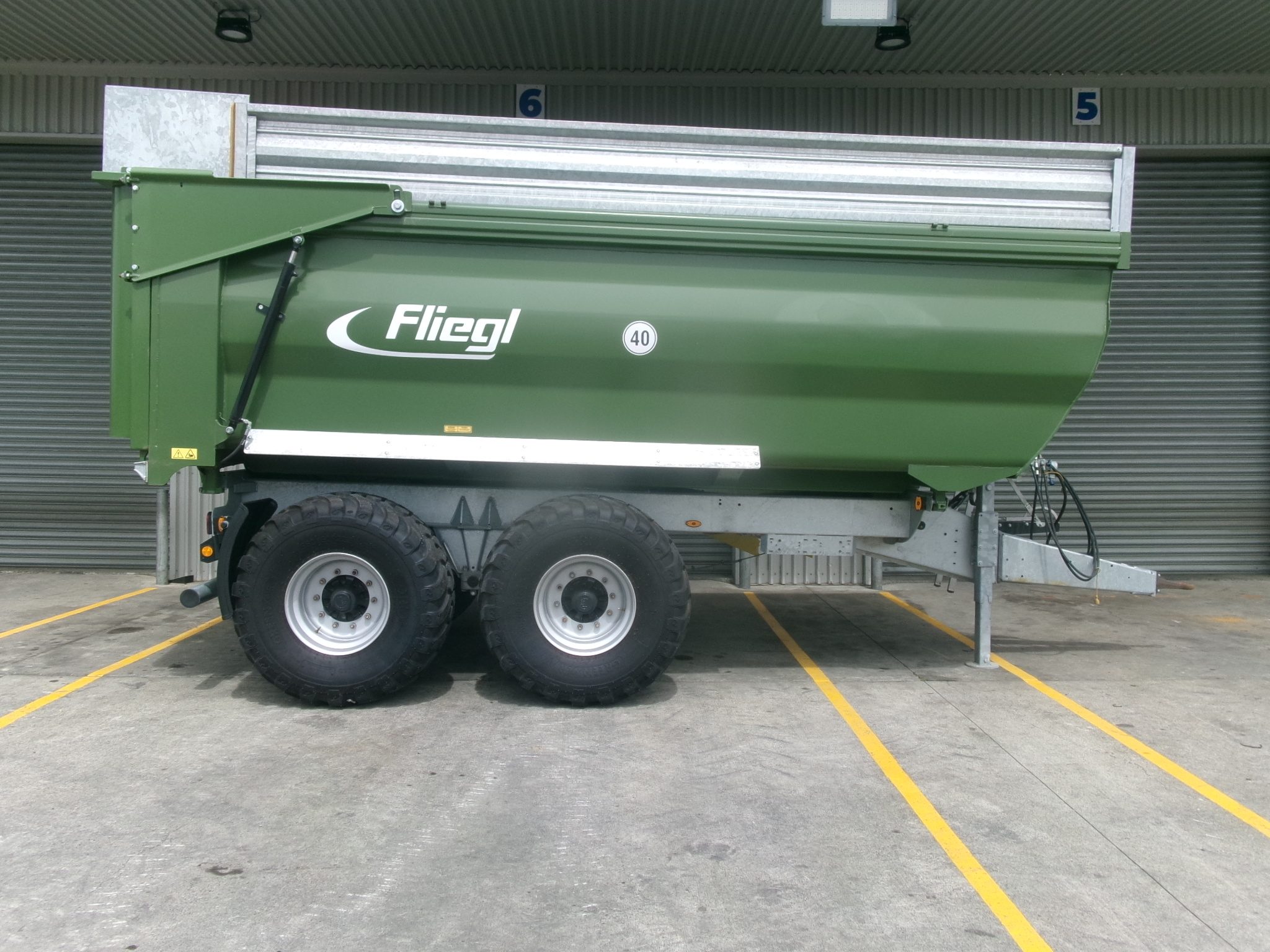

Fliegl TMK 190 Fox Silage & Grain Trailer The TMK190 Fox is a robust and affordable dump trailer with a 27m3 capacity for silage, and a host of other features for making light work of harvesting and transport needs around the farm. With a galvanised chassis hydraulic support jack 560/50 R22.5 tyres hydraulic braked axles and tapered steel trough The TMK190 is sure to tick many boxes. Key Features Tandem chassis Permitted total weight 19,000kg, drawbar load 2000kg Profi chassis frame, galvanised Trough 5950mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1500 mm, all-steel trough primed and 2-component coating, dark green, with front inspection window Hydraulic large-volume tailgate, 300mm depth with grain slide 400mm x 230mm Parabolic suspension, titan assembly Rigid drawbar, bottom hitch 50mm pivoting tow eye Axle version 400 x 120, brake drums BPW 2 hydraulic brake axles, both rigid Tyres 560/60 R22.5 Mudguard, underride guard and side marker lights Hydraulic support foot Tipping cylinder 2150mm with limit switch 2 five-chamber lights 12V with 7-pin plug and impact-resistant glass Stop valve 500mm galvanised steel silage extensions (not grain tight) Optional auto silage cover for $7900 + gst
