Key Features
Tandem chassis
Permitted total weight 19,000kg, drawbar load 2000kg
Profi chassis frame, galvanised

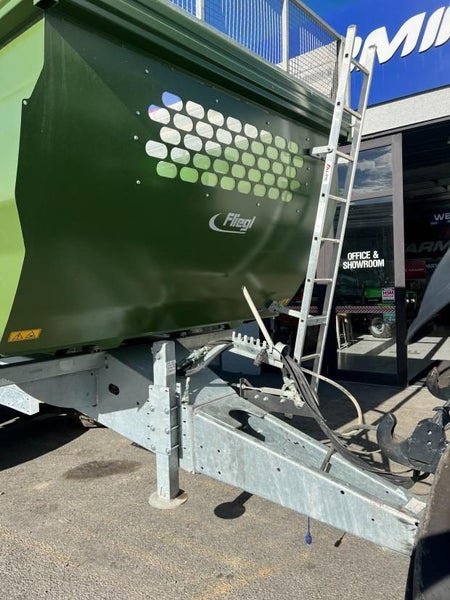

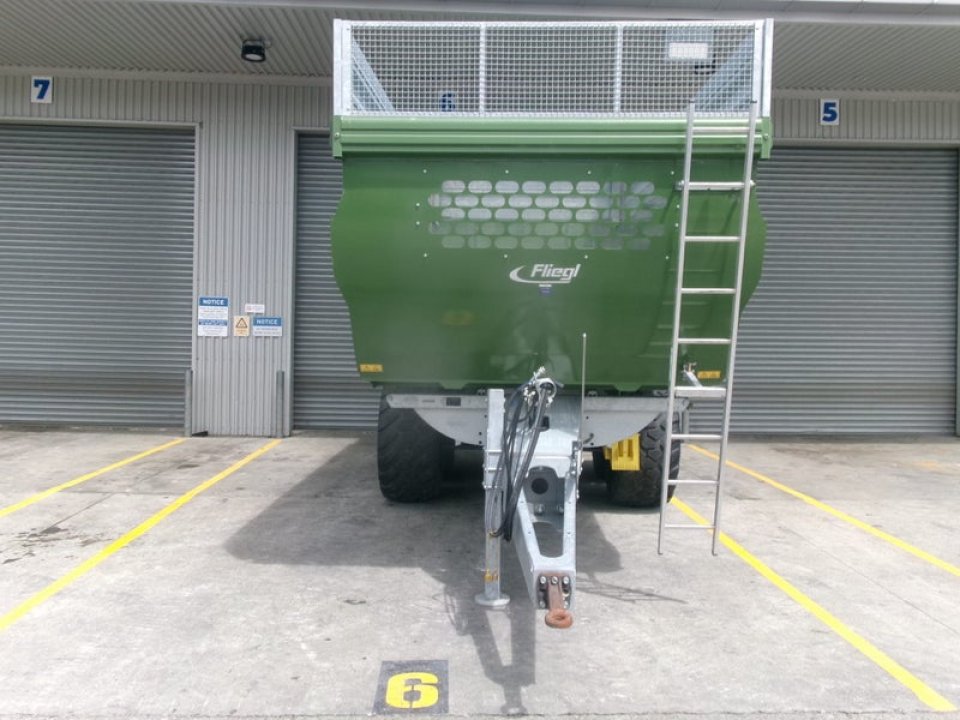

Trough 5950mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1500 mm, all-steel trough primed and 2-component coating, dark green, with front inspection window

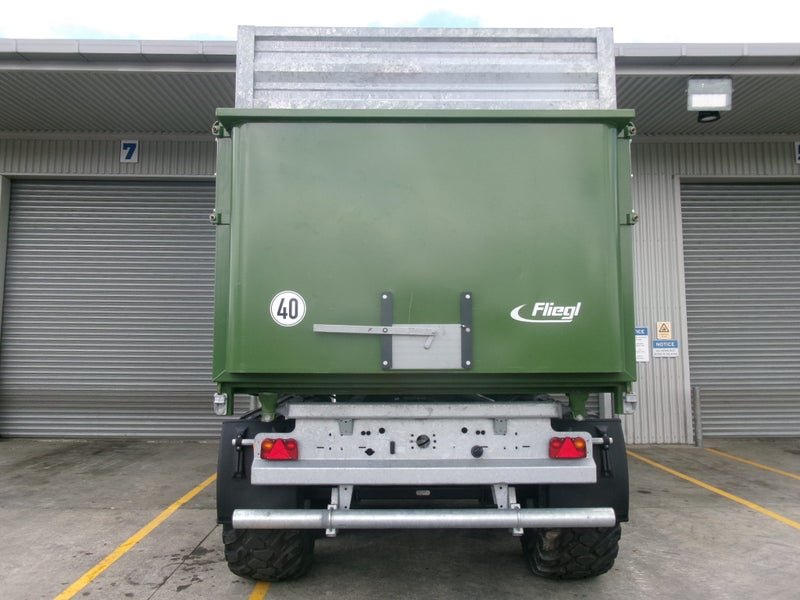

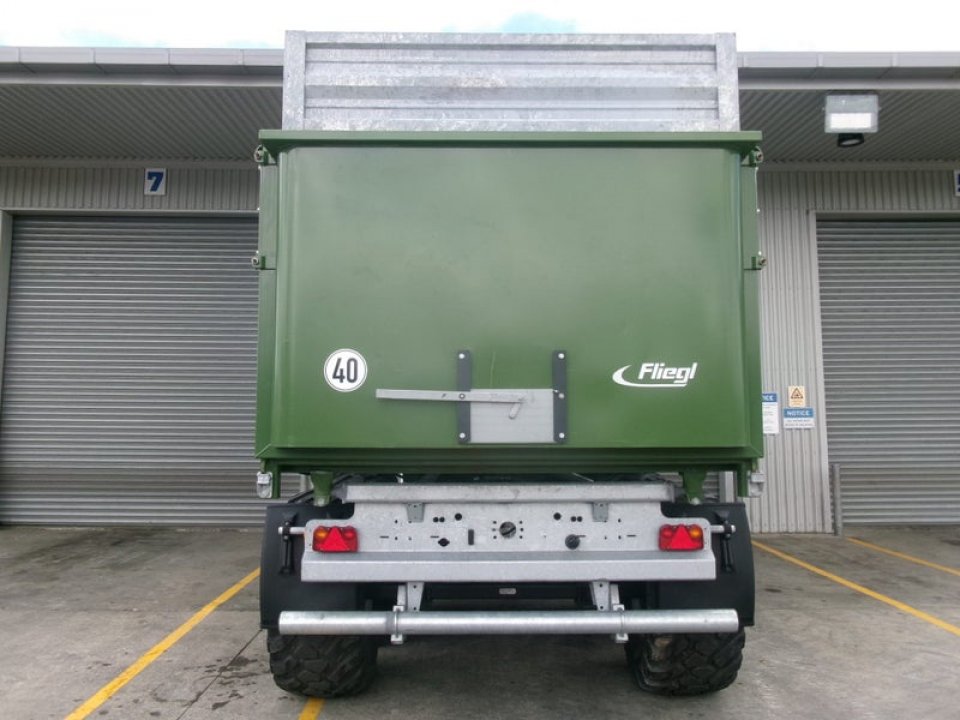

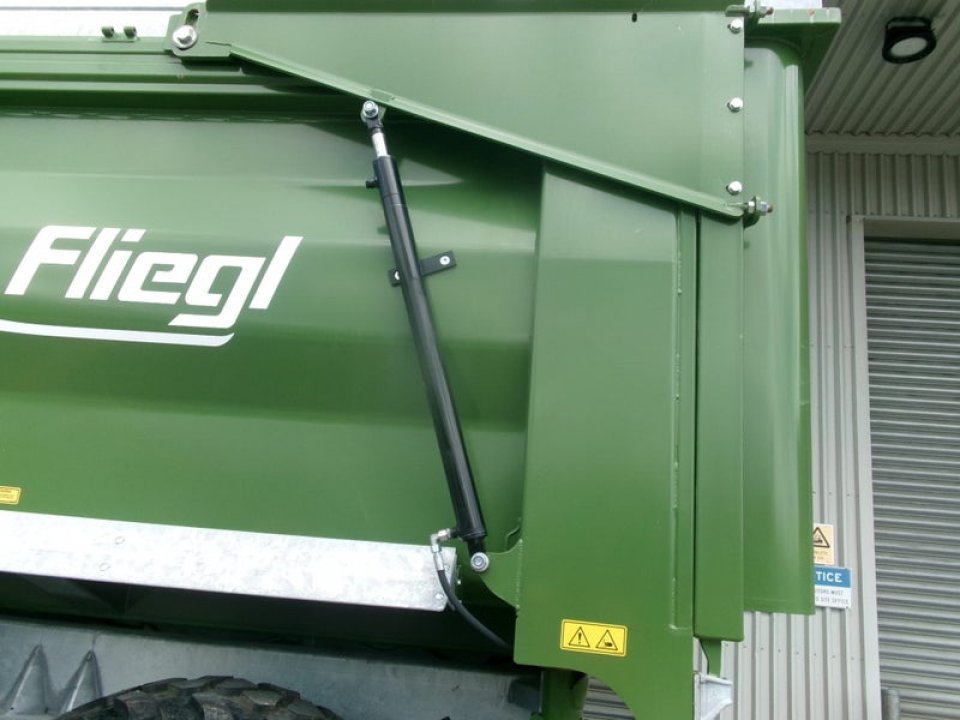

Hydraulic large-volume tailgate, 300mm depth with grain slide 400mm x 230mm

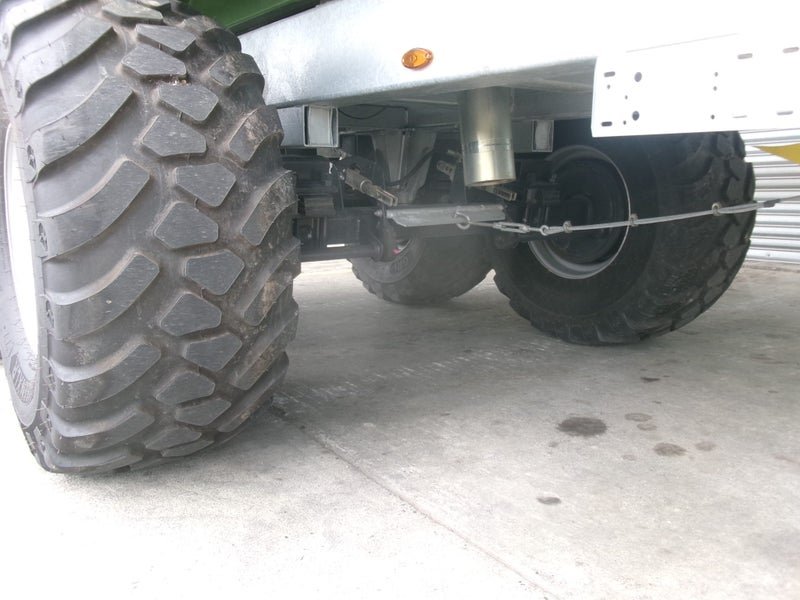

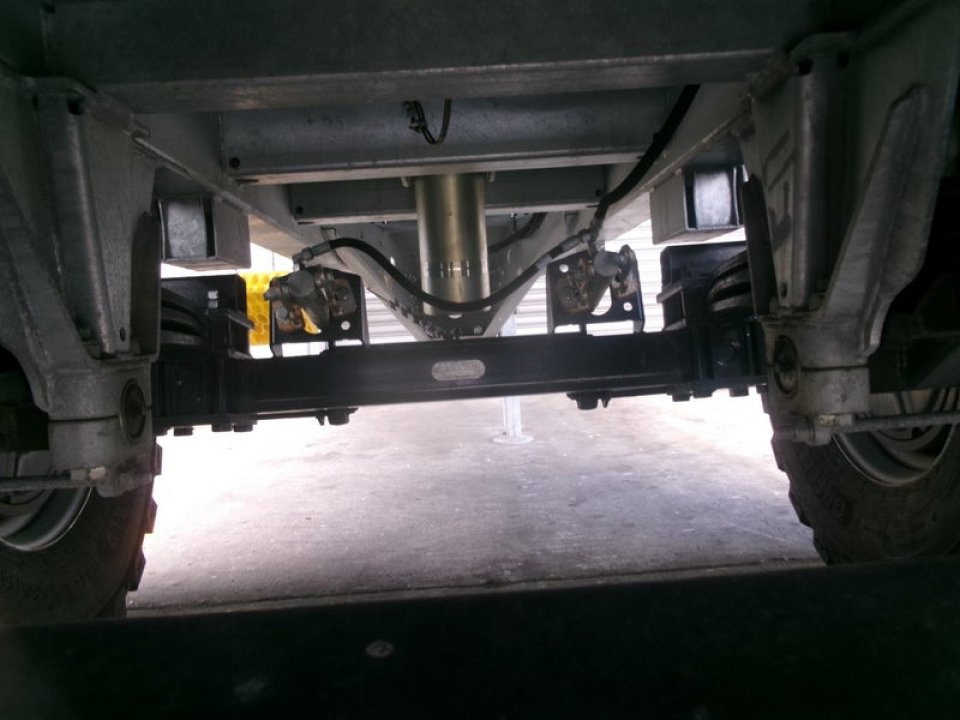

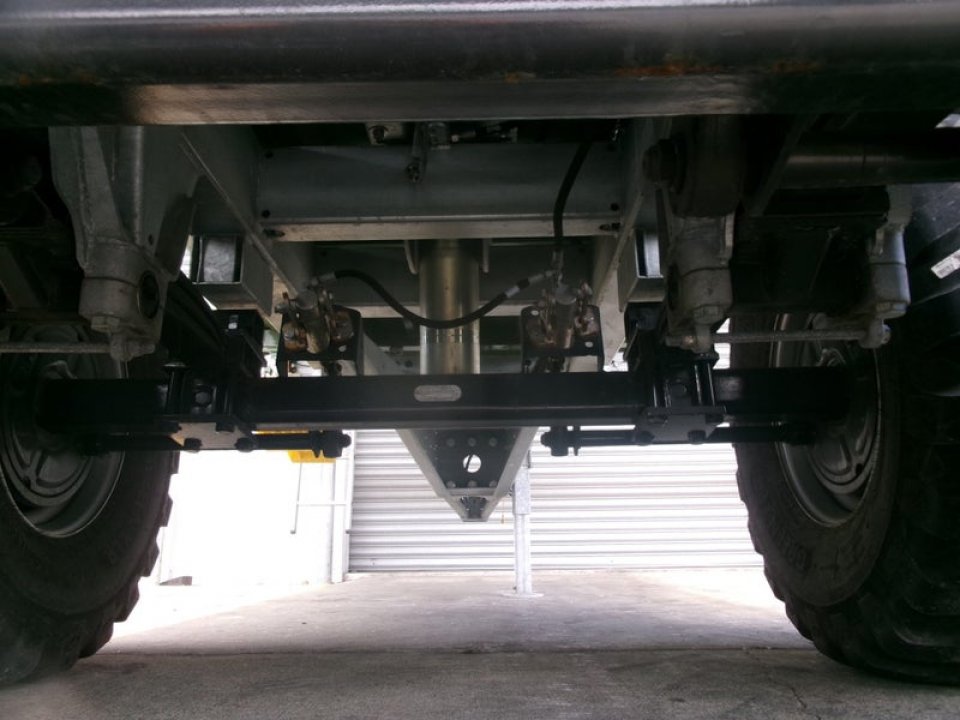

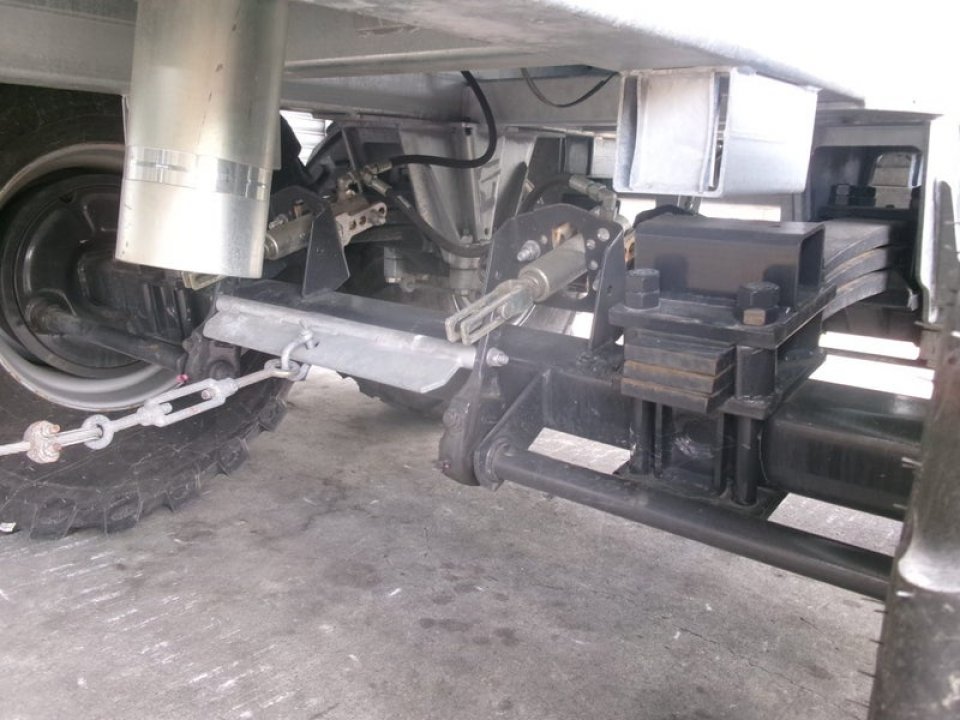

Parabolic suspension, titan assembly

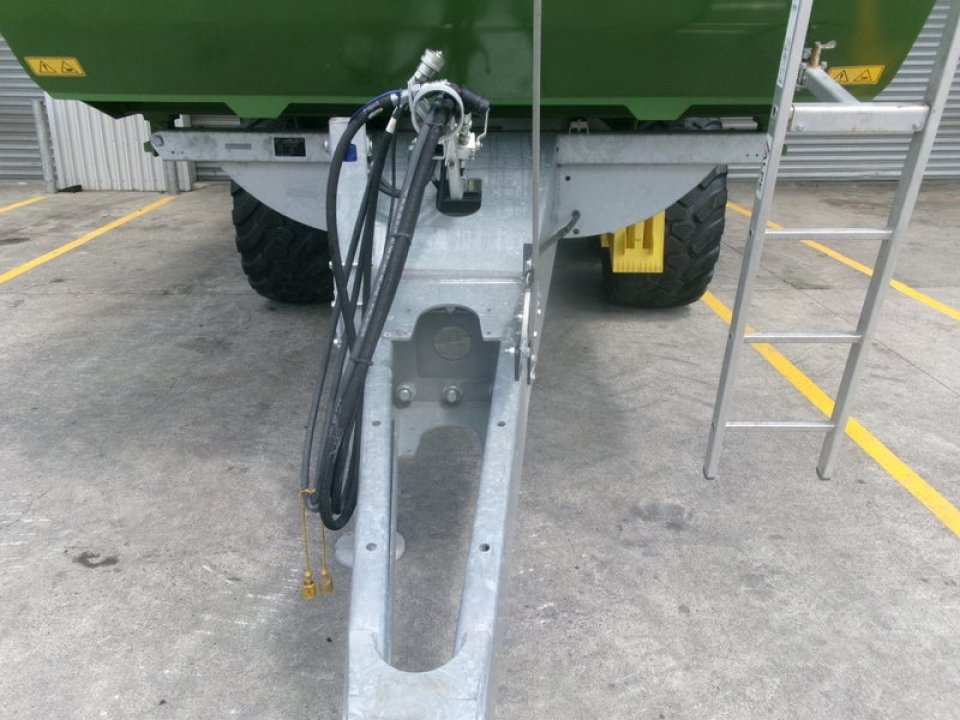

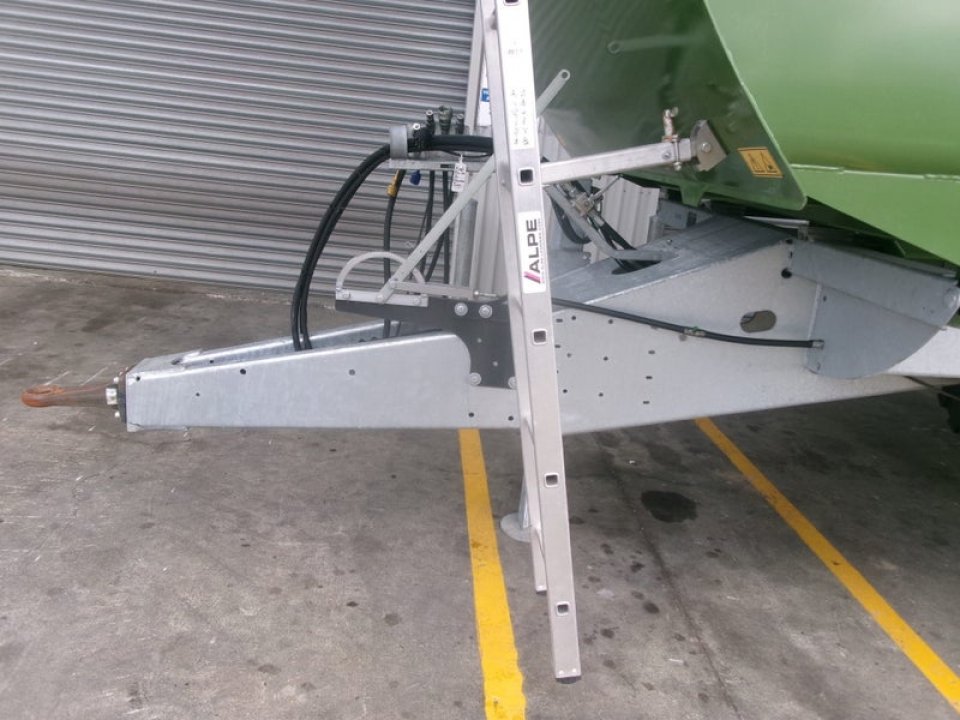

Rigid drawbar, bottom hitch
50mm pivoting tow eye

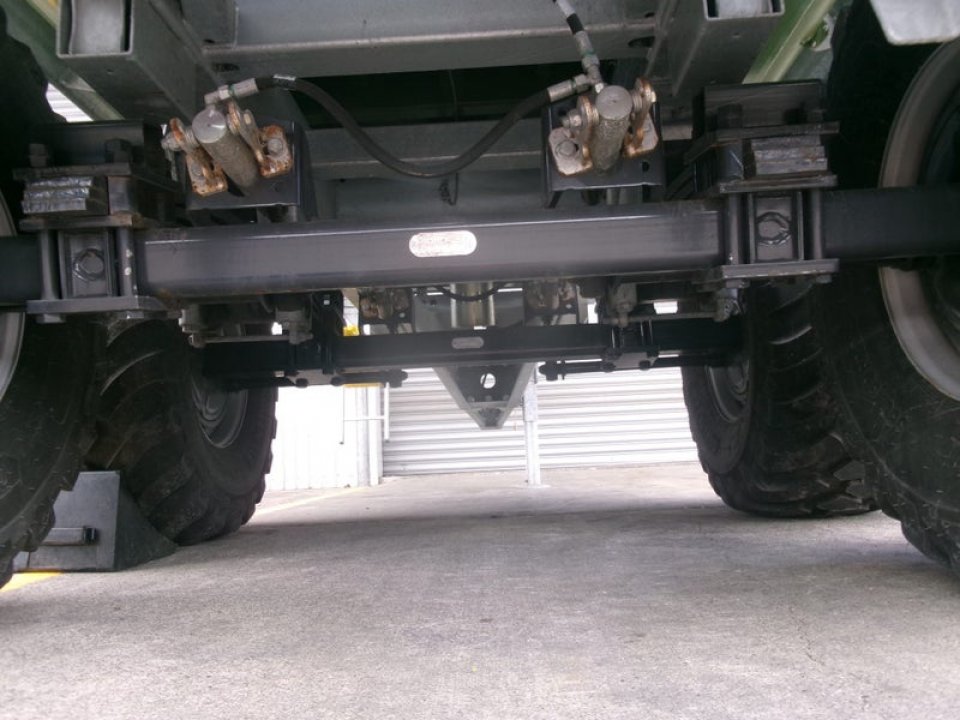

Axle version 400 x 120, brake drums BPW
2 hydraulic brake axles, both rigid

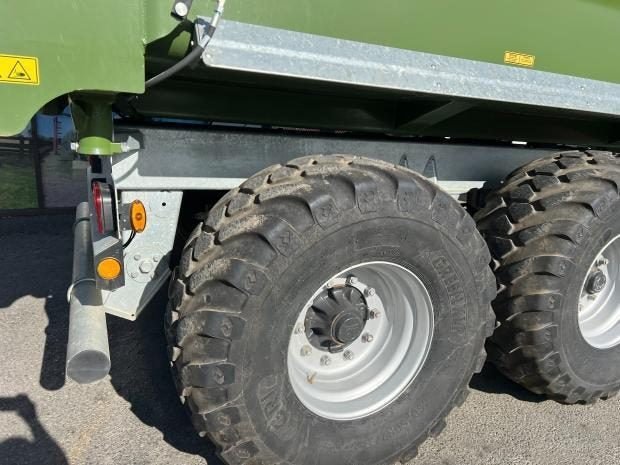

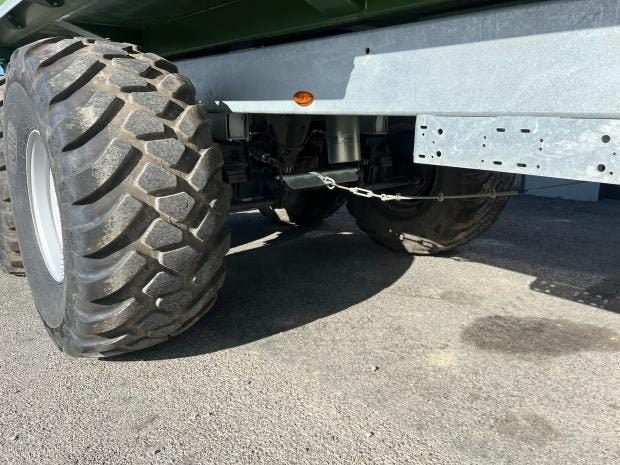

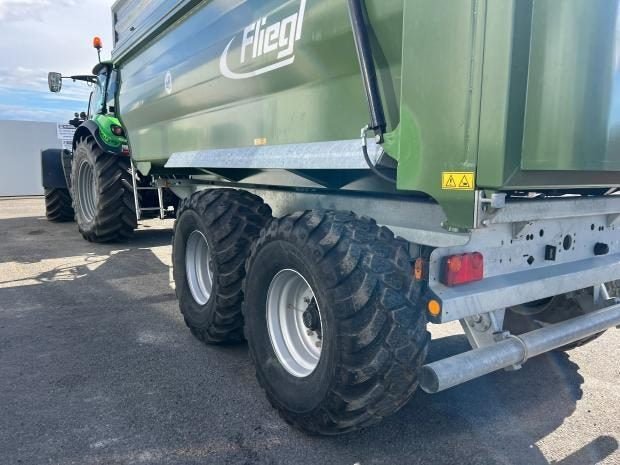

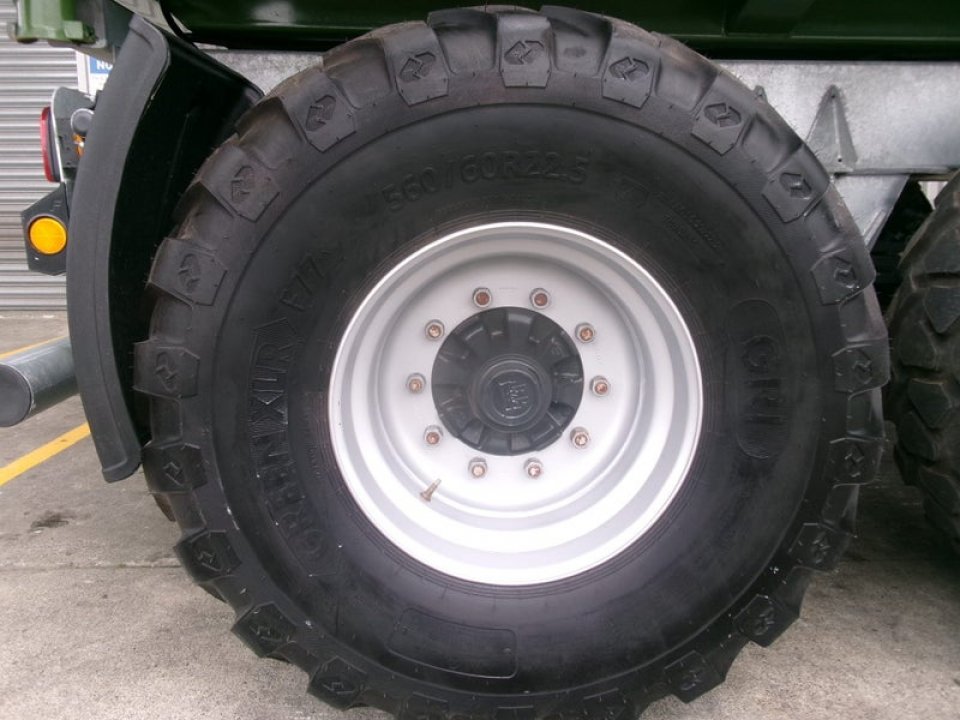

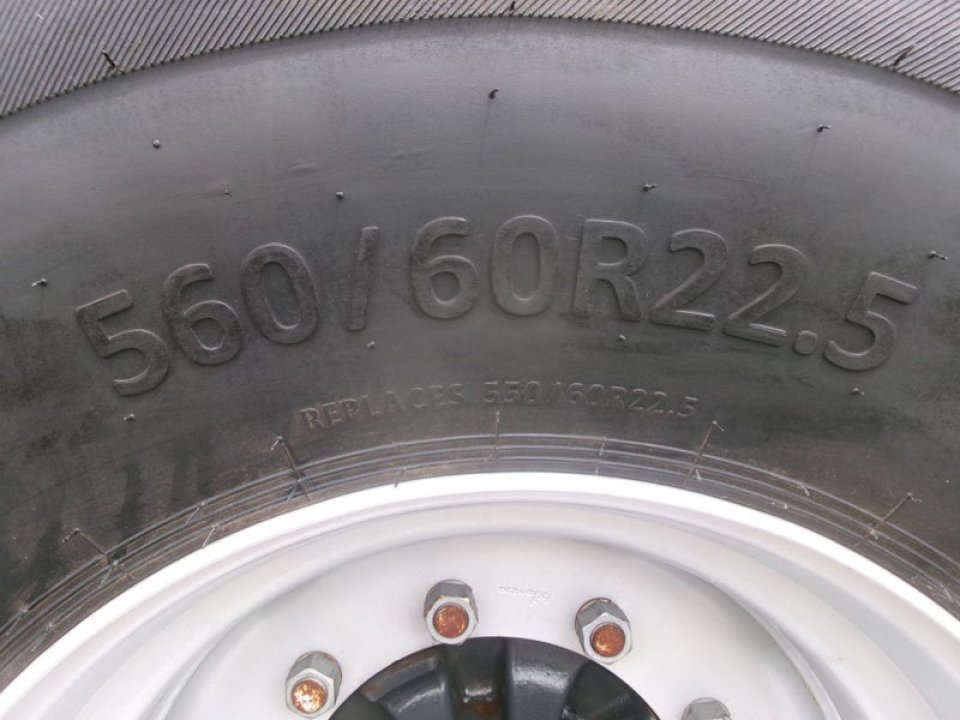

Tyres 560/60 R22.5

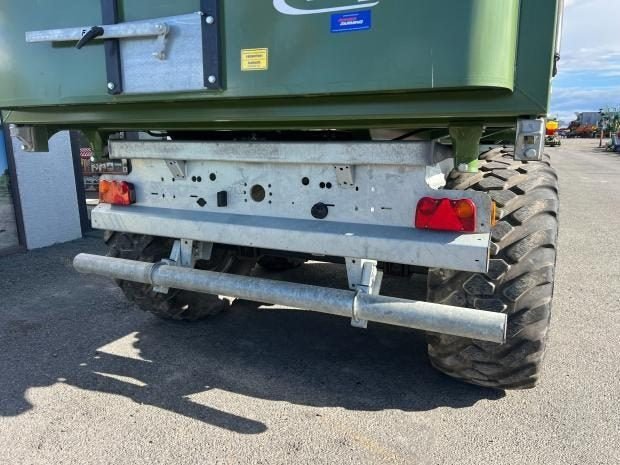

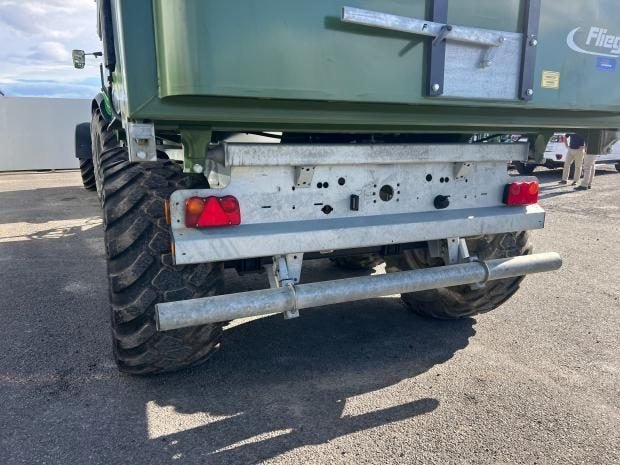

Mudguard, underride guard and side marker lights

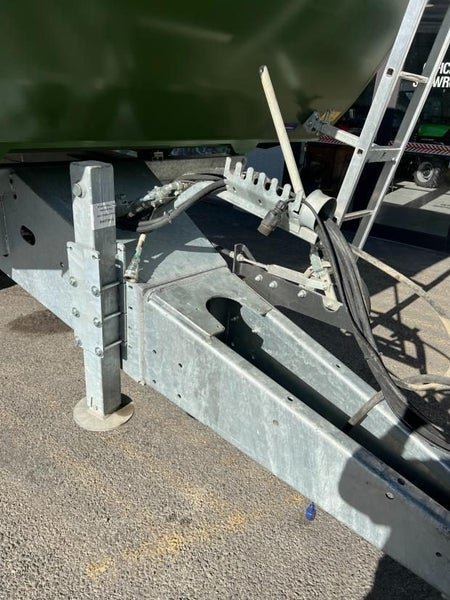

Hydraulic support foot
Tipping cylinder 2150mm with limit switch
2 five-chamber lights 12V with 7-pin plug and impact-resistant glass
Stop valve
500mm galvanised steel silage extensions (not grain tight)
Optional auto silage cover for $7900 + gst
Fliegl TMK190
$68,900

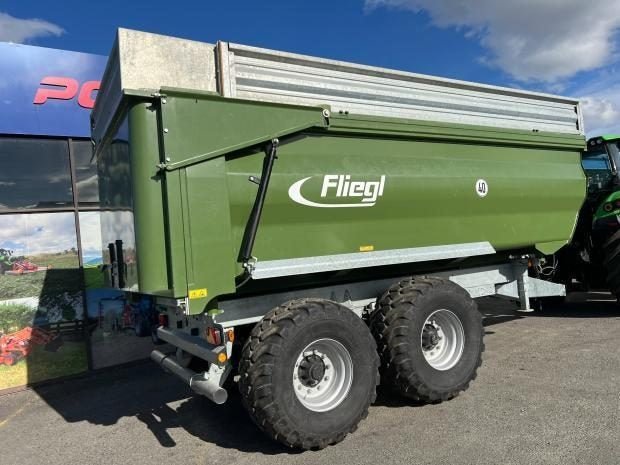

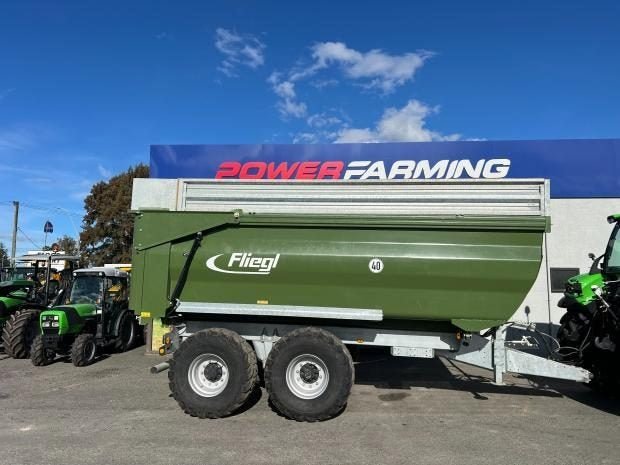

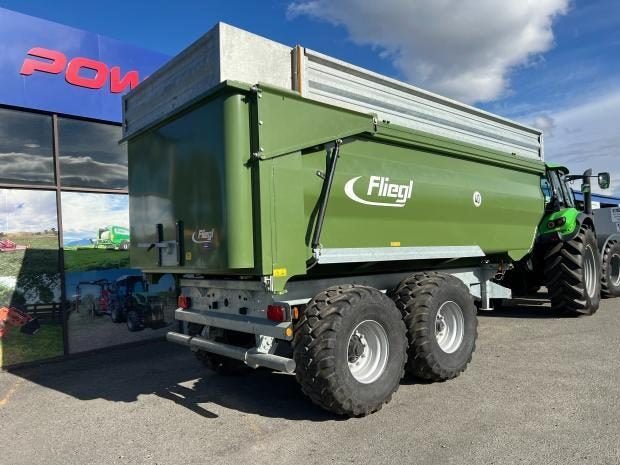

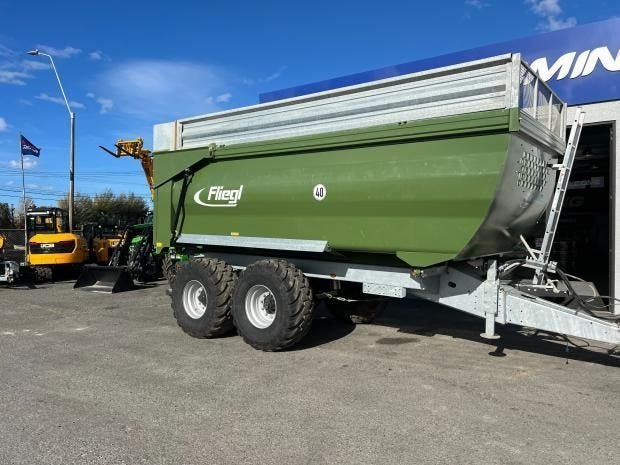

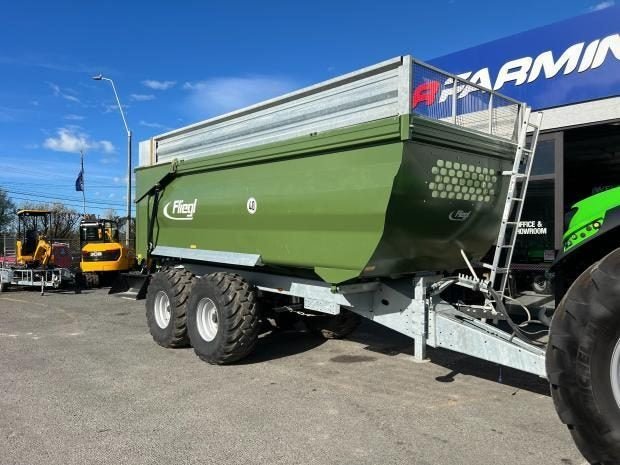

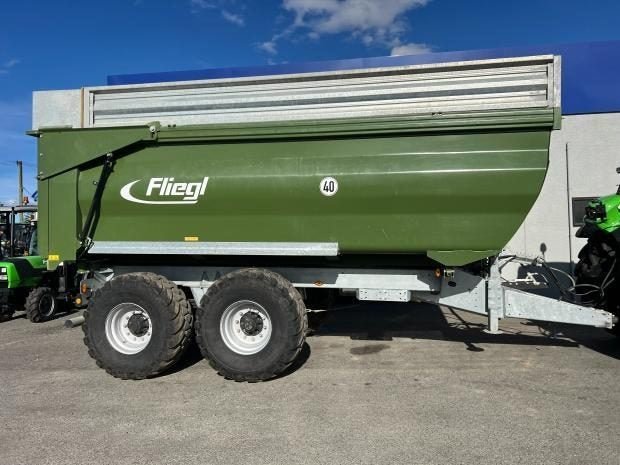

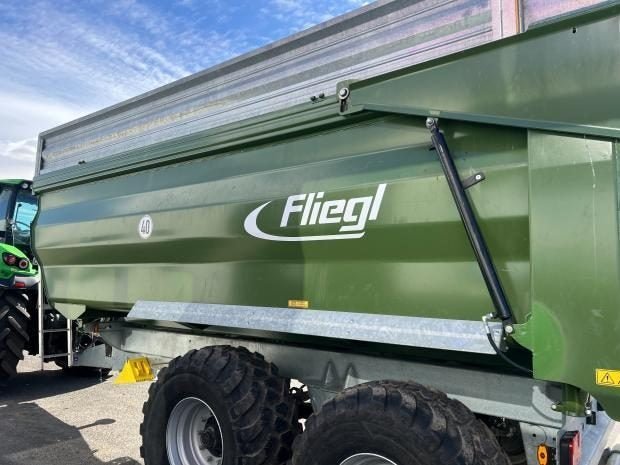

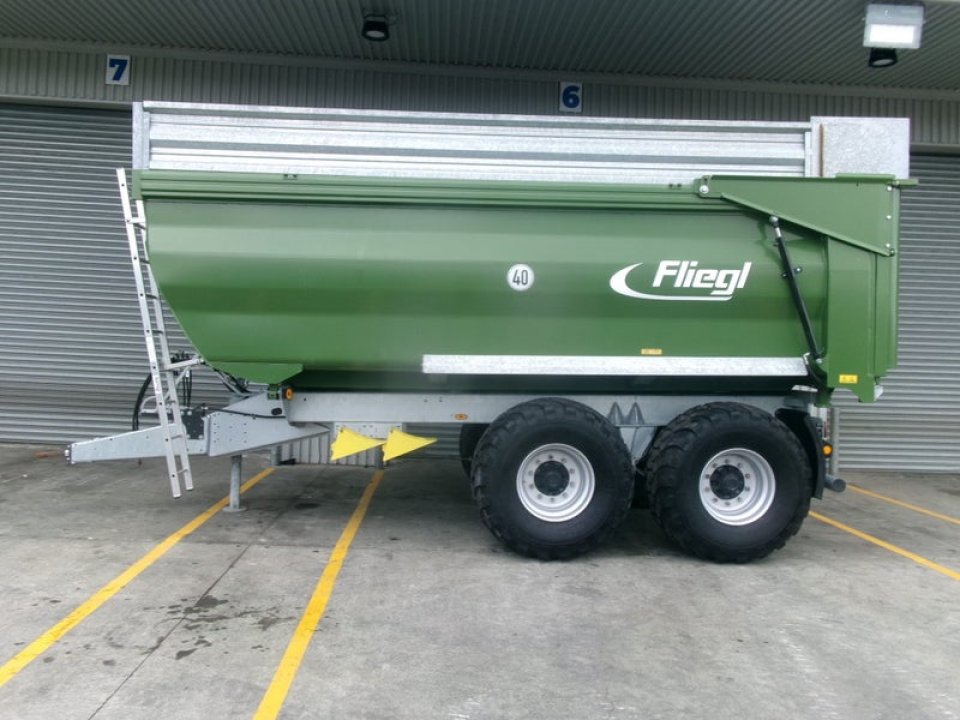

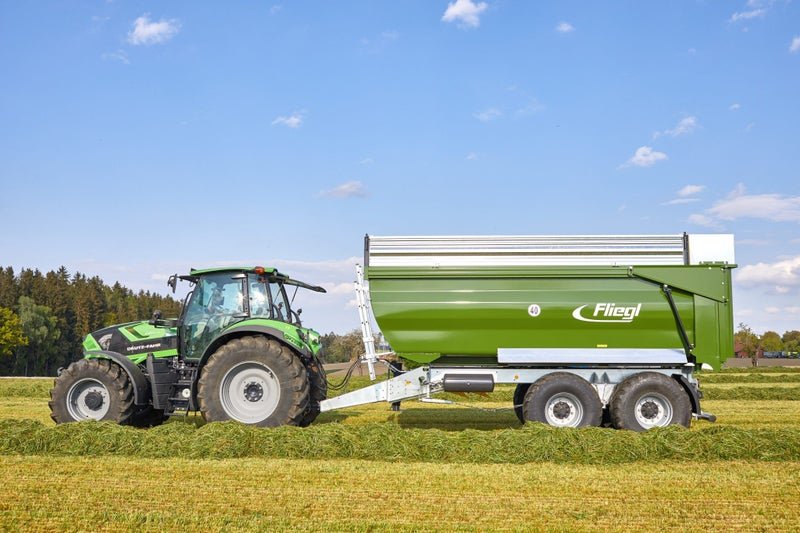

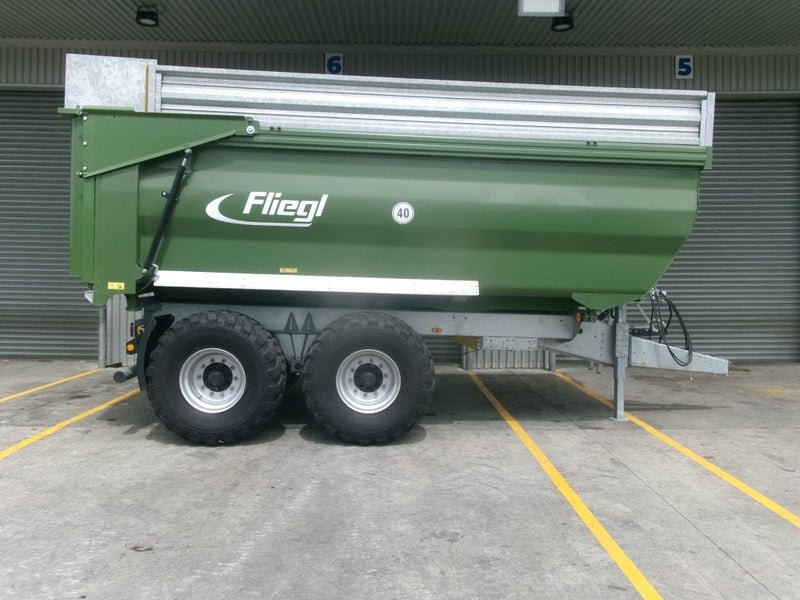

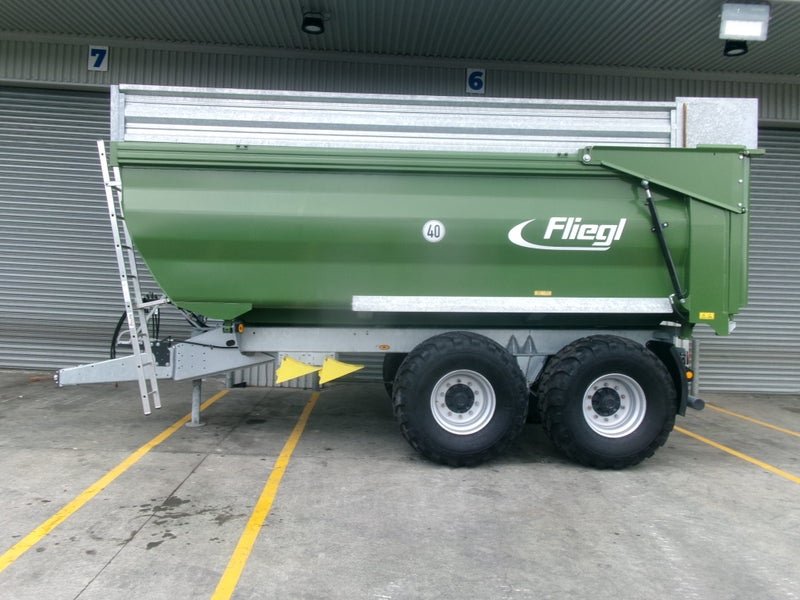

Fliegl TMK 190 Fox Silage & Grain Trailer

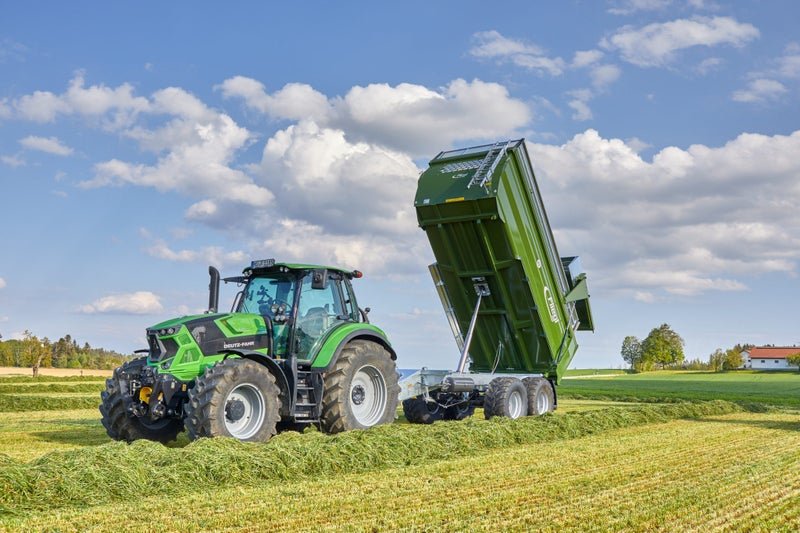

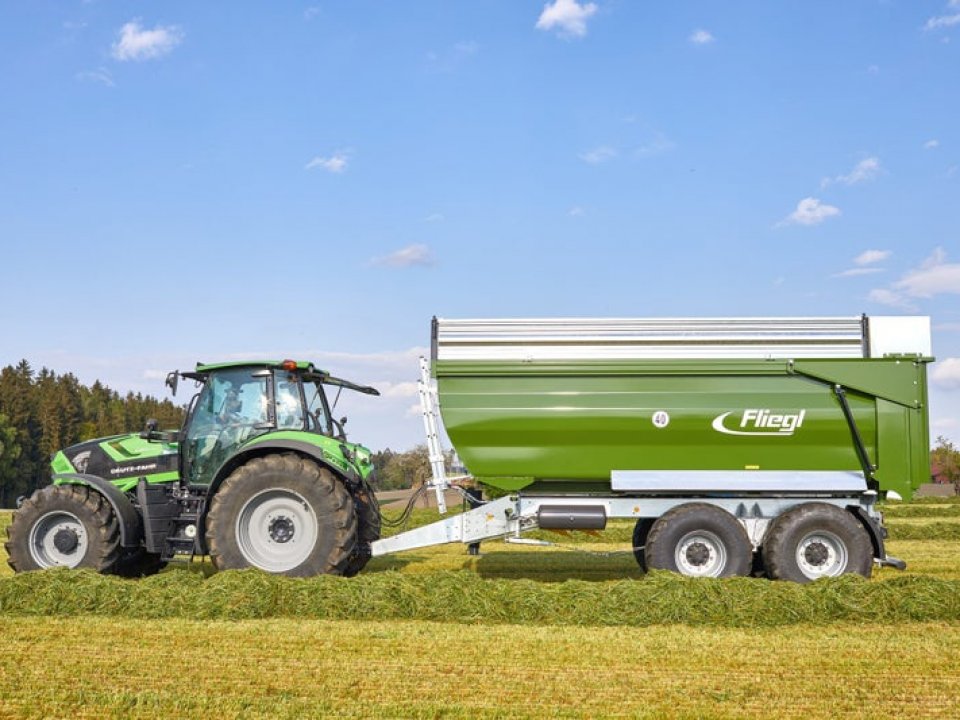

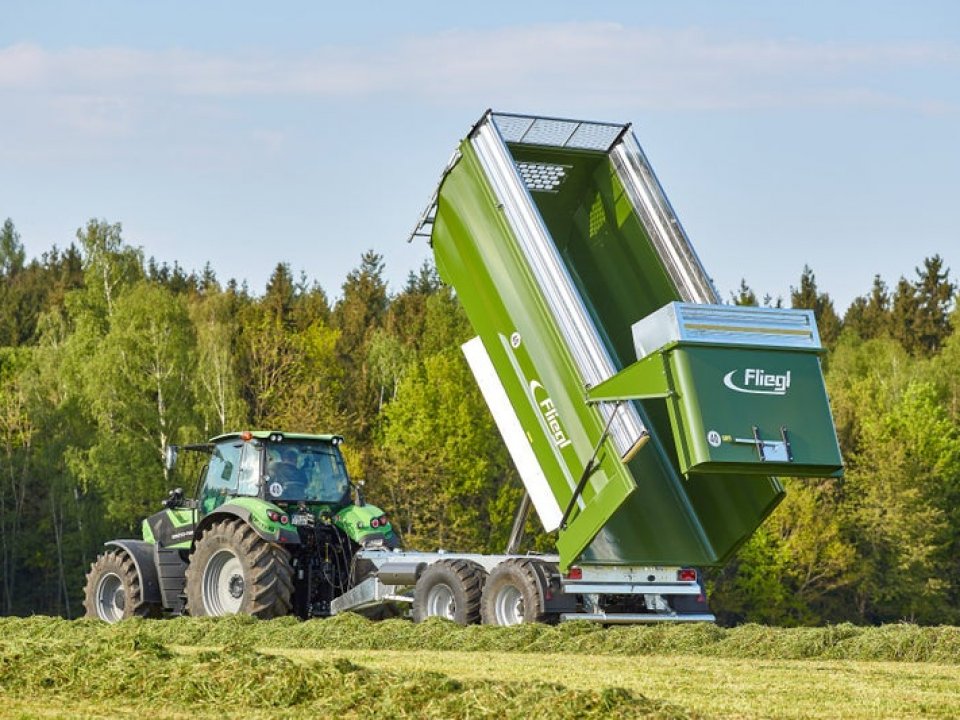

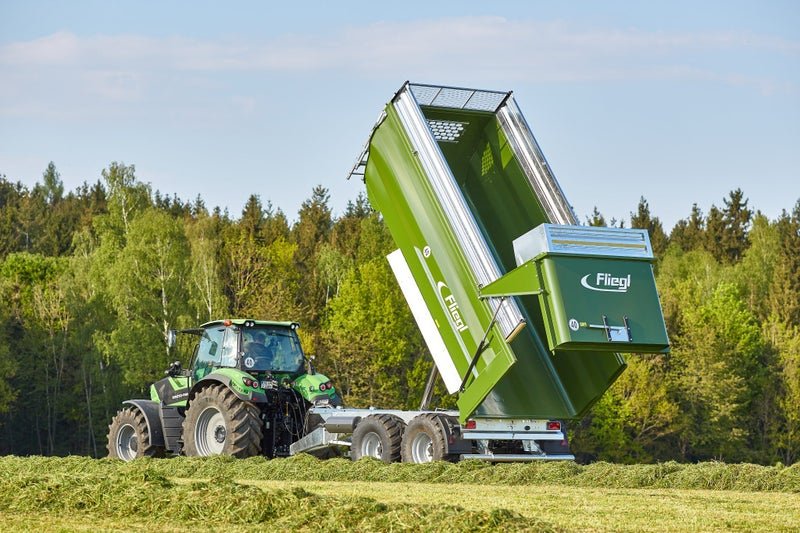

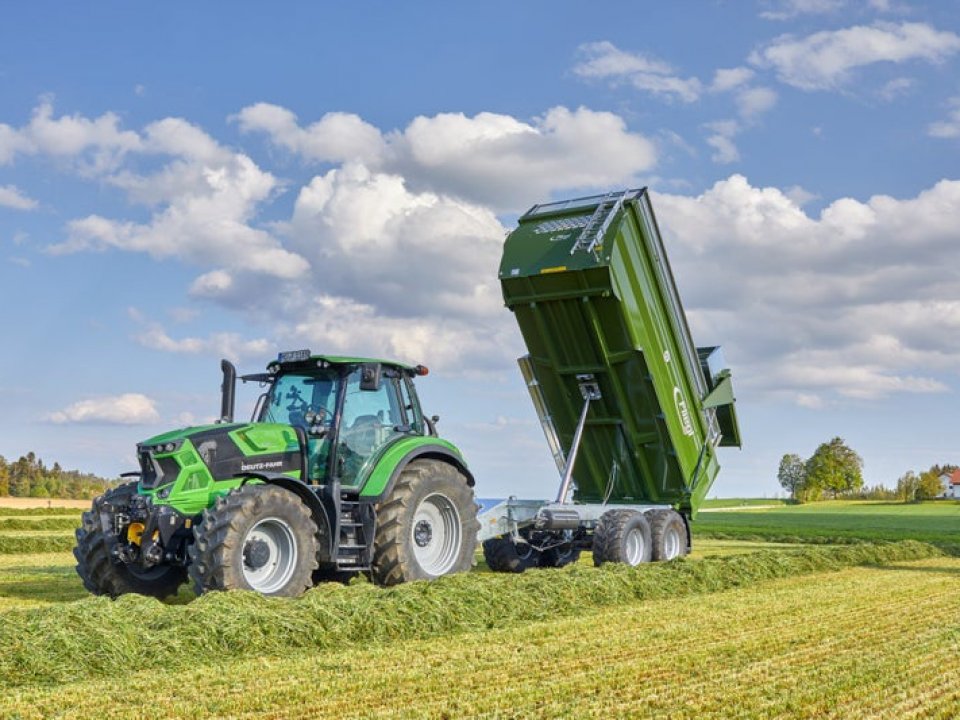

The TMK190 Fox is a robust and affordable dump trailer with a 27m3 capacity for silage, and a host of other features for making light work of harvesting and transport needs around the farm.
With a galvanised chassis
hydraulic support jack

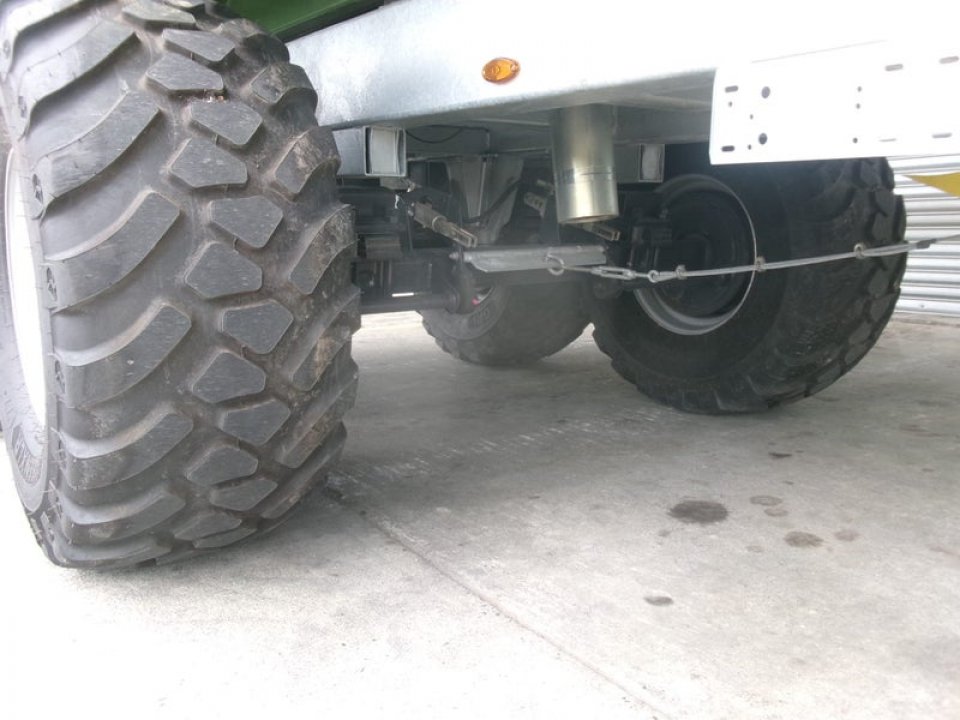

560/50 R22.5 tyres
hydraulic braked axles and tapered steel trough
The TMK190 is sure to tick many boxes.
Make:FlieglModel:TMK190 Year:2025Transmission:n/aVehicle body:Trailer - Tandem AxleStock Number:24441
