McHale 8090

McHale 8090 Swather
Ex Demo

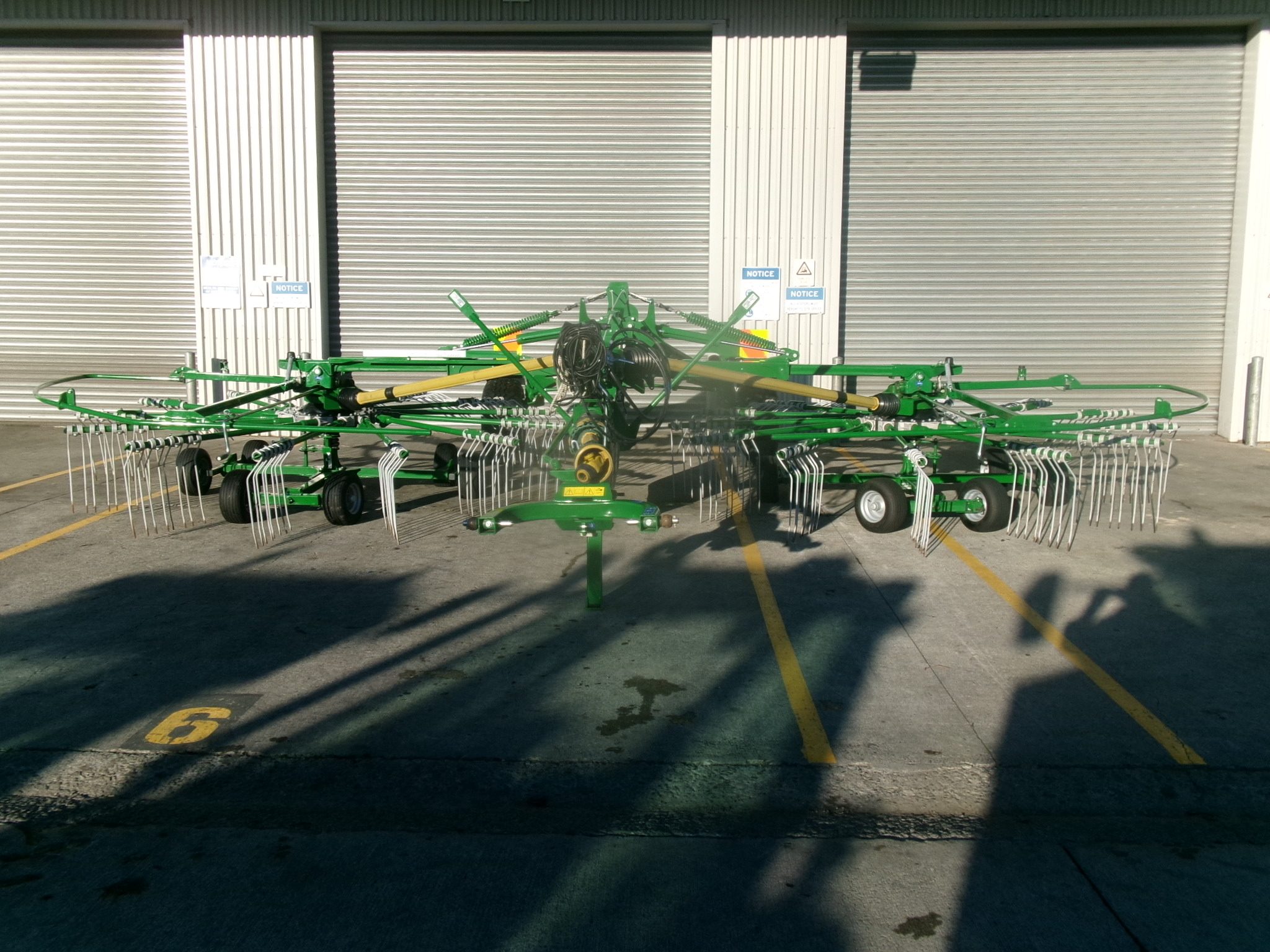

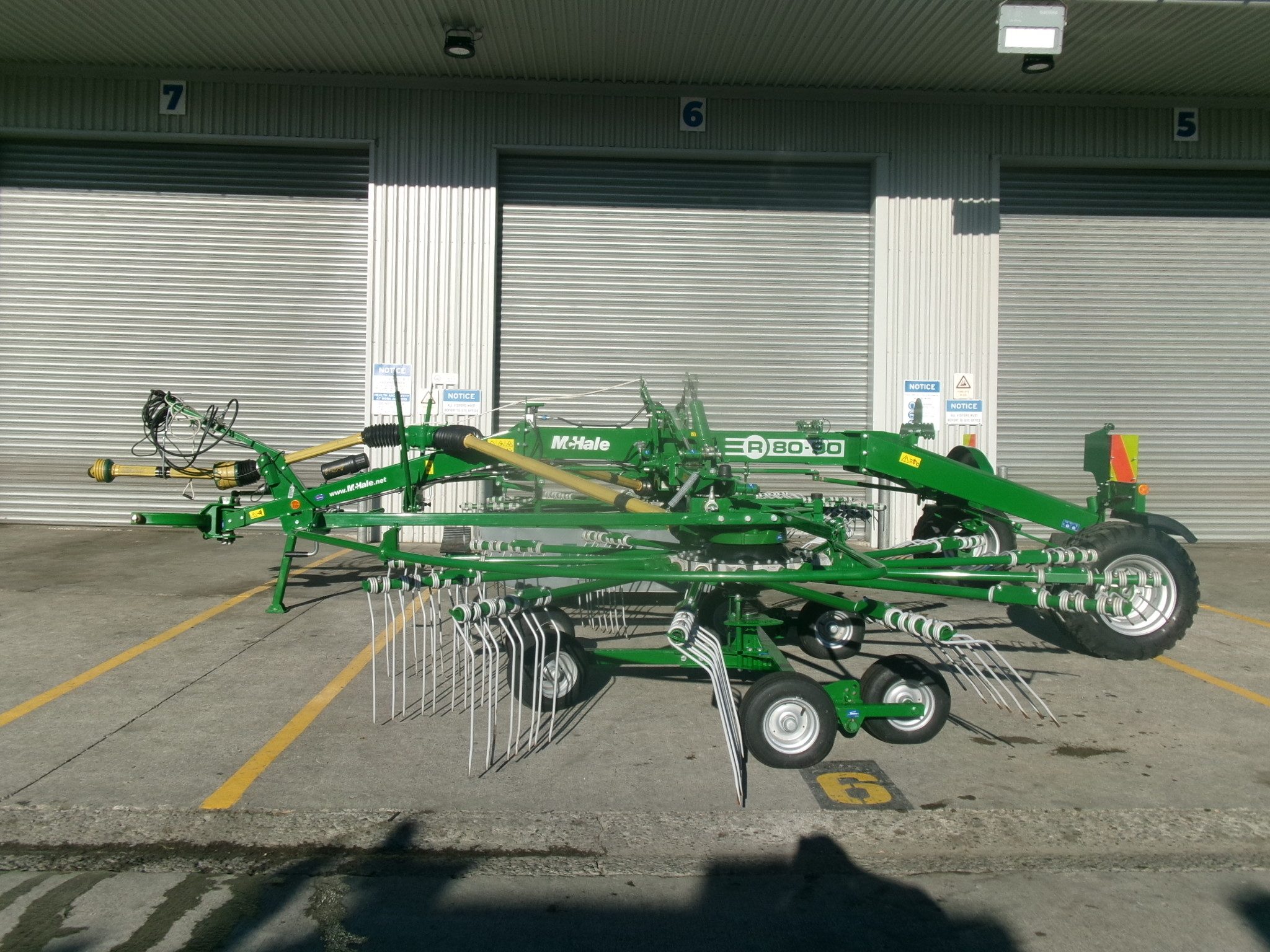

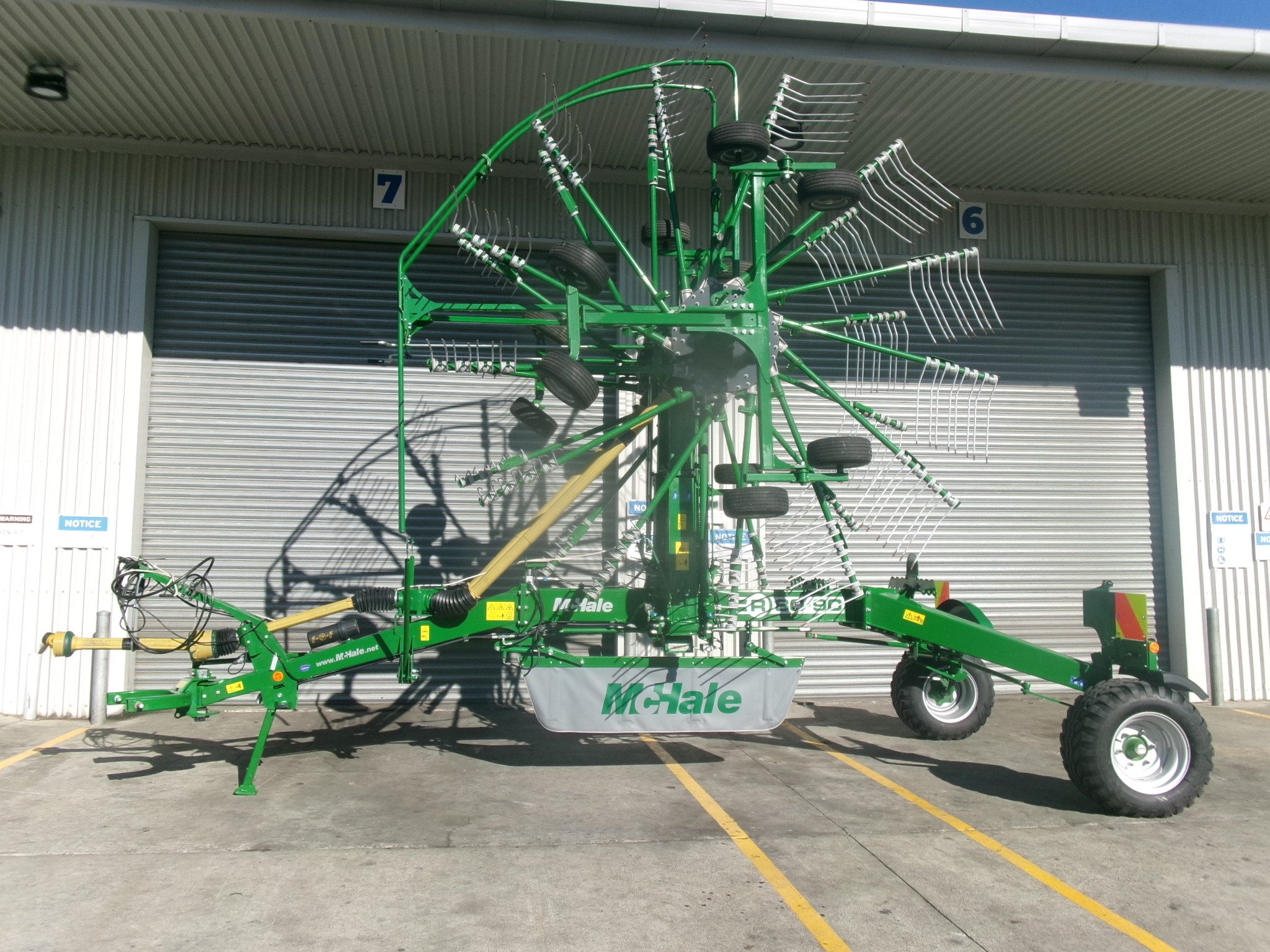

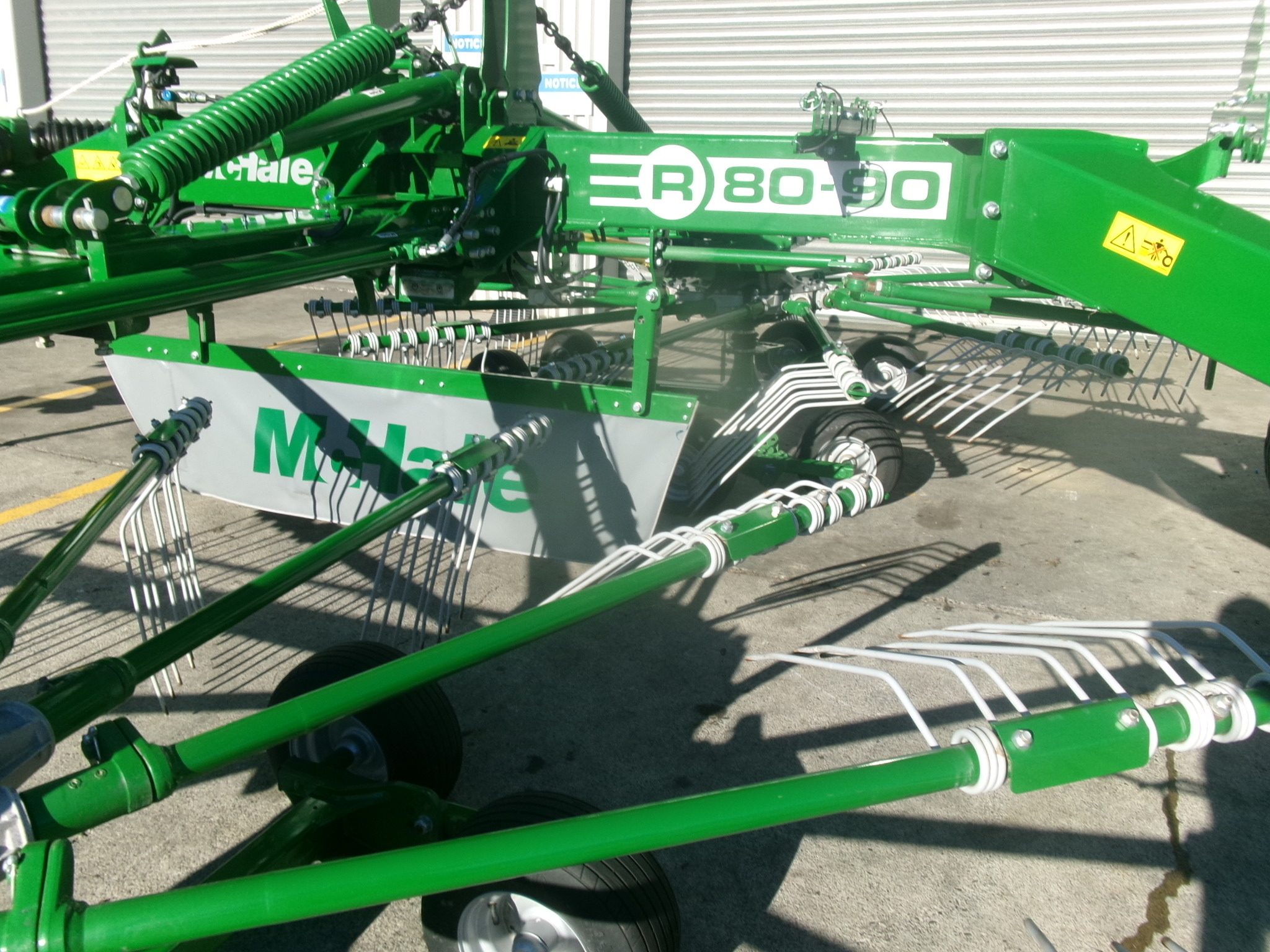

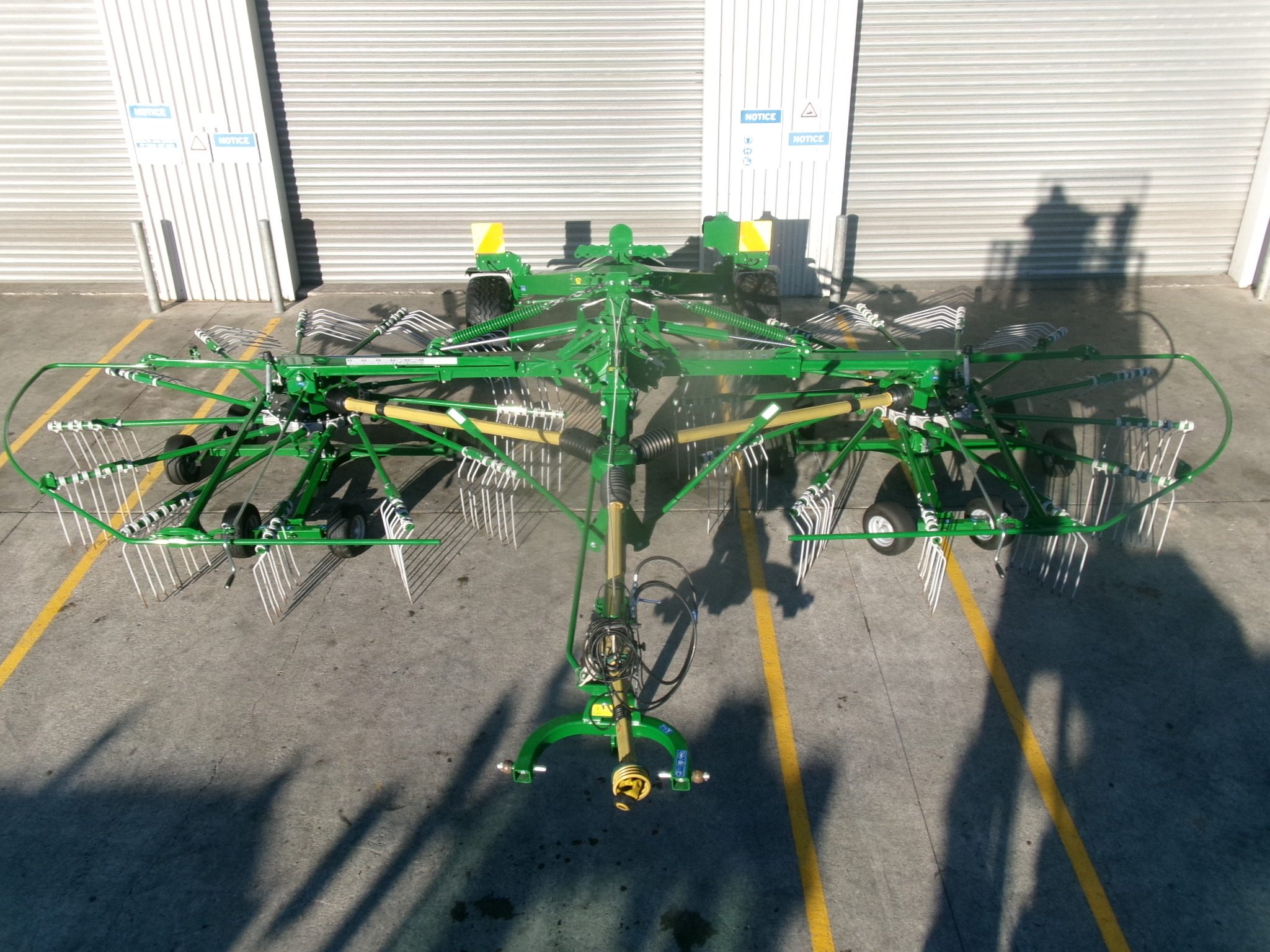

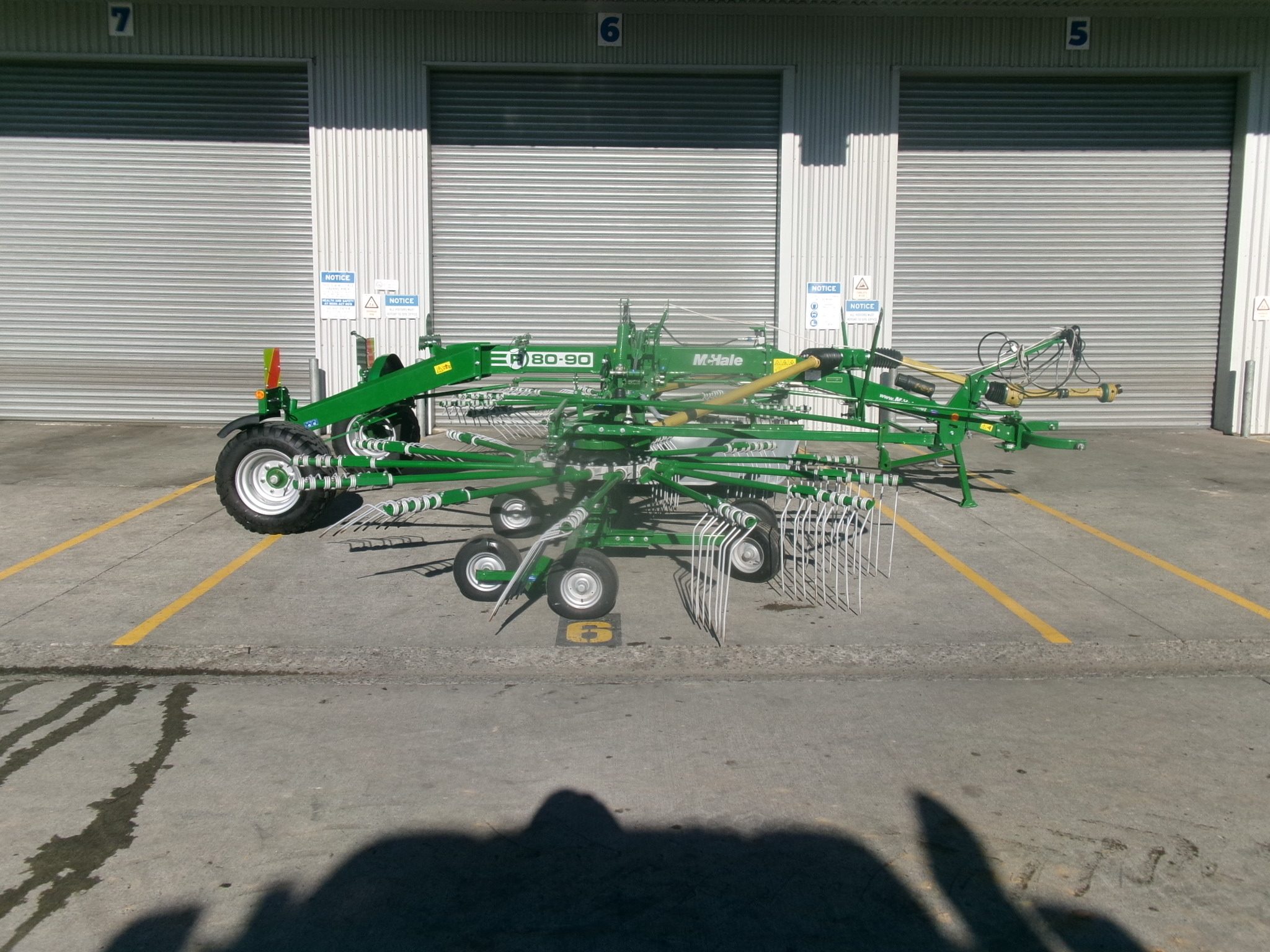

The McHale R8090 Centre Delivery Rake is the largest rake in the range with a working width of 8.0m (26 3) to 9.0m (29 6).
The McHale R8090 rake can gather four, 3m swaths into one when raking mowed crop and also has the ability to form a uniform swath from crop which is left fully spread after mowing.

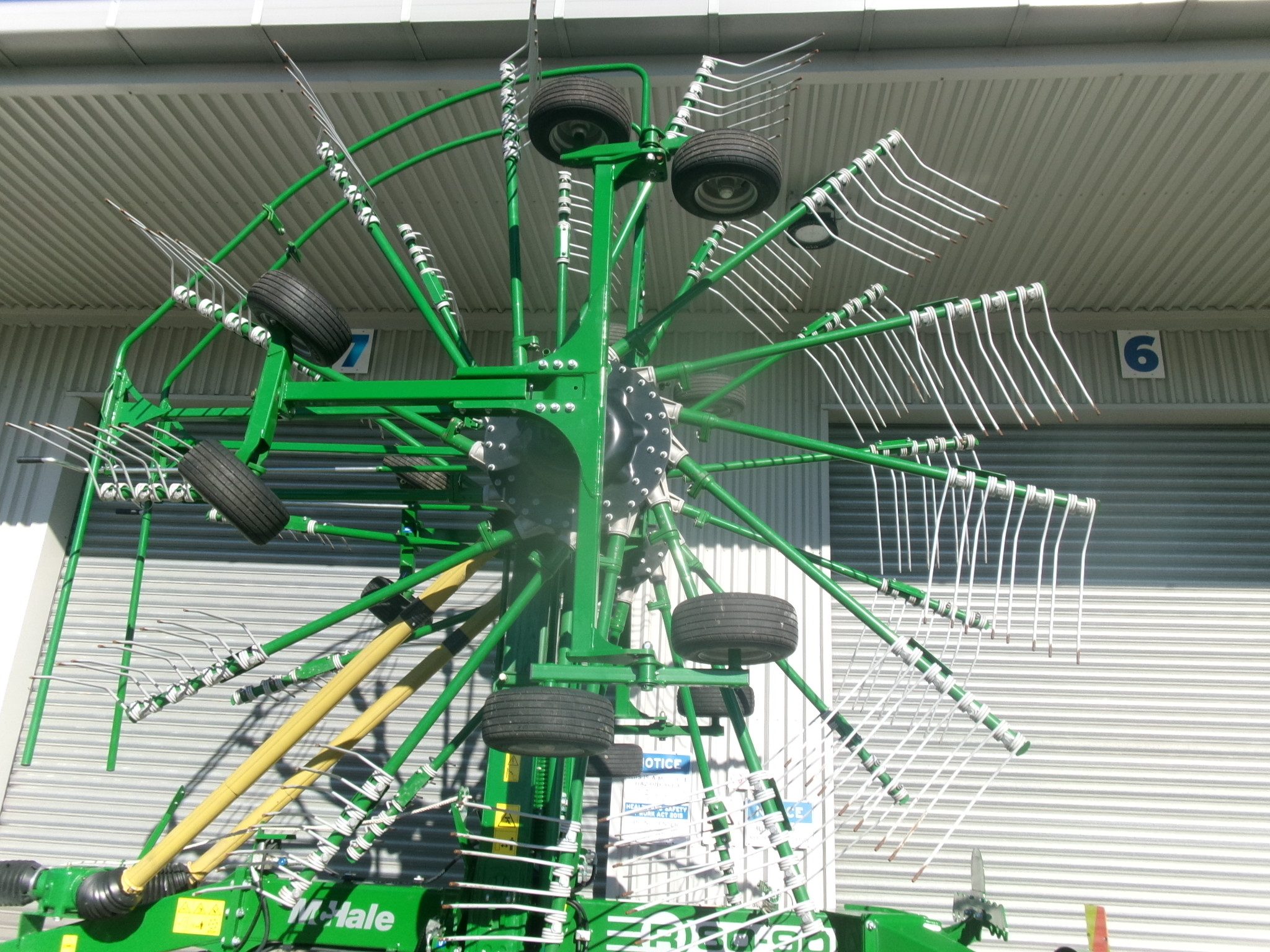

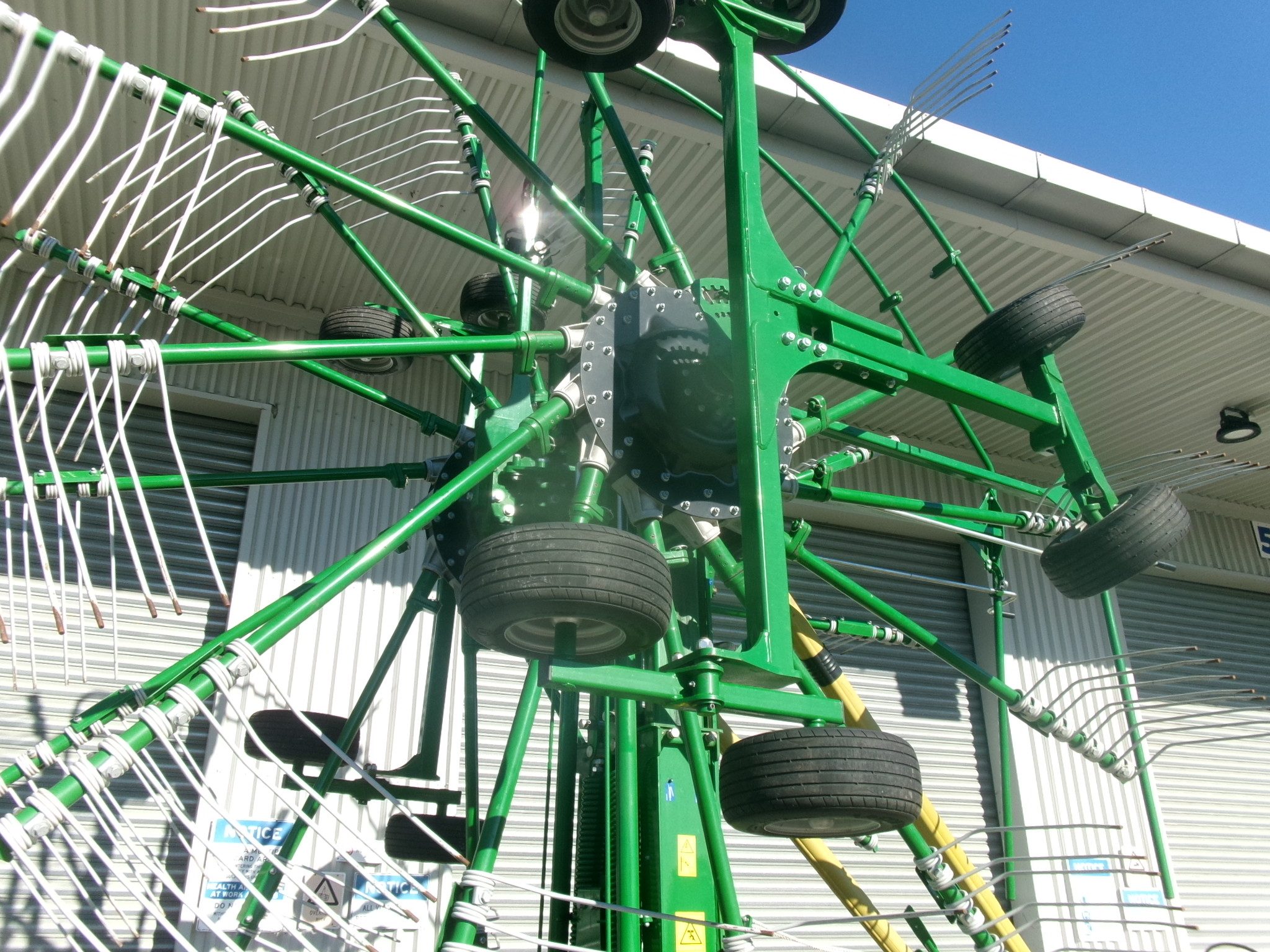

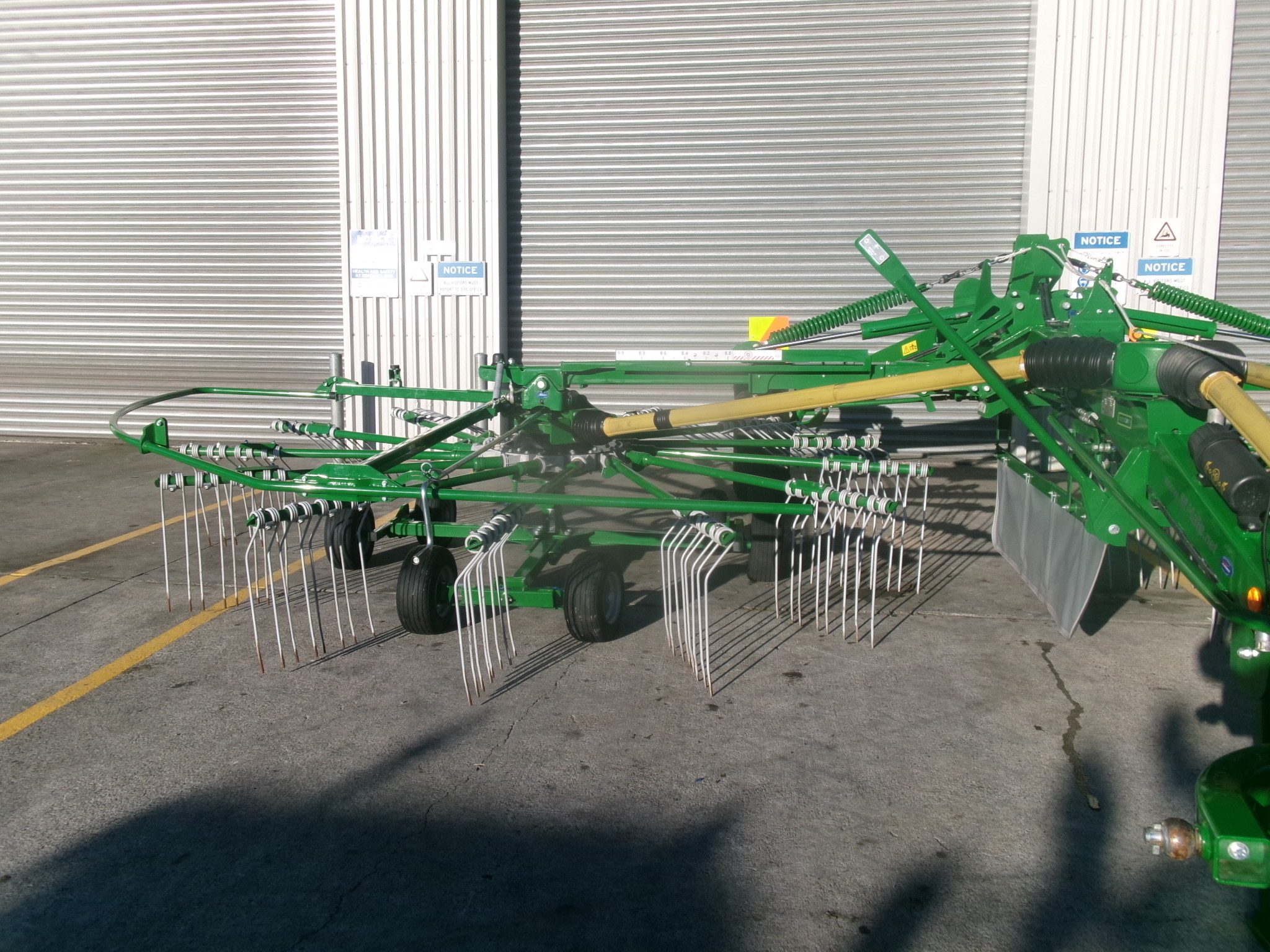

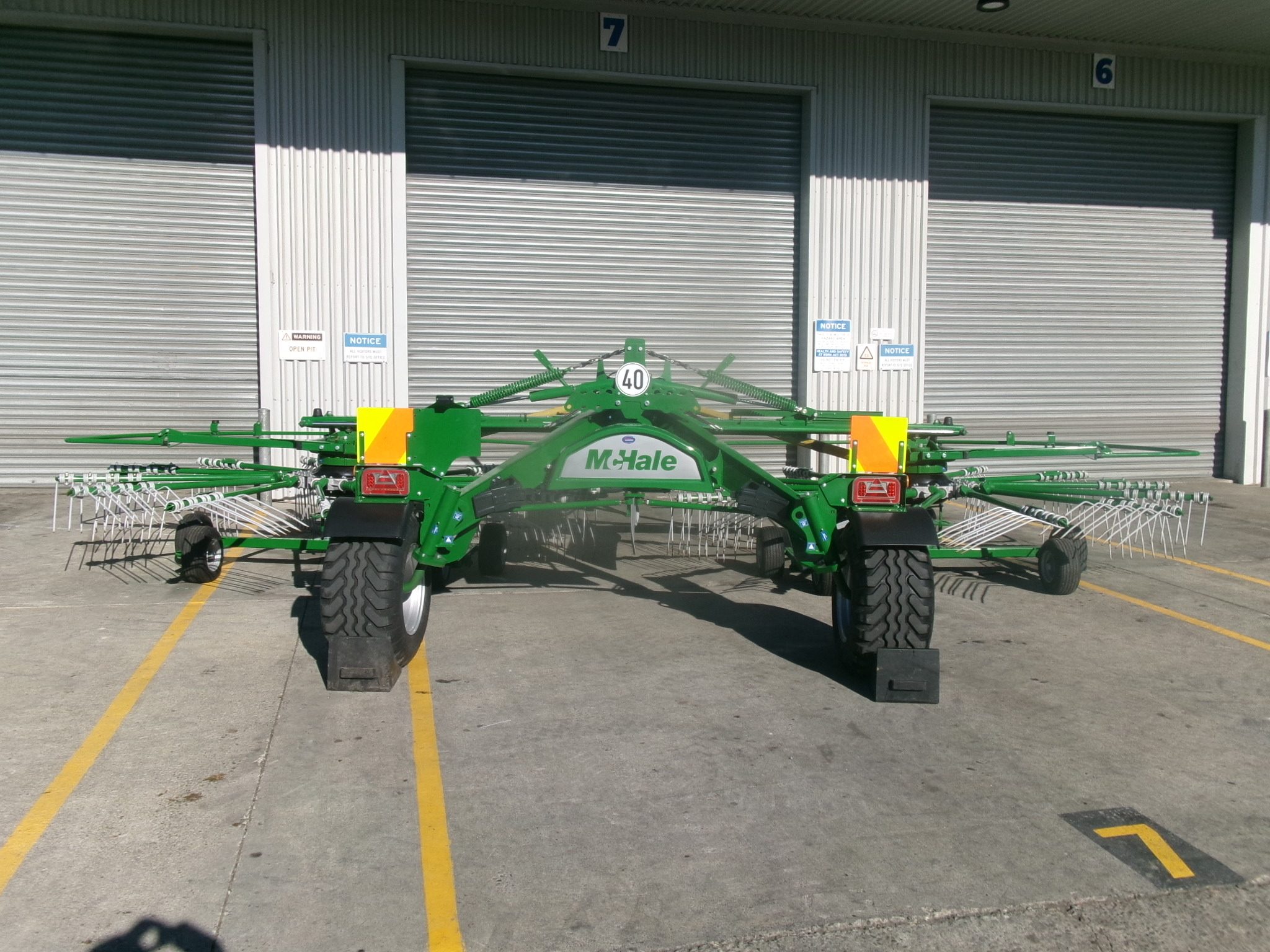

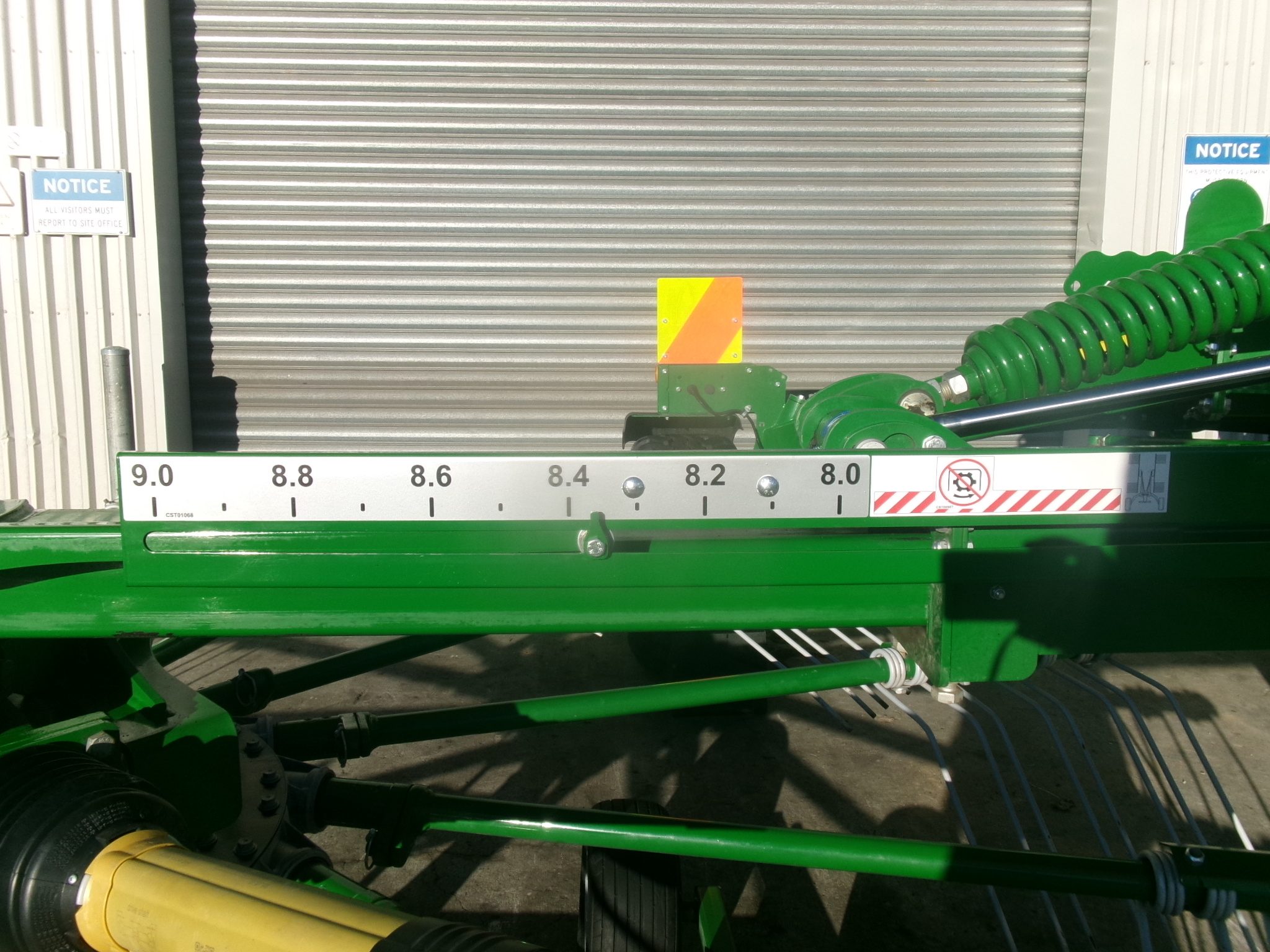

Like the smaller models in the range, the McHale R8090 rake is fitted with a number of high output features as standard, such as in-cab width adjustment, pivoting headstock, steering axle and a 3.8m rotor mounted on a 6-wheel bogie which is equipped with 13 tine arms.
All McHale rakes come with Rotor Height Adjustment as standard, ensuring a clean delivery of crop to the swath. By adjusting the height of the rotors, the operator can reduce soil contamination in the swath.

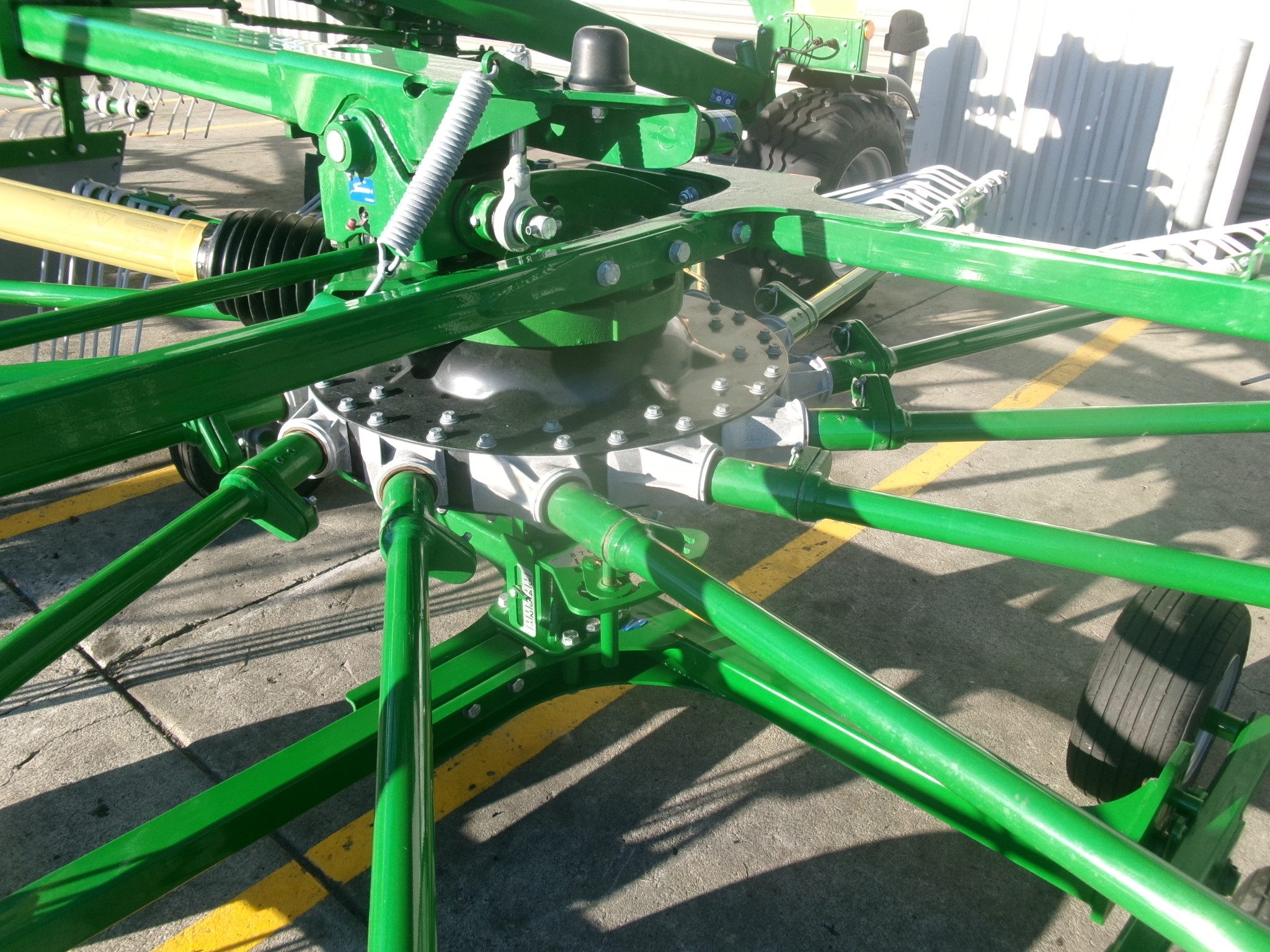

he rotors on all McHale rakes are controlled by a smooth-running cam track. The grease filled cam track is a sealed unit providing a longer life and uses two high quality bearings on each tine arm. These
bearings are specially designed and sealed in order to reduce wear. If required, the rotor arms can be easily replaced by removing just three bolts.

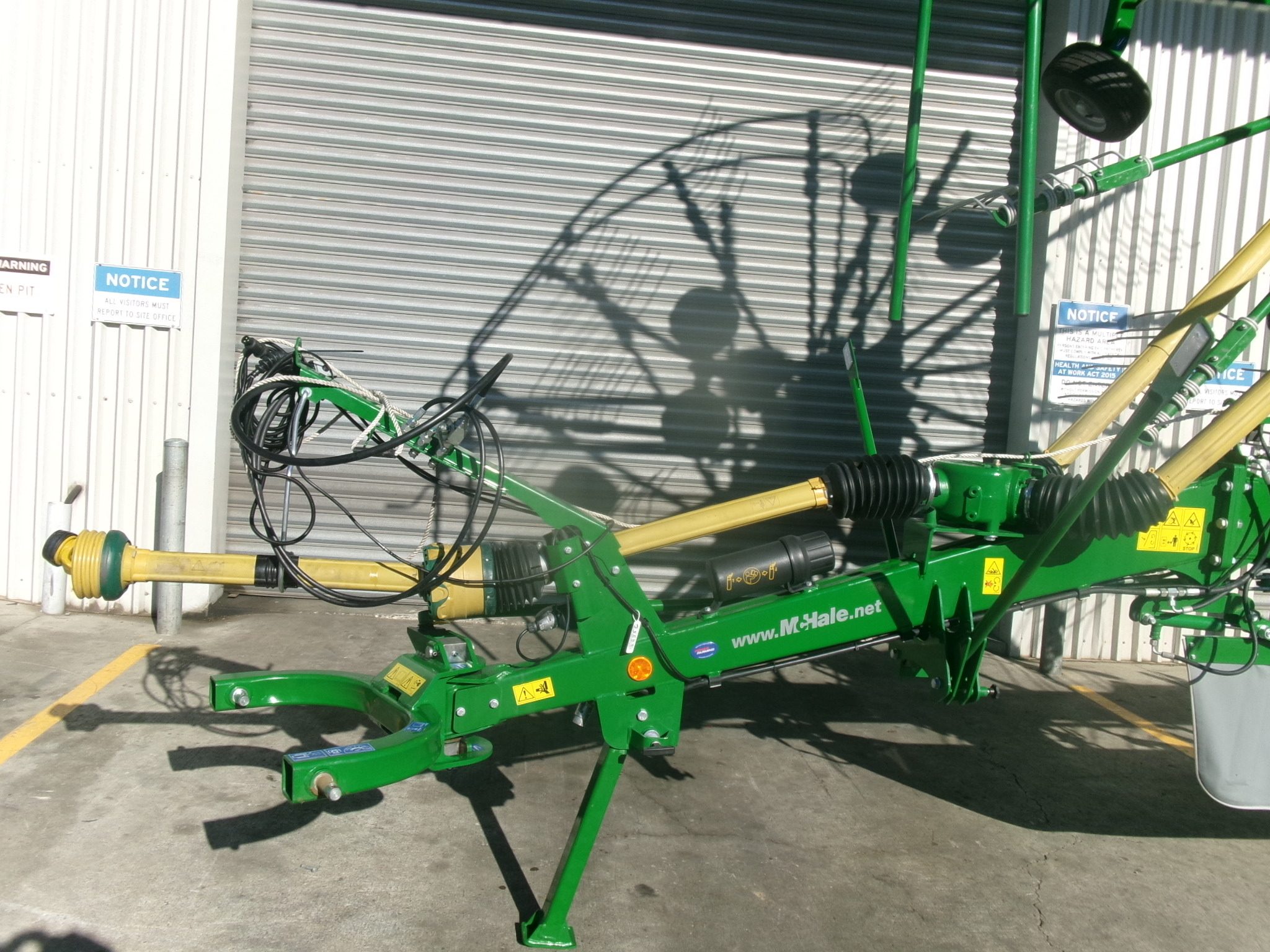

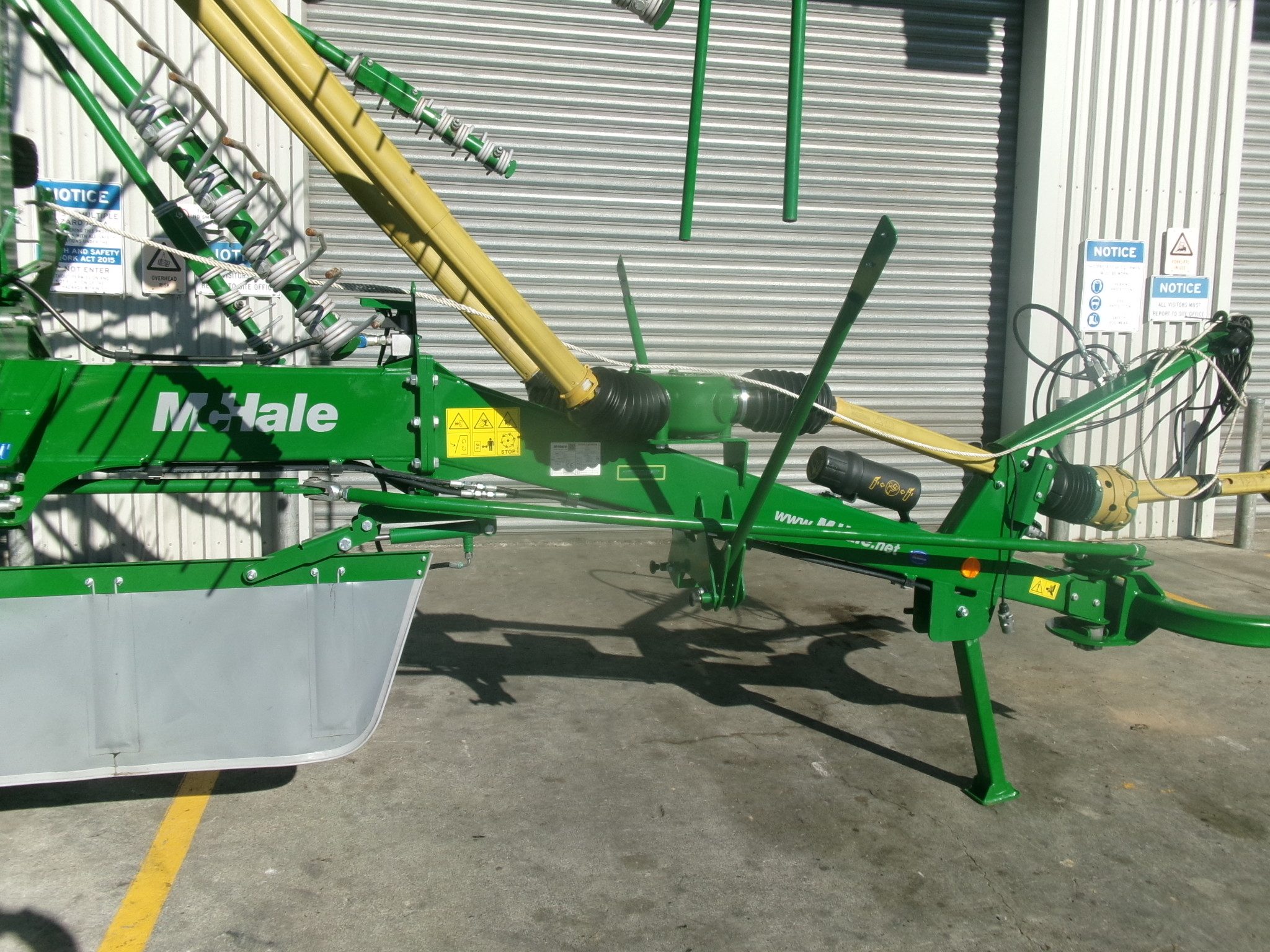

he McHale rake range is fitted with a wide-angle Y-Shaped drive line which is positioned on top of the chassis. Power is transmitted through heavy-duty tubing using Walterscheid drive shafts.

The drive shaft covers allow for easy and simple access to all greasing points without the need for any untidy anti-rotation chains on the shaft guards. The use of these guards results in improved operator safety by delivering guards with a longer service life.


Only 9m unit available in New Zealand this season
