Fliegl TMK190

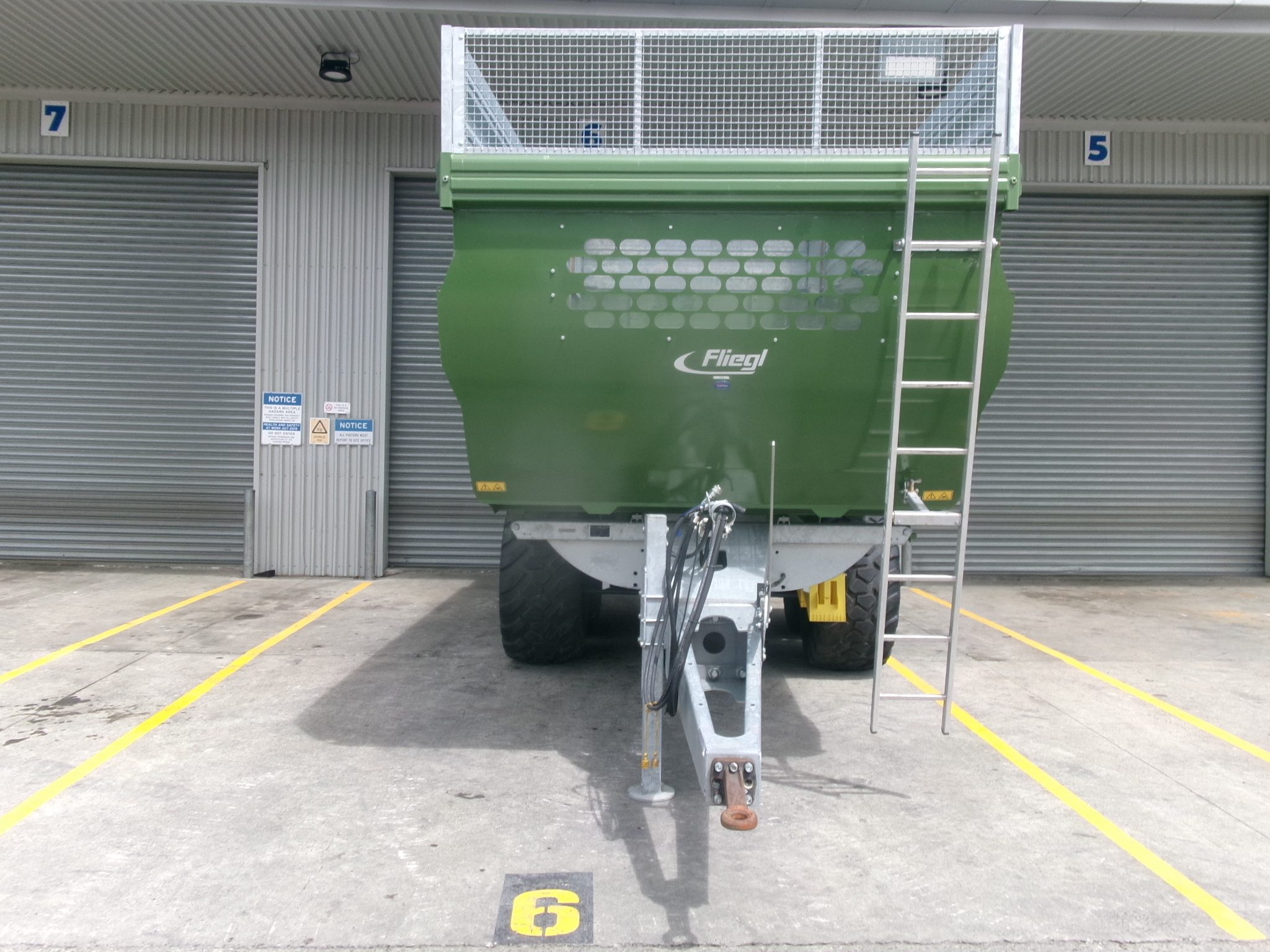

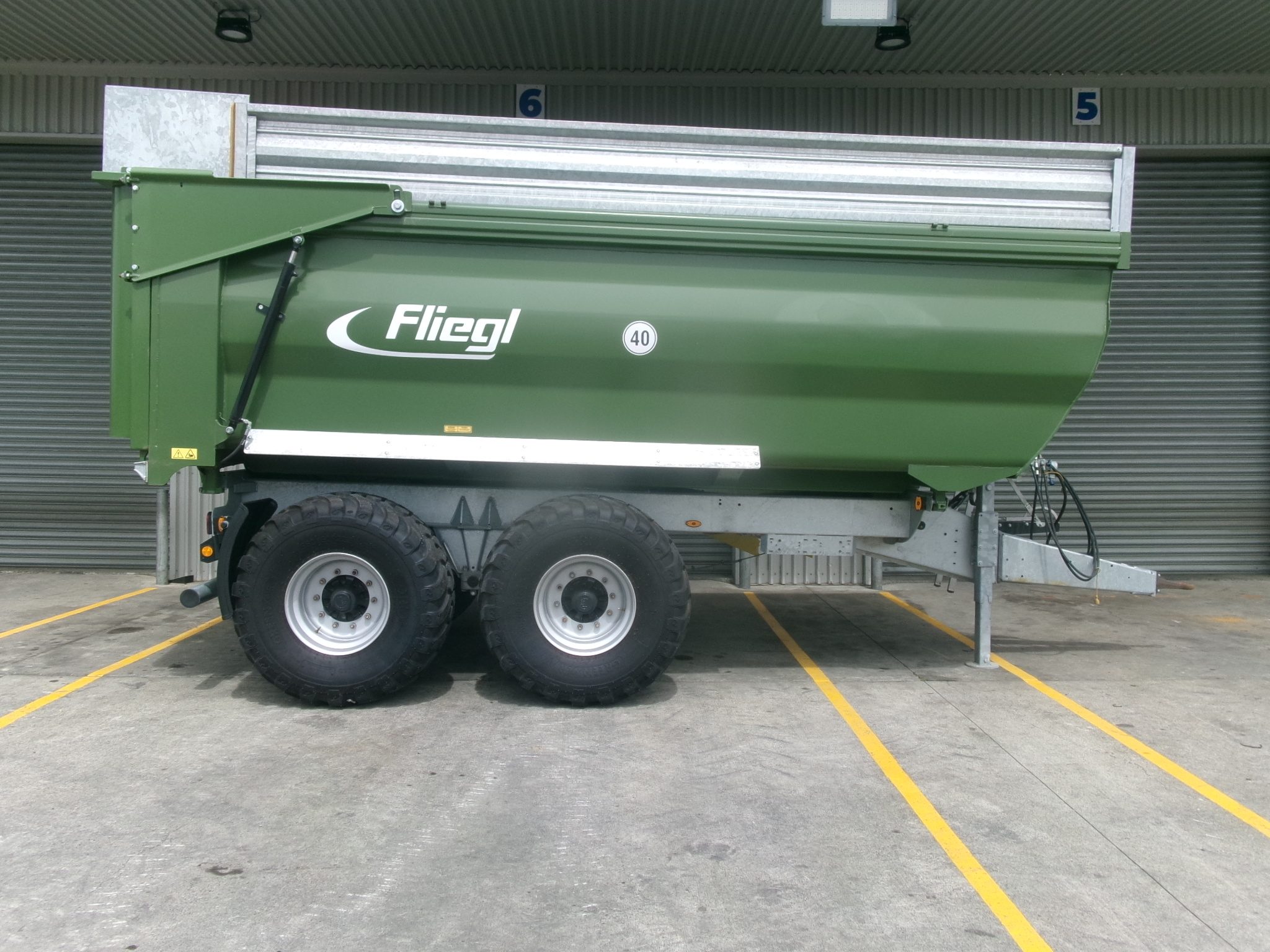

Fliegl TMK 190 Fox Silage & Grain Trailer

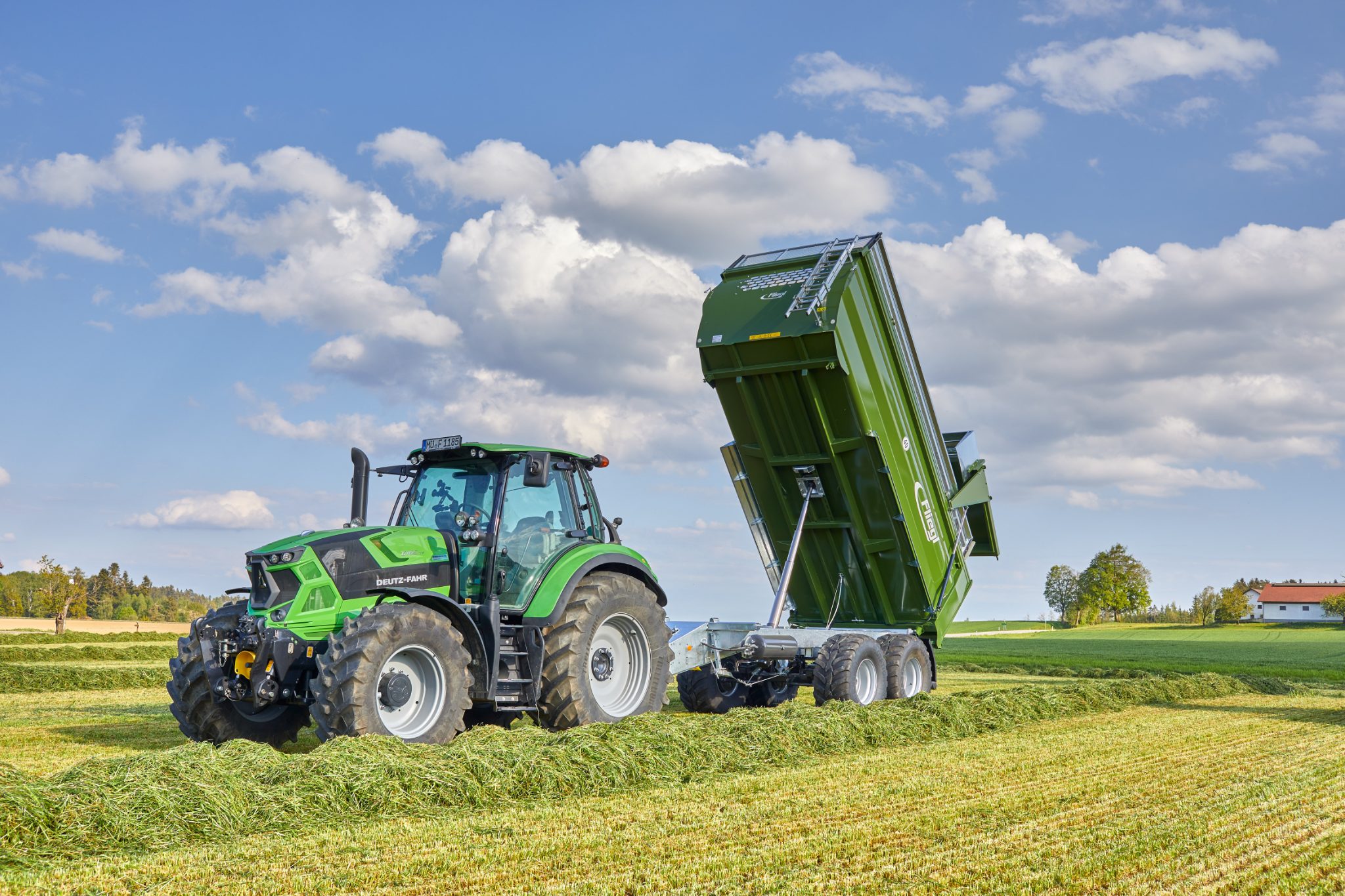

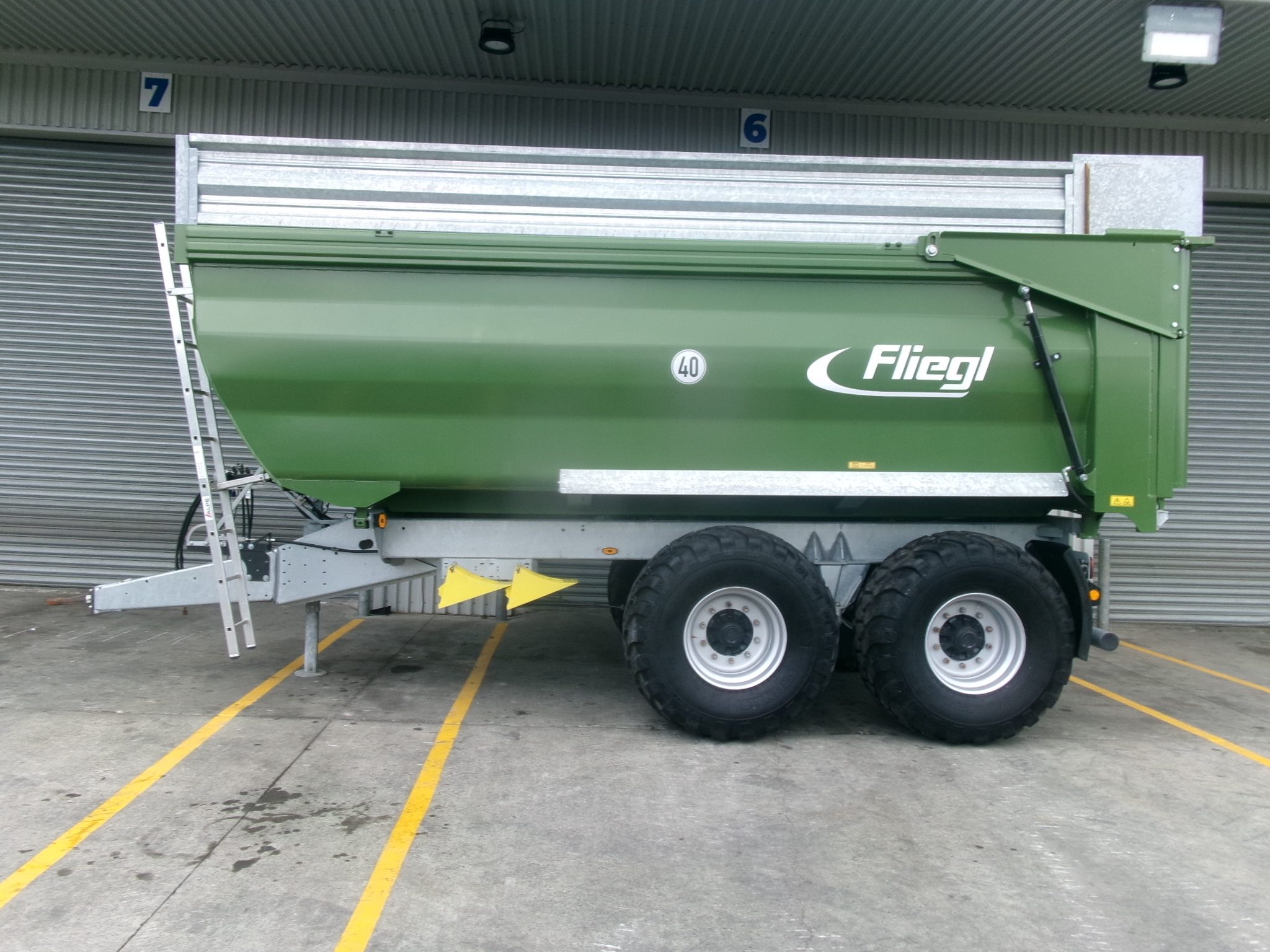

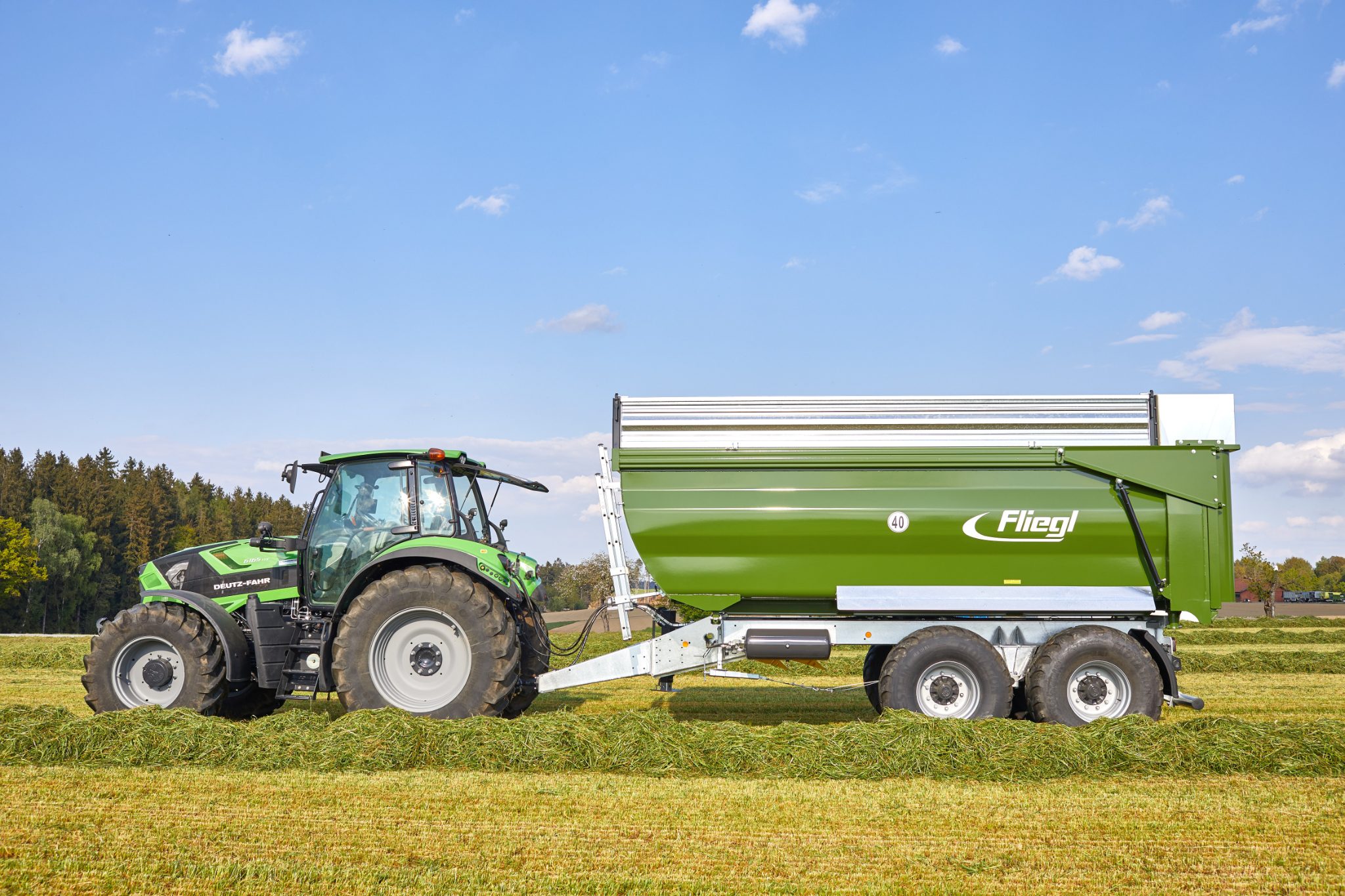

The TMK190 Fox is a robust and affordable dump trailer with a 27m3 capacity for silage, and a host of other features for making light work of harvesting and transport needs around the farm.
With a galvanised chassis
hydraulic support jack
560/50 R22.5 tyres
hydraulic braked axles and tapered steel trough
The TMK190 is sure to tick many boxes.

Key Features
Tandem chassis
Permitted total weight 19,000kg, drawbar load 2000kg
Profi chassis frame, galvanised
Trough 5950mm (total length with bulkhead bevel and 300mm tailgate) x 2320/2220mm (tapered) x 1500 mm, all-steel trough primed and 2-component coating, dark green, with front inspection window

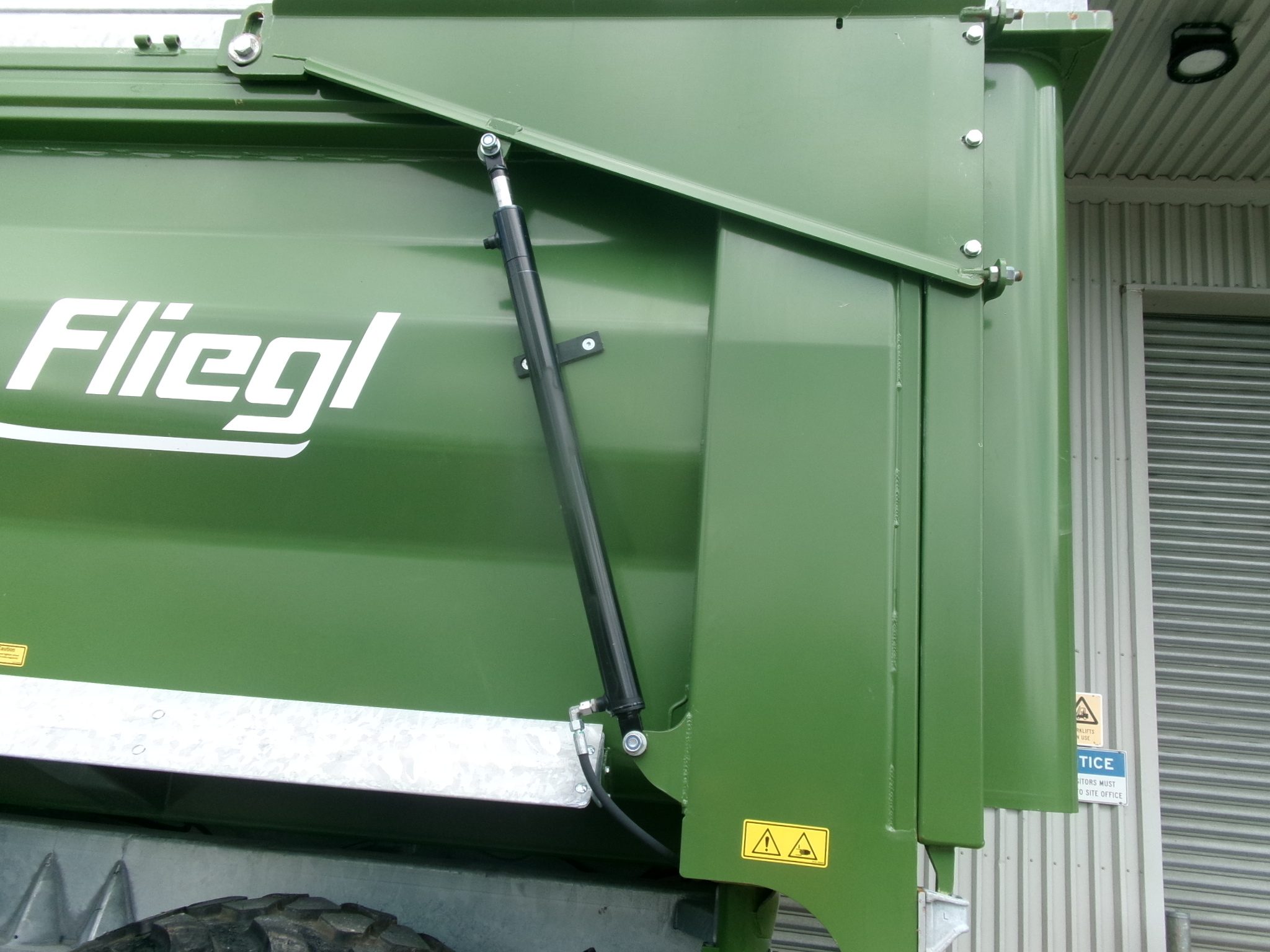

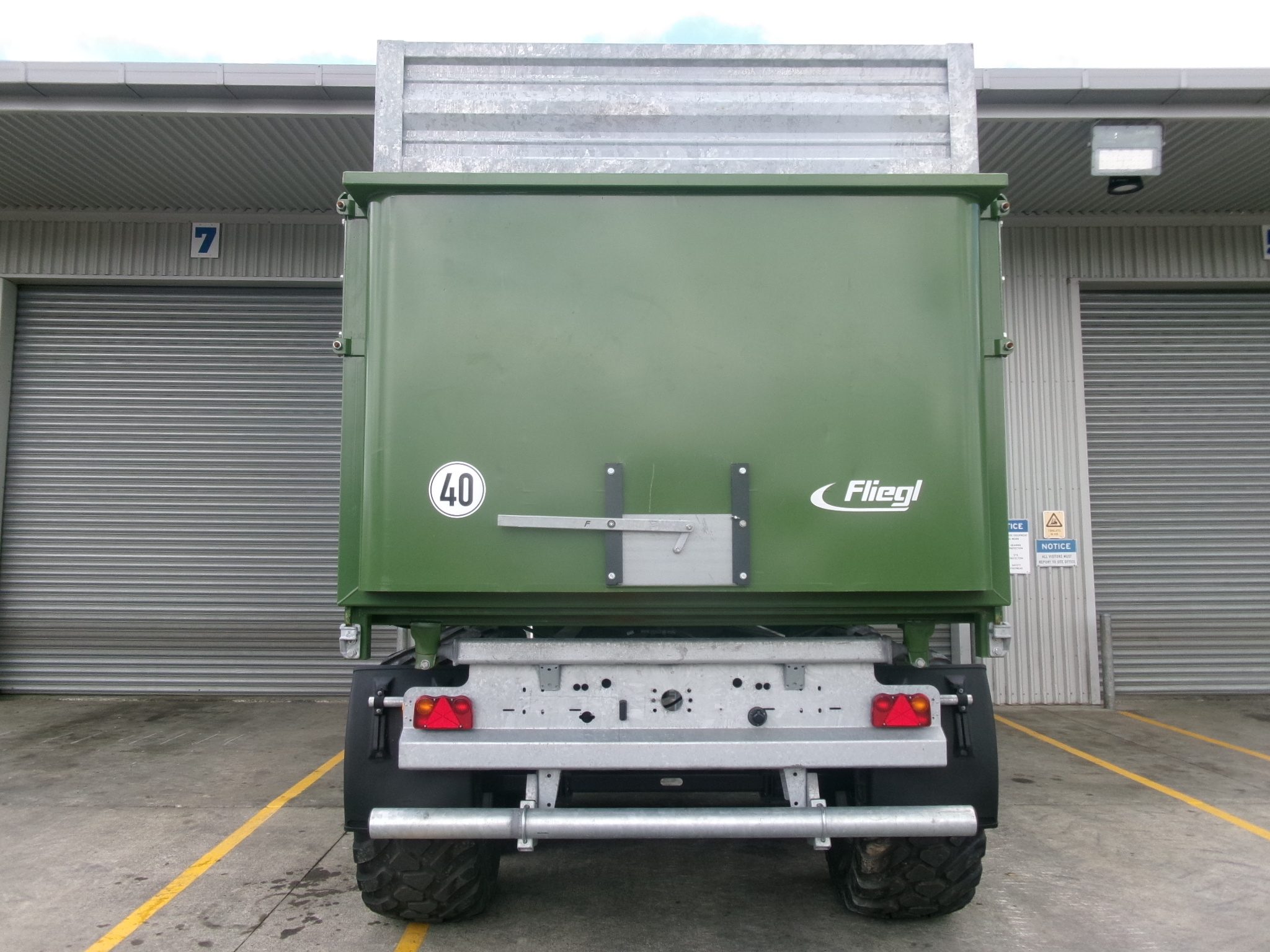

Hydraulic large-volume tailgate, 300mm depth with grain slide 400mm x 230mm

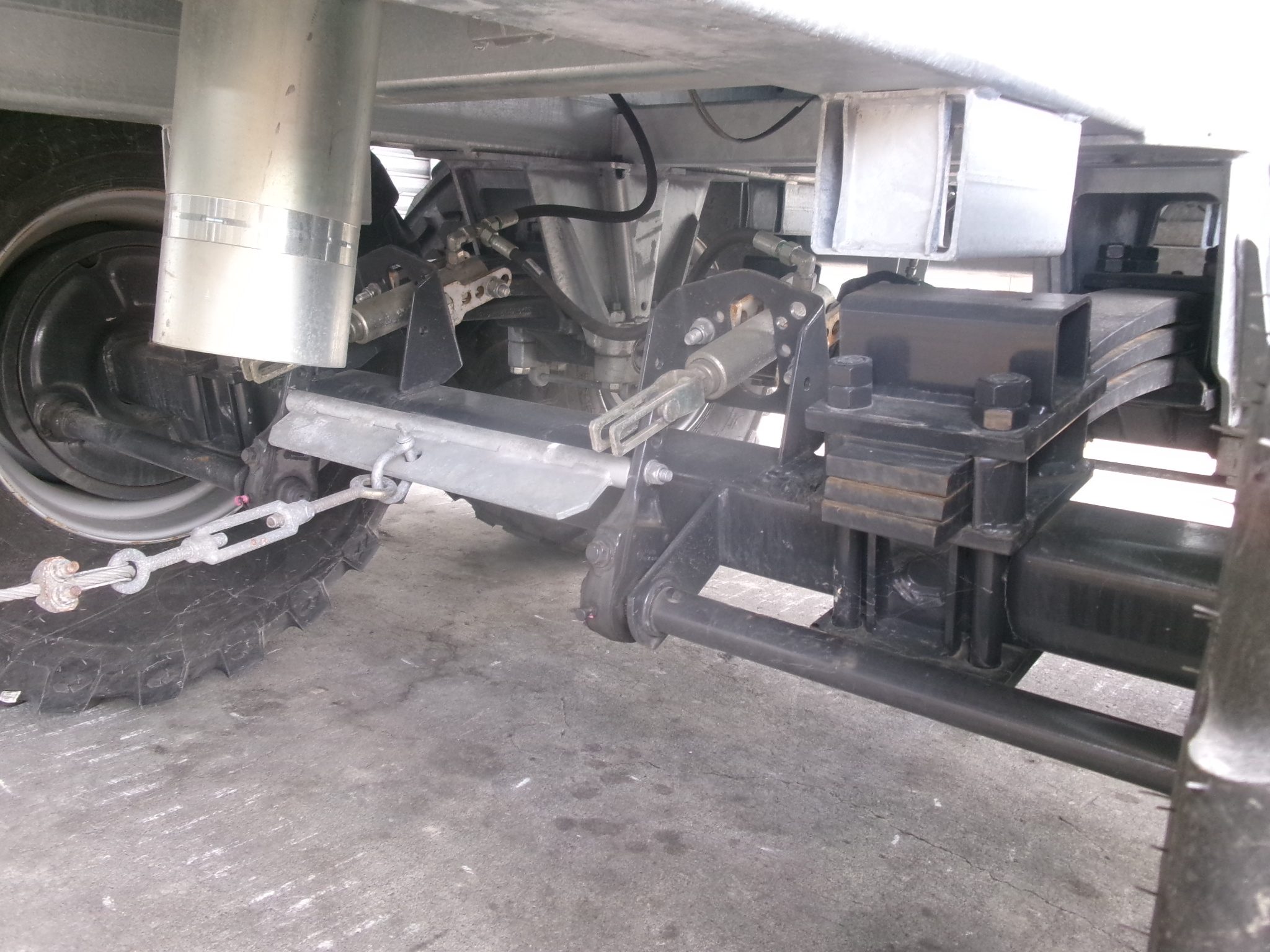

Parabolic suspension, titan assembly

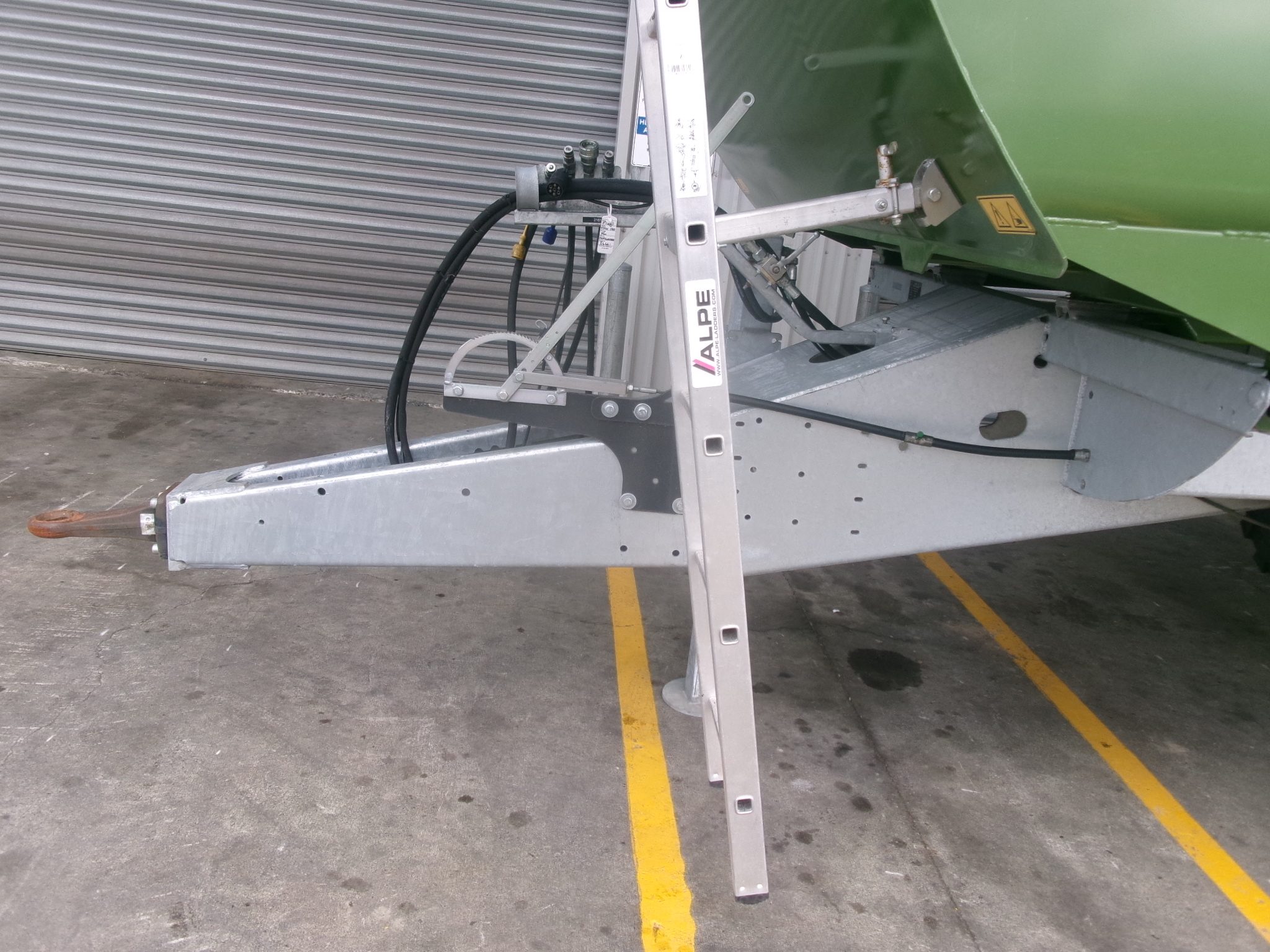

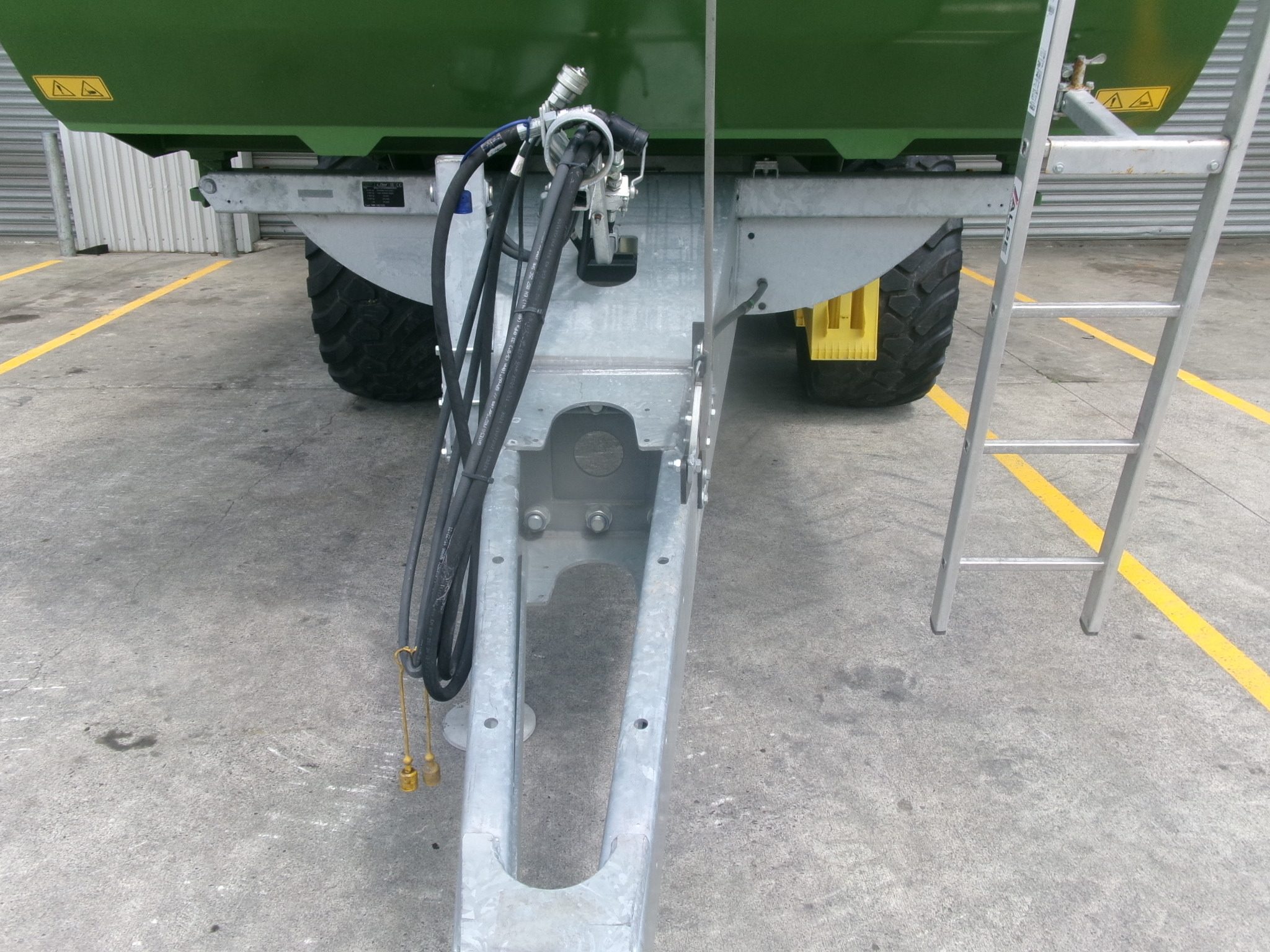

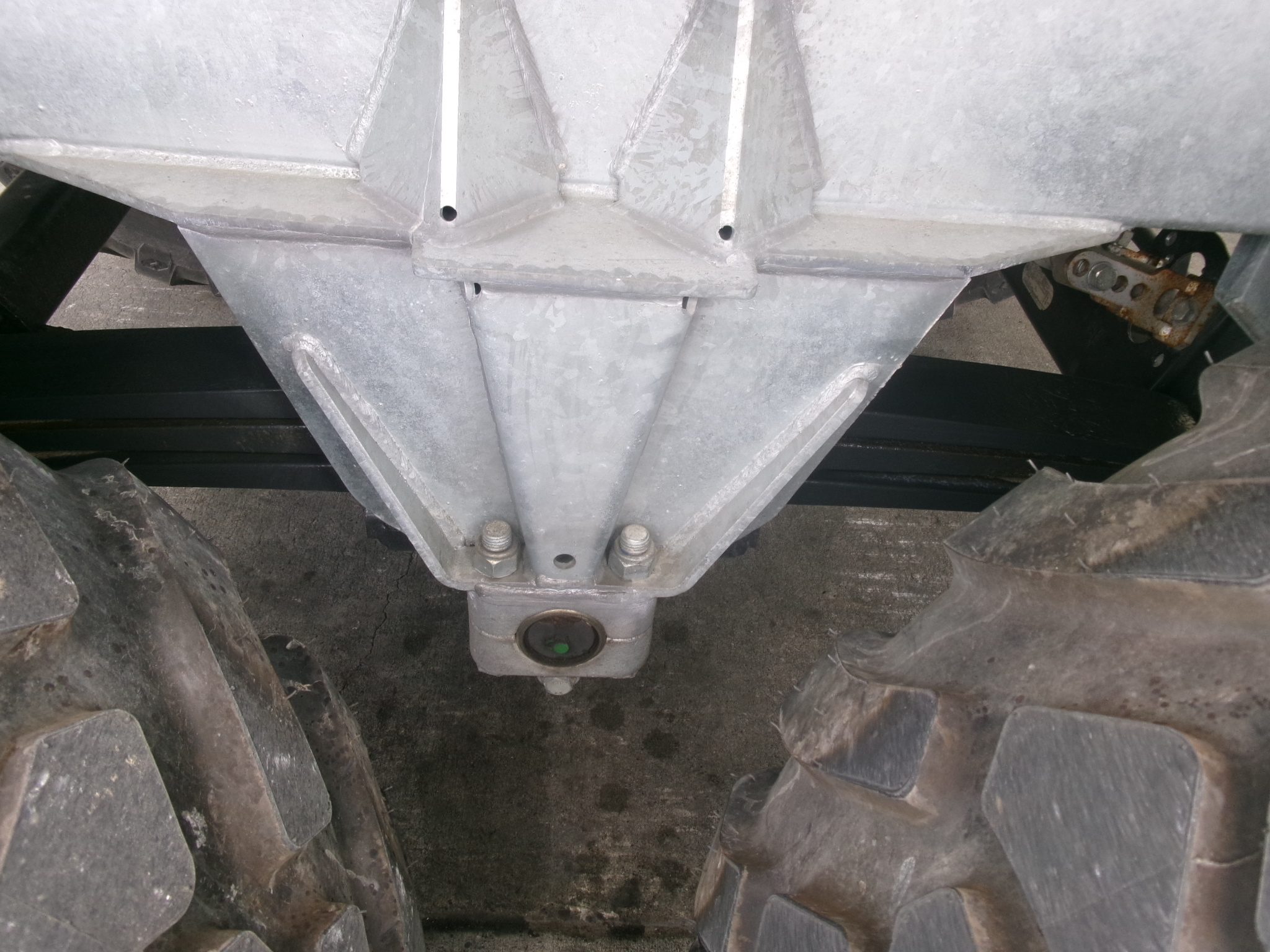

Rigid drawbar, bottom hitch
50mm pivoting tow eye

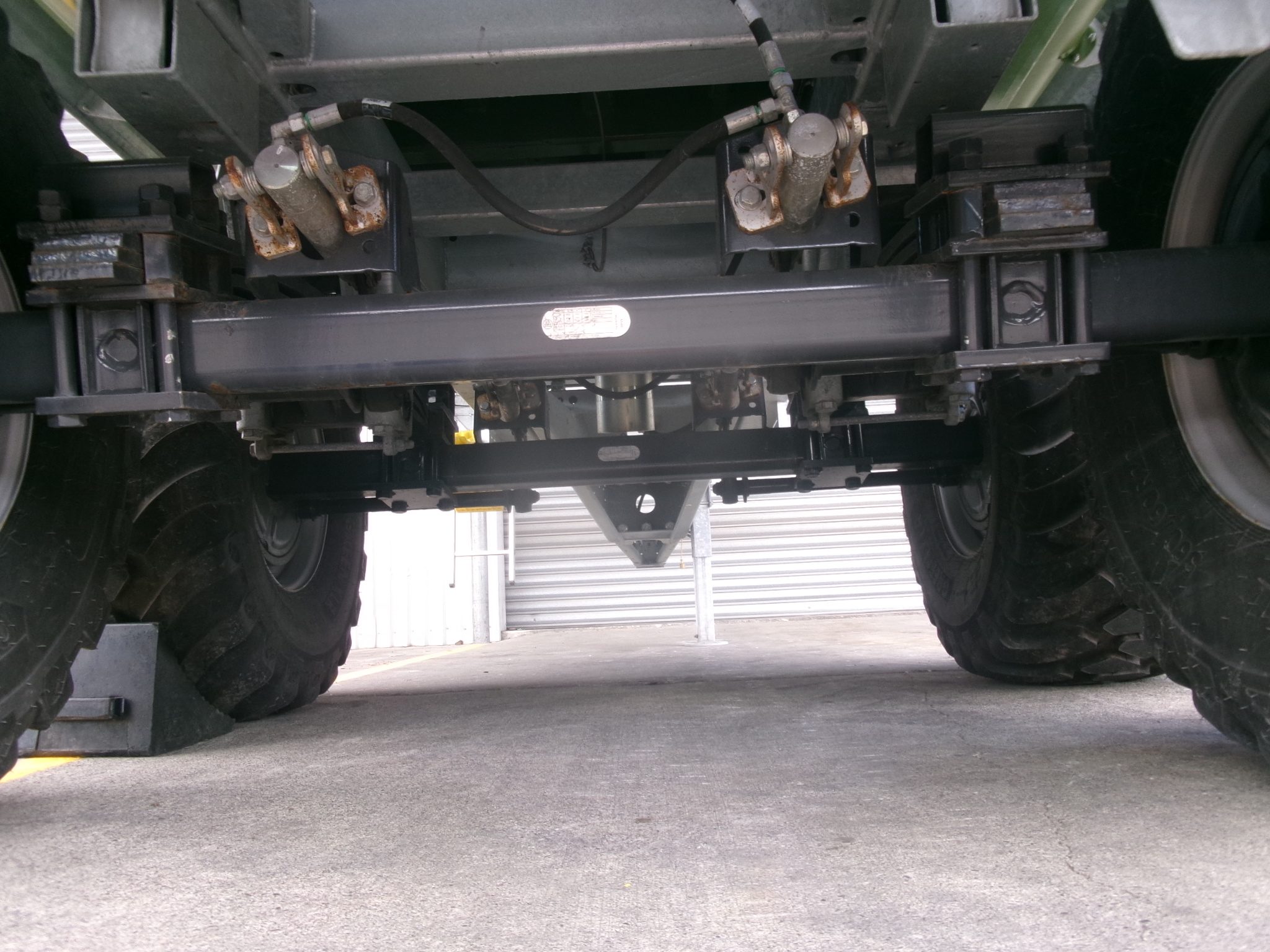

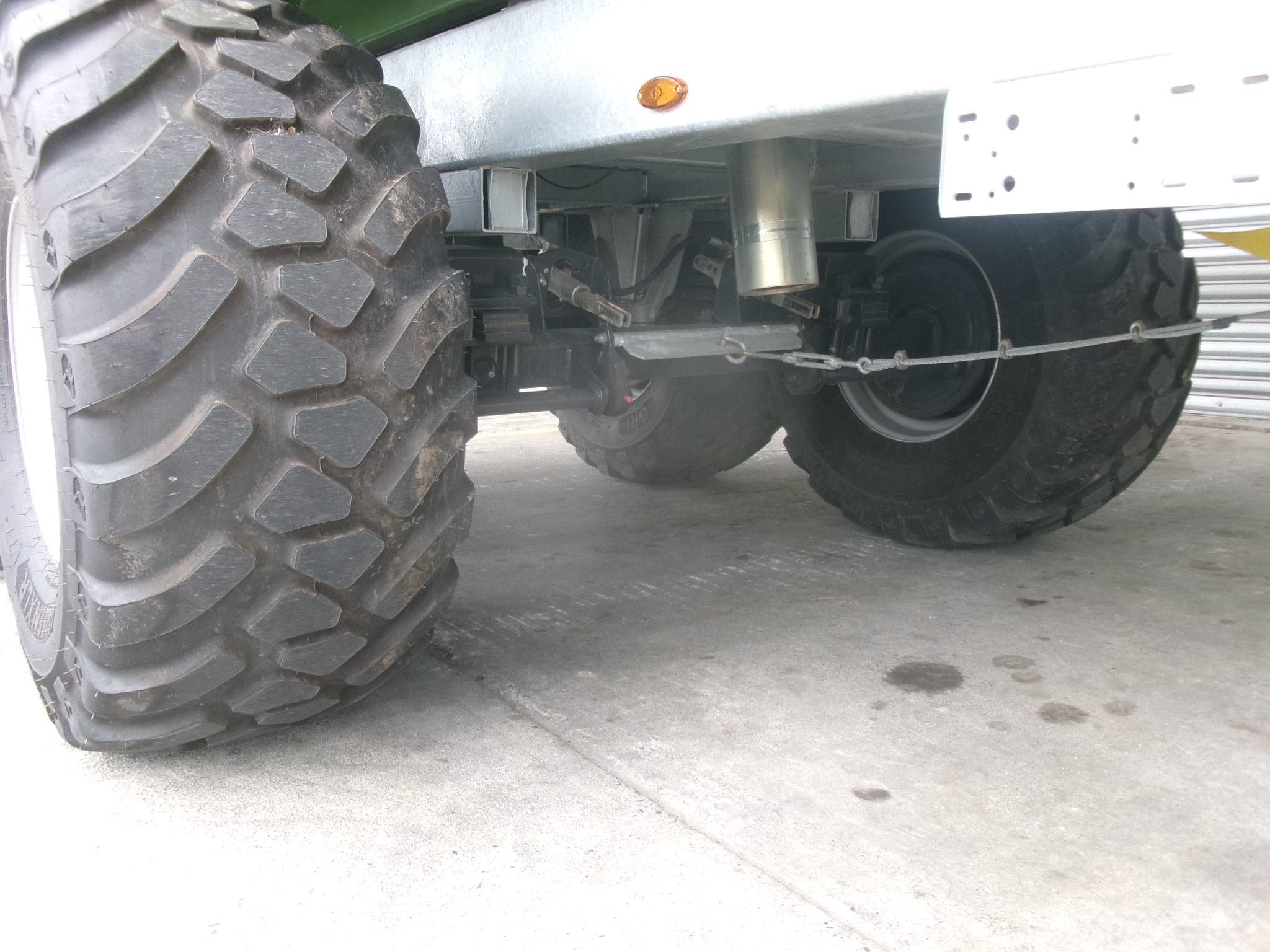

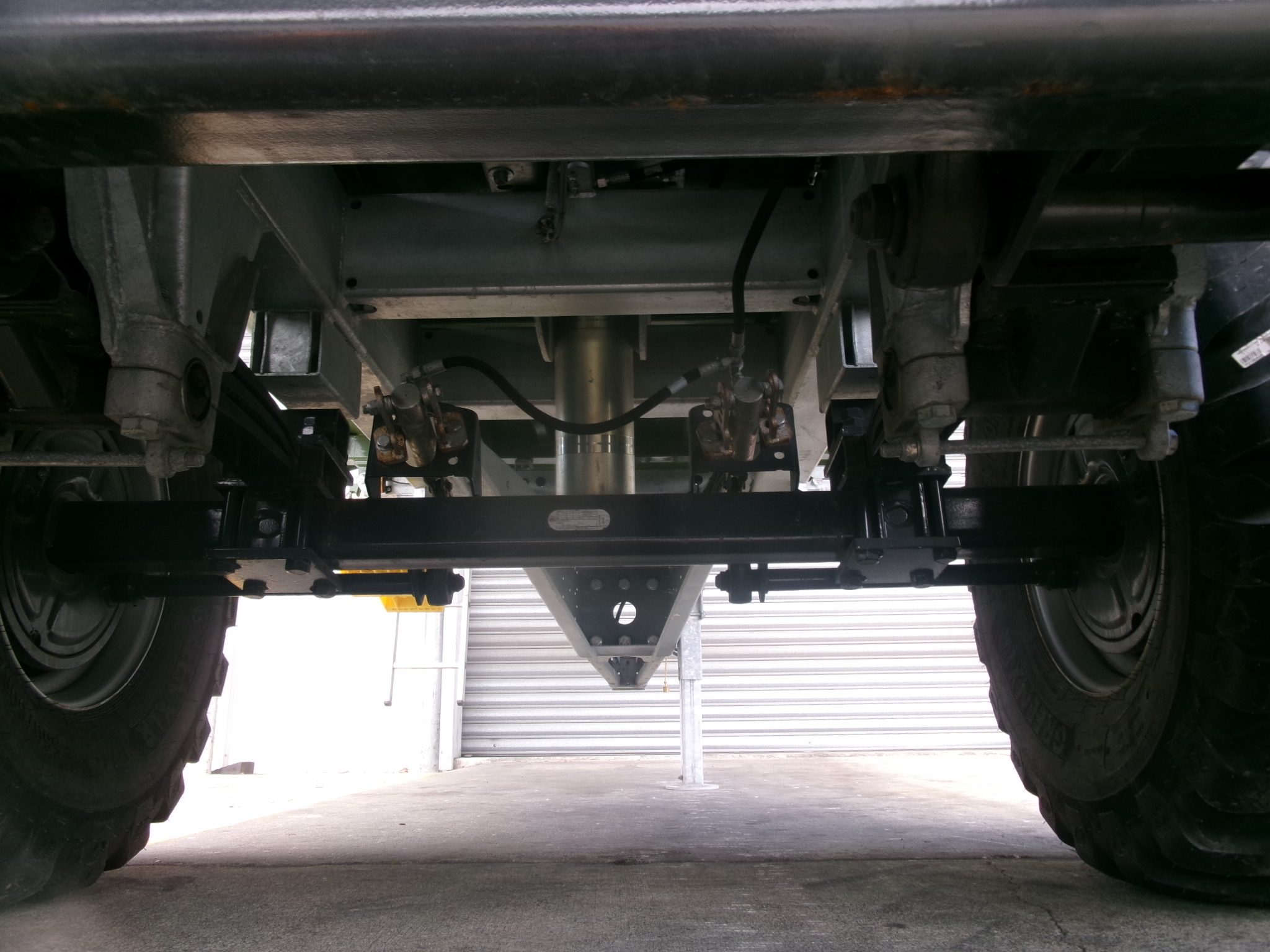

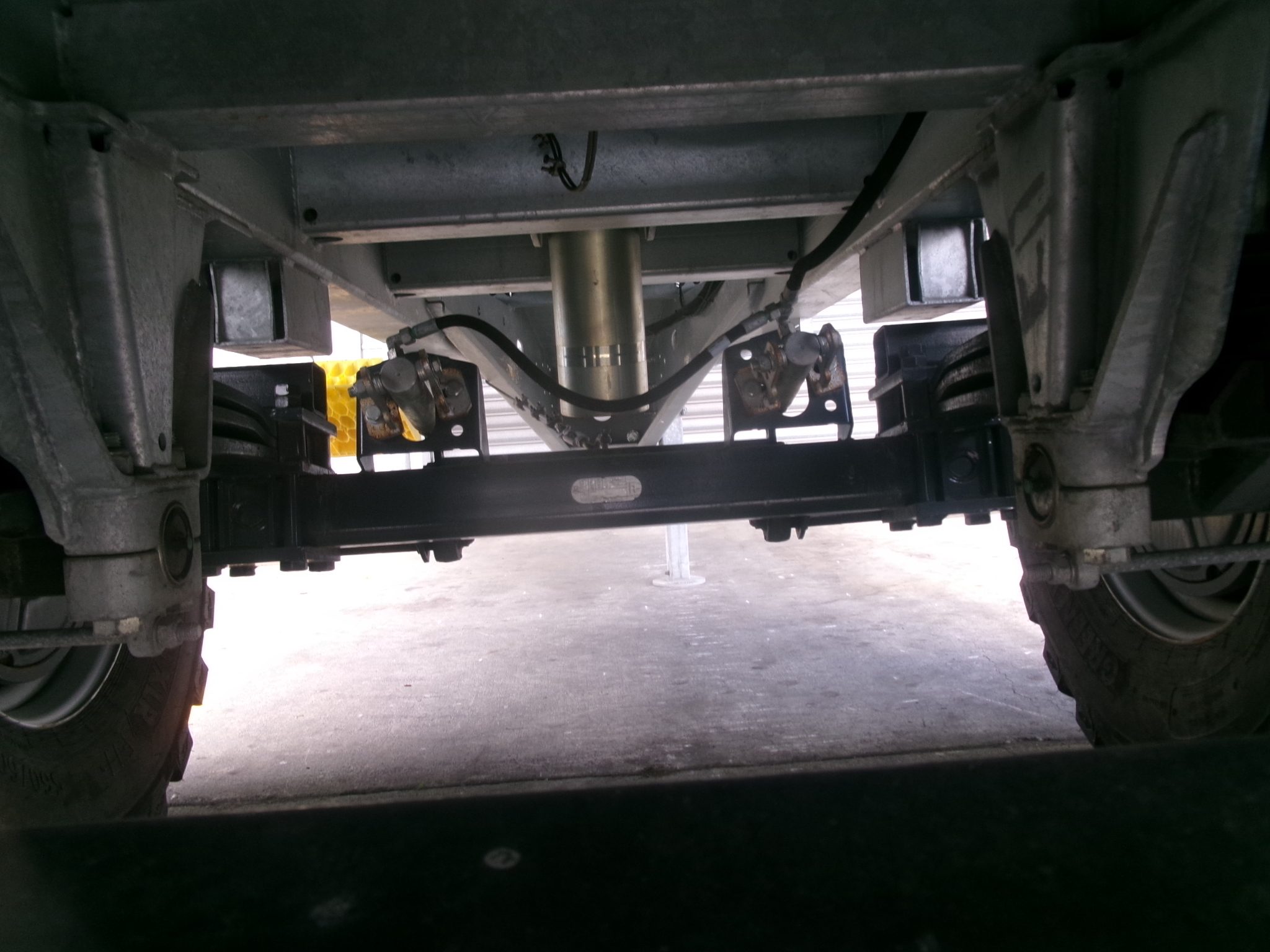

Axle version 400 x 120, brake drums BPW
2 hydraulic brake axles, both rigid

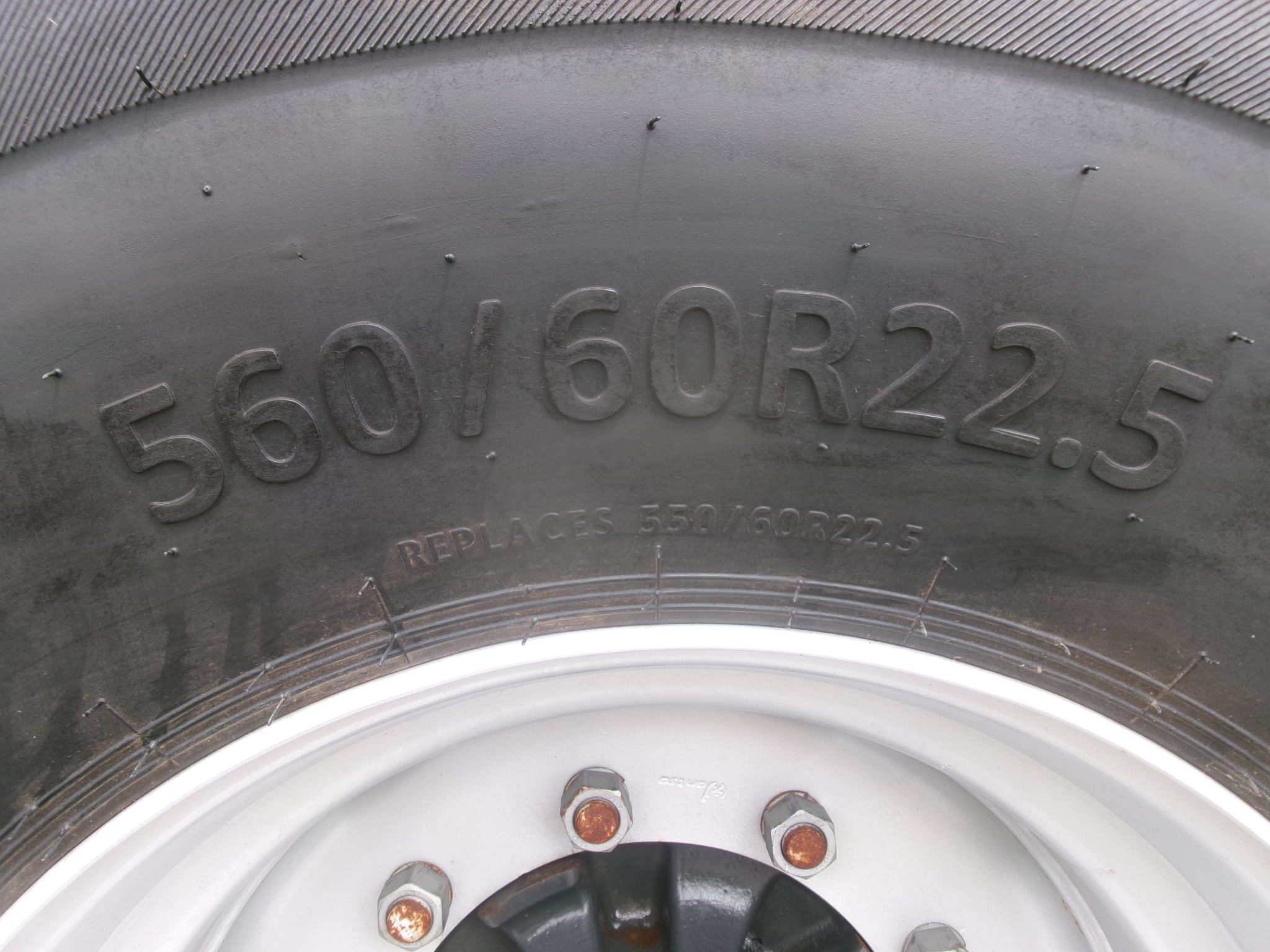

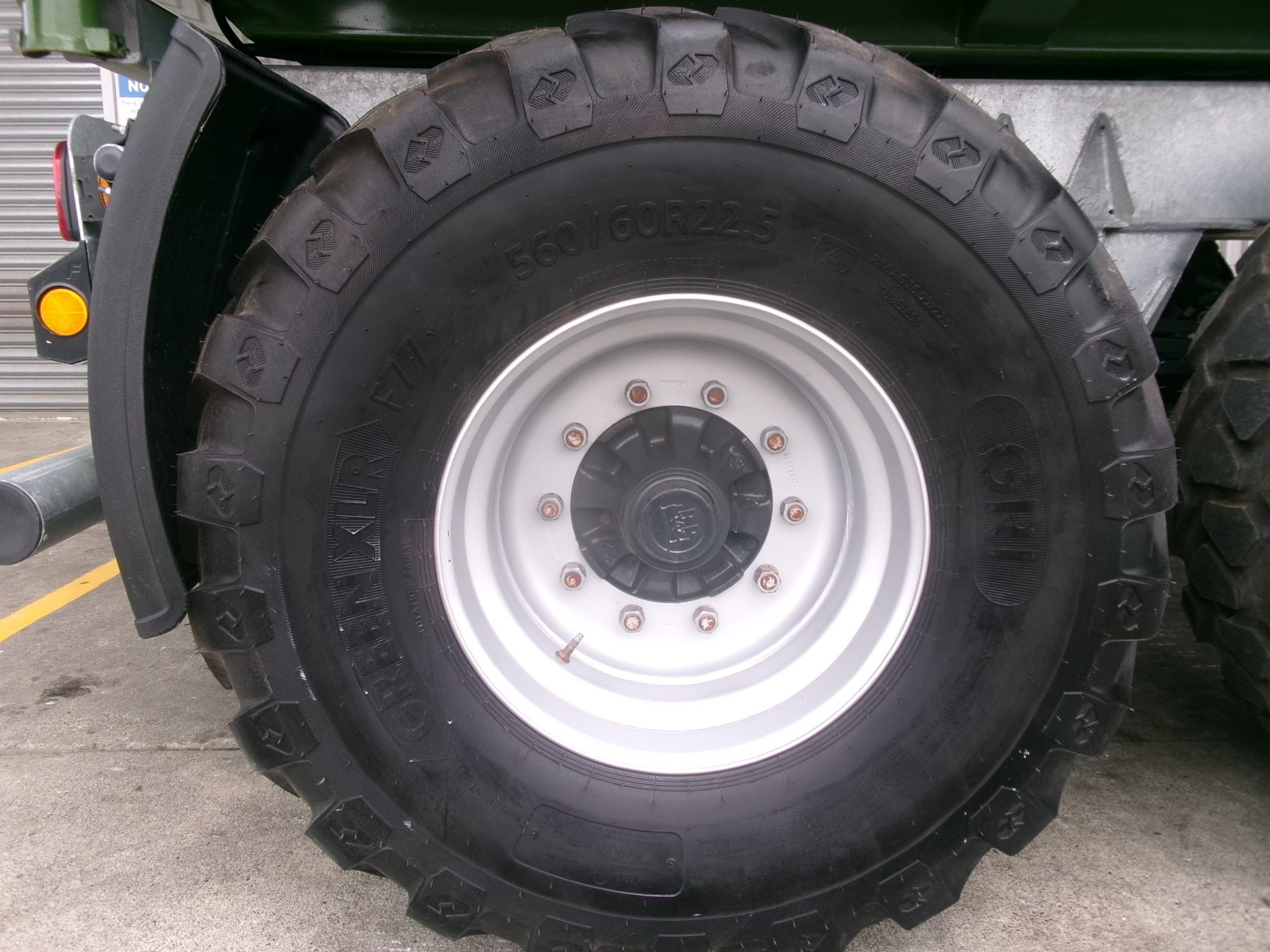

Tyres 560/60 R22.5
Mudguard, underride guard and side marker lights
Hydraulic support foot

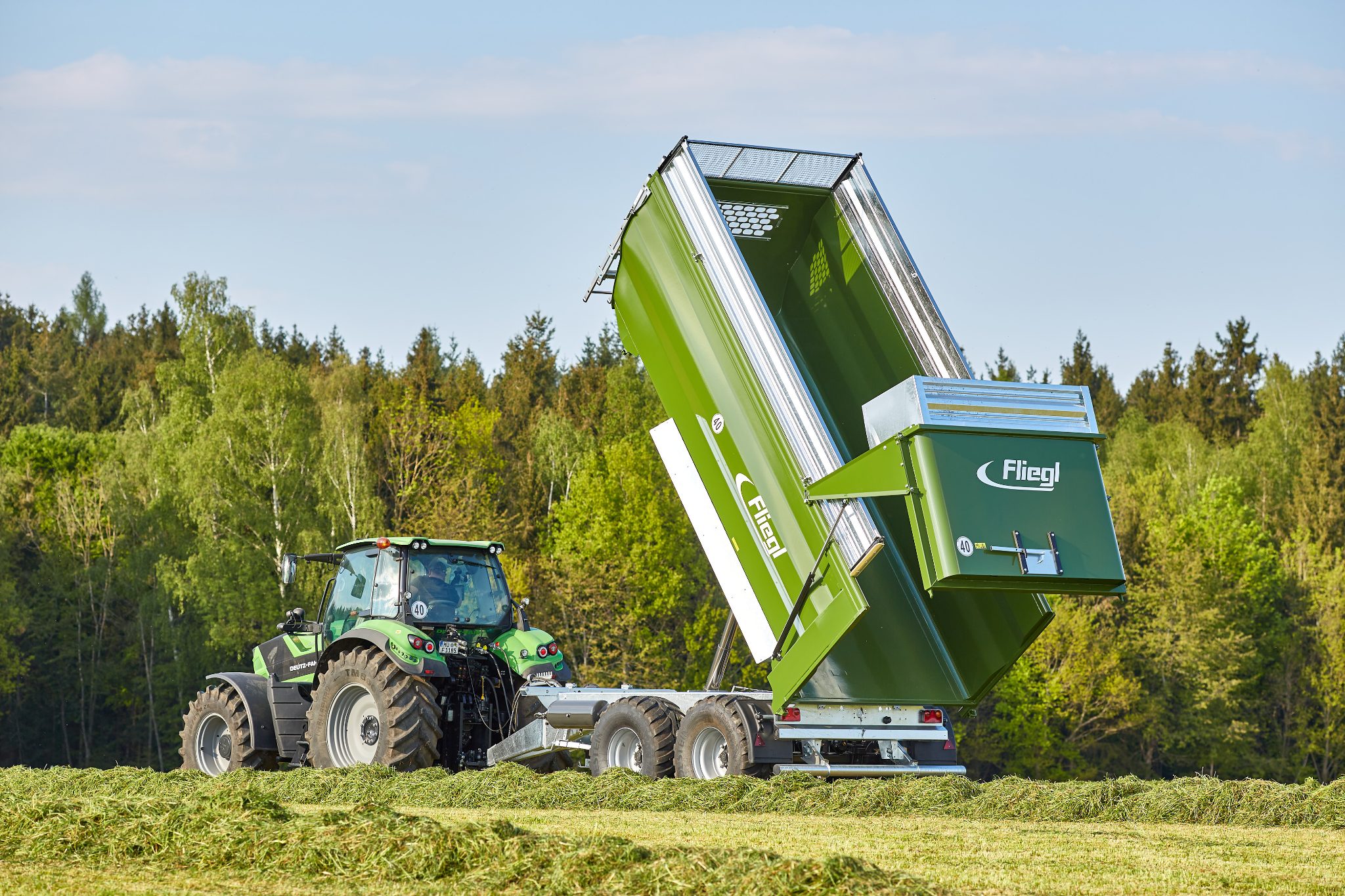

Tipping cylinder 2150mm with limit switch
2 five-chamber lights 12V with 7-pin plug and impact-resistant glass
Stop valve
500mm galvanised steel silage extensions (not grain tight)

Optional auto silage cover for $7900 + gst
