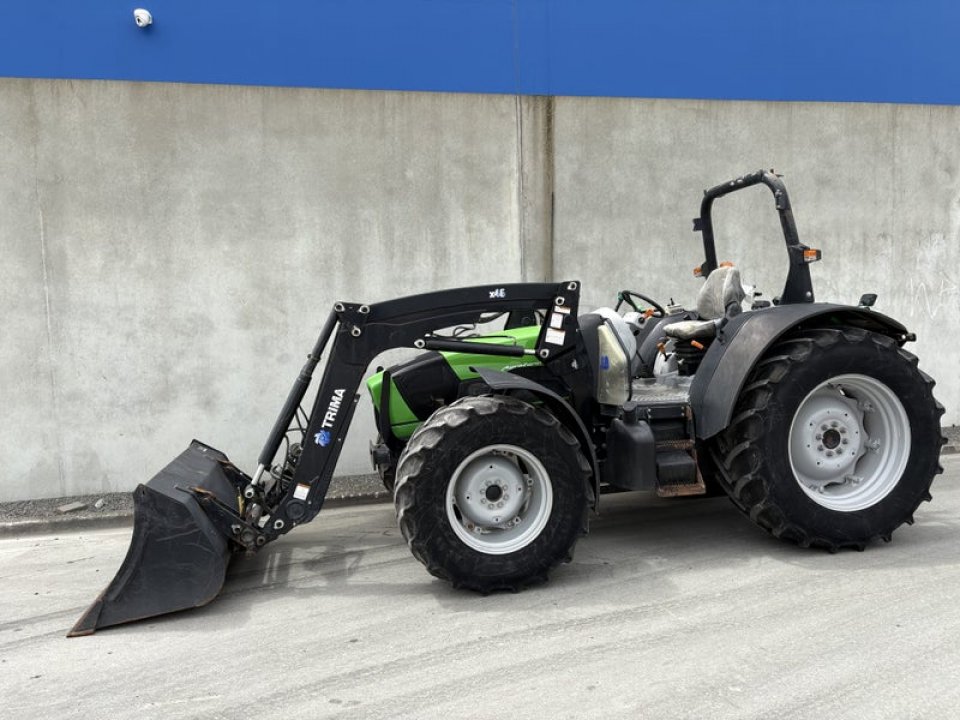

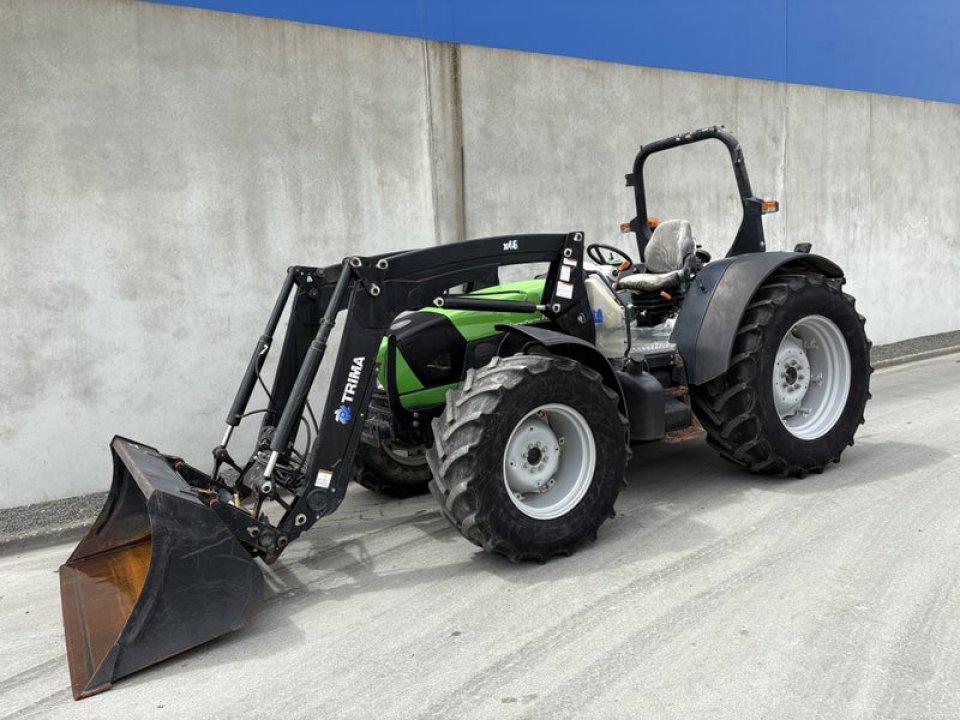

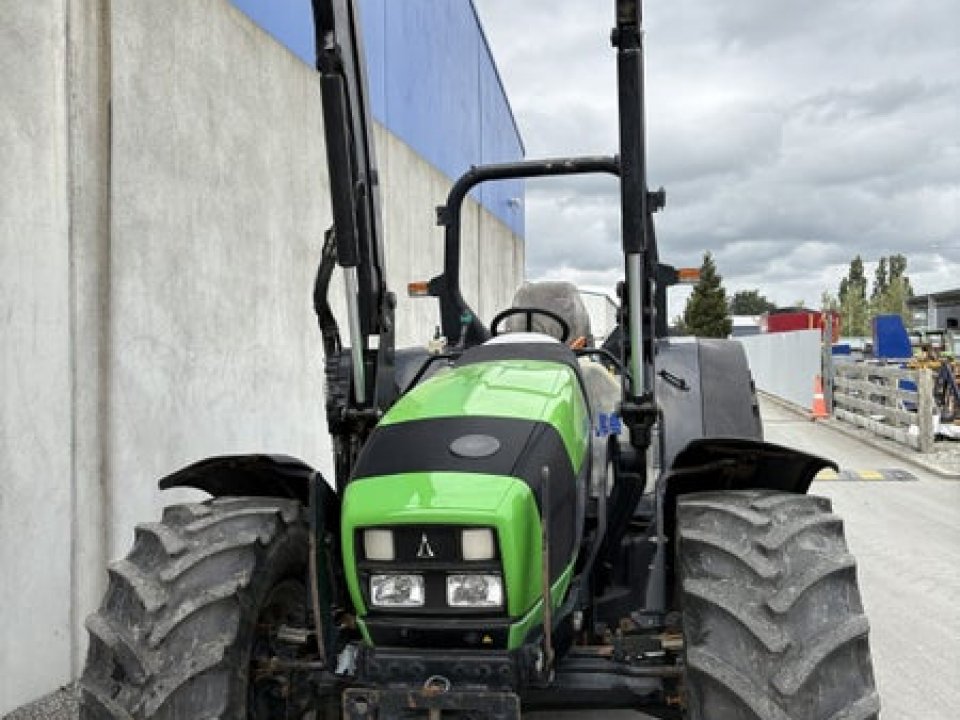

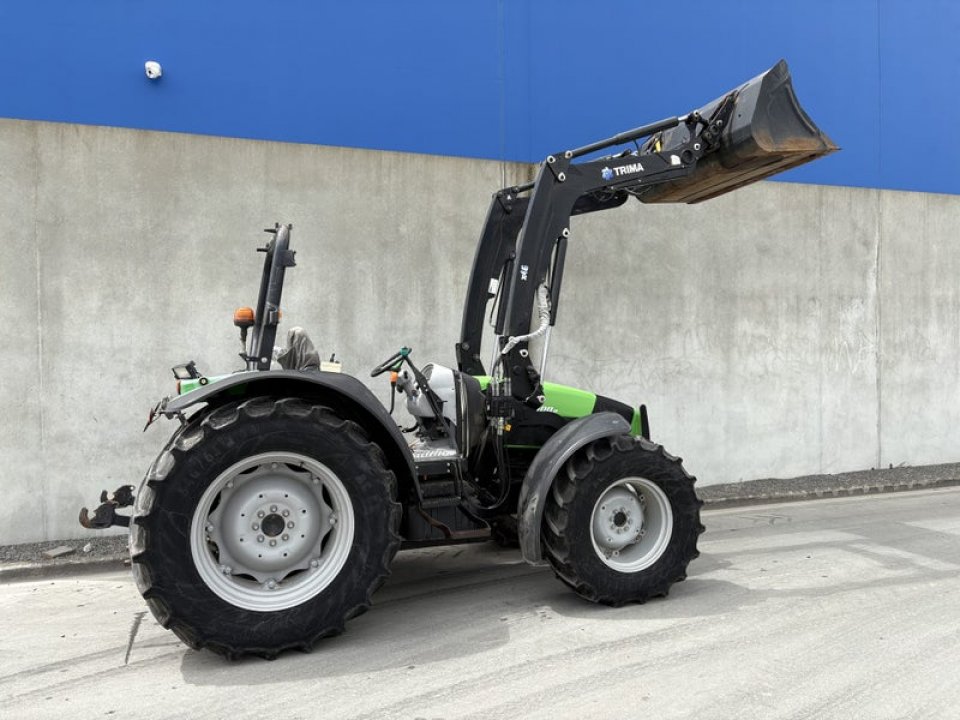

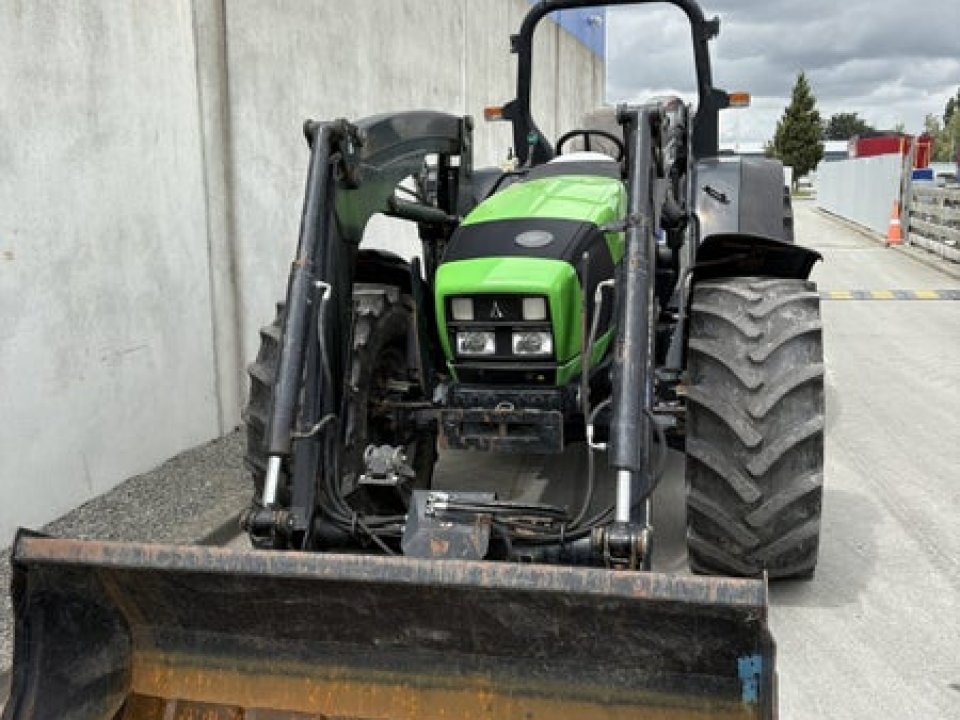

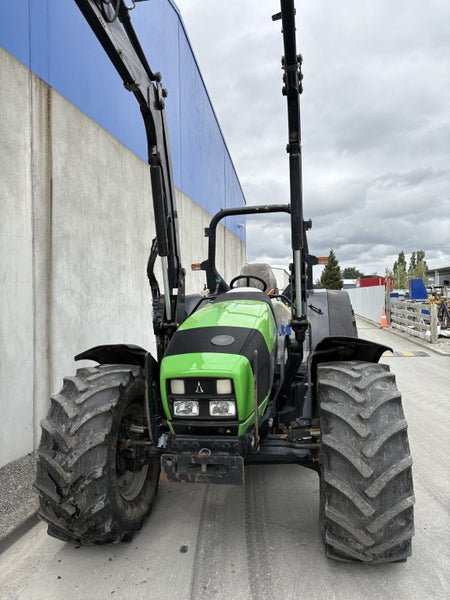

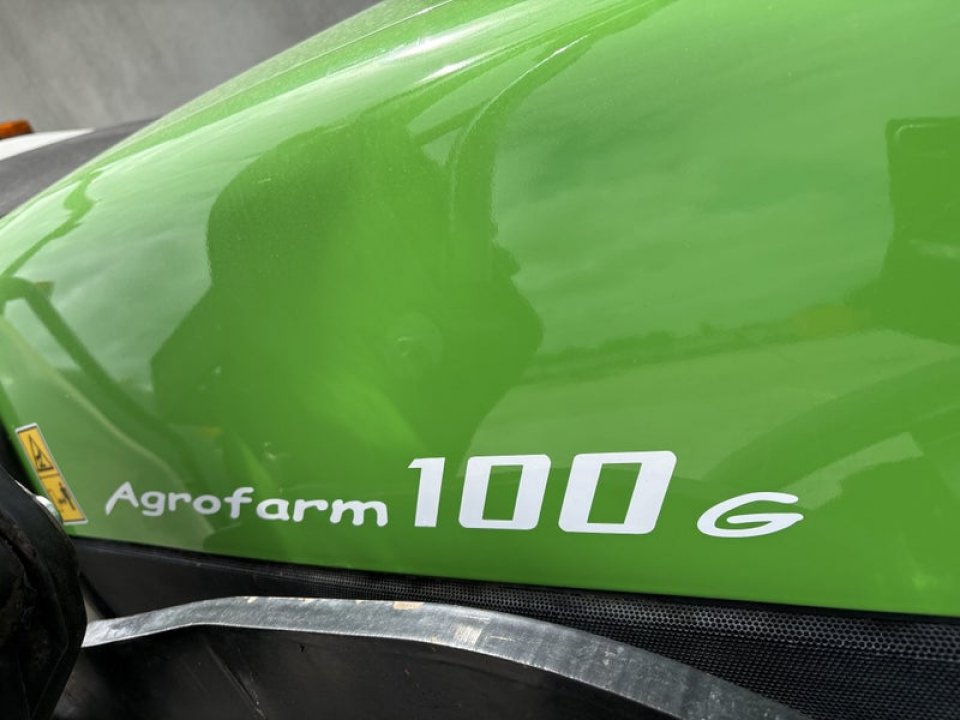

Deutz-Fahr Agrofarm Deutz Agrofarm 100

Engine -SDF 1000 Series Tier 1 Diesel Engine, 4 Cyl/4000cc Turbocharged
Liquid/Oil Cooled
Individual Bosch Injector Pumps
Mechanically Governed 96 Hp (70.6 Kw)@ 2350 rpm (2005/25/CE)Torque 342Nm @1400 rpm
Side Vertical Exhaust
150lt Fuel Capacity
Transmission
40/40 Forward/Reverse Gears
4 Range/5 Gear, 2 Speed Powershift
Creep Set Standard
Gear Levers Located Right Hand Side
1.48 to 40 KPH
Wet Clutch Powershuttle
Comfort Clutch
Four Wheel Drive (4WD) Mechanically Engaged
4 Wheel Independent Braking
100% Front & Rear Diff Lock-Elec/Hyd Engaged
40 km/h Road Speed
PTO - Independent Rear PTO-Elec/Hyd Engaged
4 Speed PTO (540-540E-1000-1000E )
Adjustable Radial Wheel Equipment
480-65R24 Front -540-65R34 Rear Tyres
55 Degree Steering Angle
Dynamic Front Fenders
Front Weight Frame
Rear Fender Extensions
Toolbox
Operator Environment
2 Post Fixed ROPS Frame
Platform on Silent Block Mounts

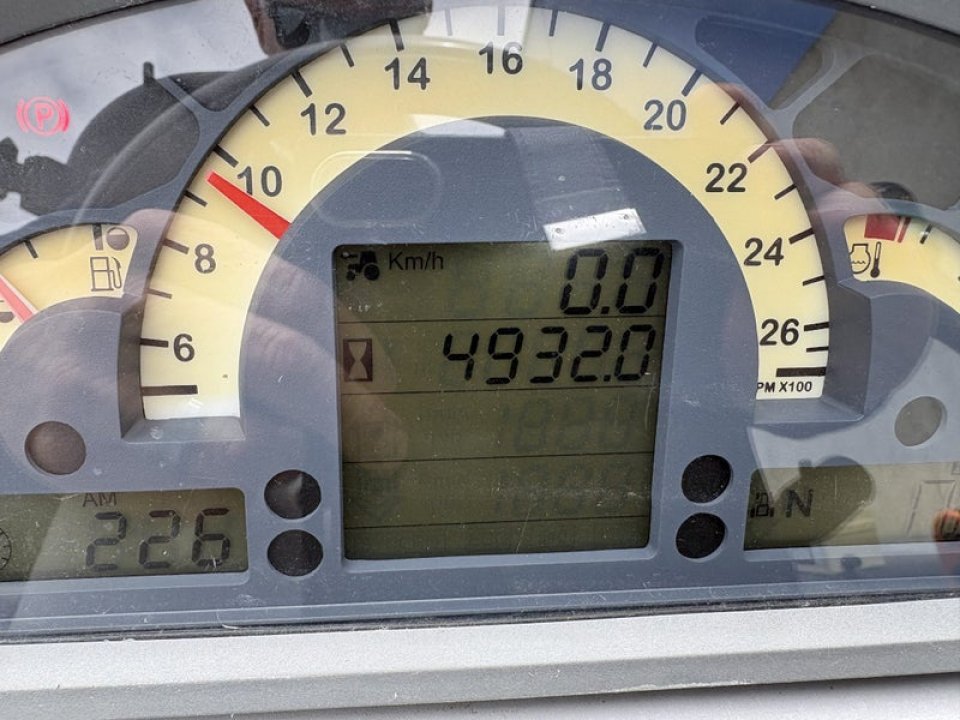

Multi Function Dashboard
Tilt and Telescope Steering Column
Comfort PVC Seat
Rear View Mirror
Rotating Beacon
Hyd/Linkage
Open Centre Hyd Pump System
56 l/min Hyd Pump
Separate Steering Pump
2 Sets of Remotes (Detent, Spring Return)

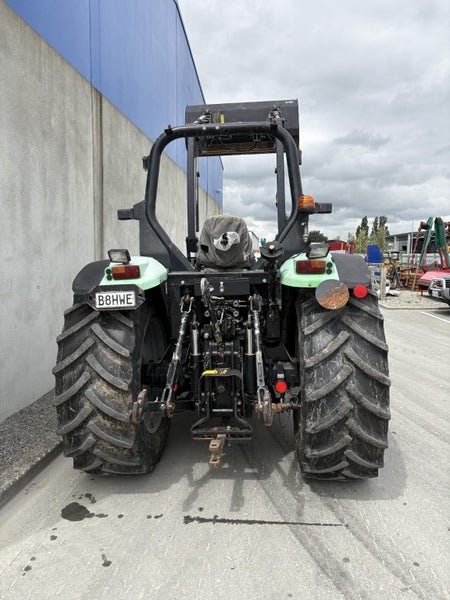

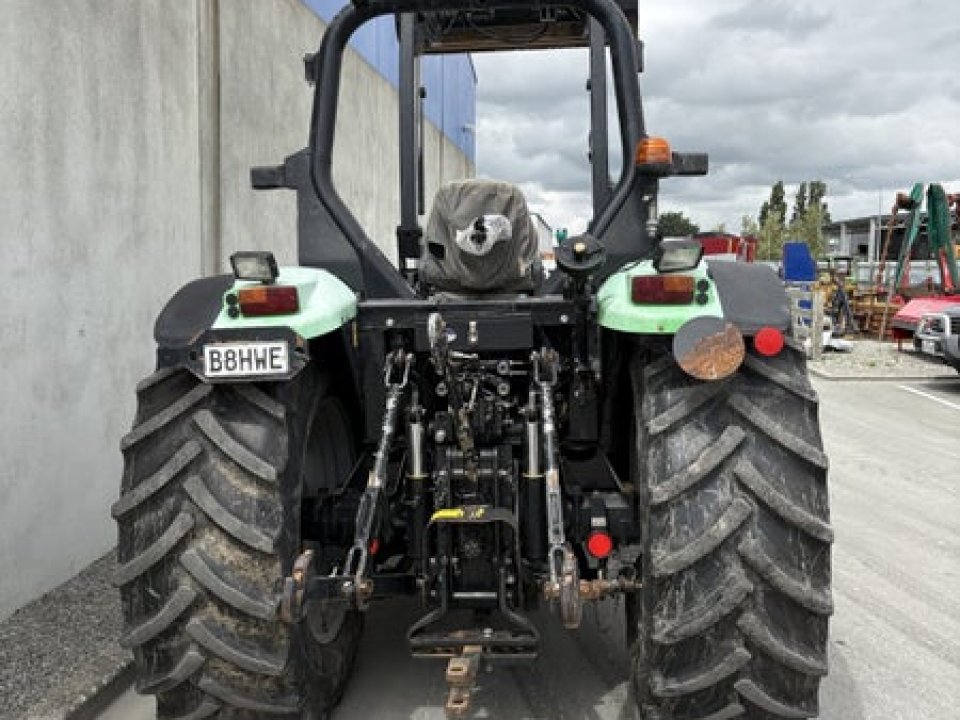

Mechanical Three Point Linkage
Position & Draft Control Settings
Cat 2 Hook Ends
External Rear Hitch Control
4200 Kg Lift Capacity
Front Weight Frame
Swinging Drawbar
Weights & Dimensions -Wheelbase 2340 mm ,Overall Length 3950 mm ,Total Weight 4120 kg ,Overall Height 2790 mm
